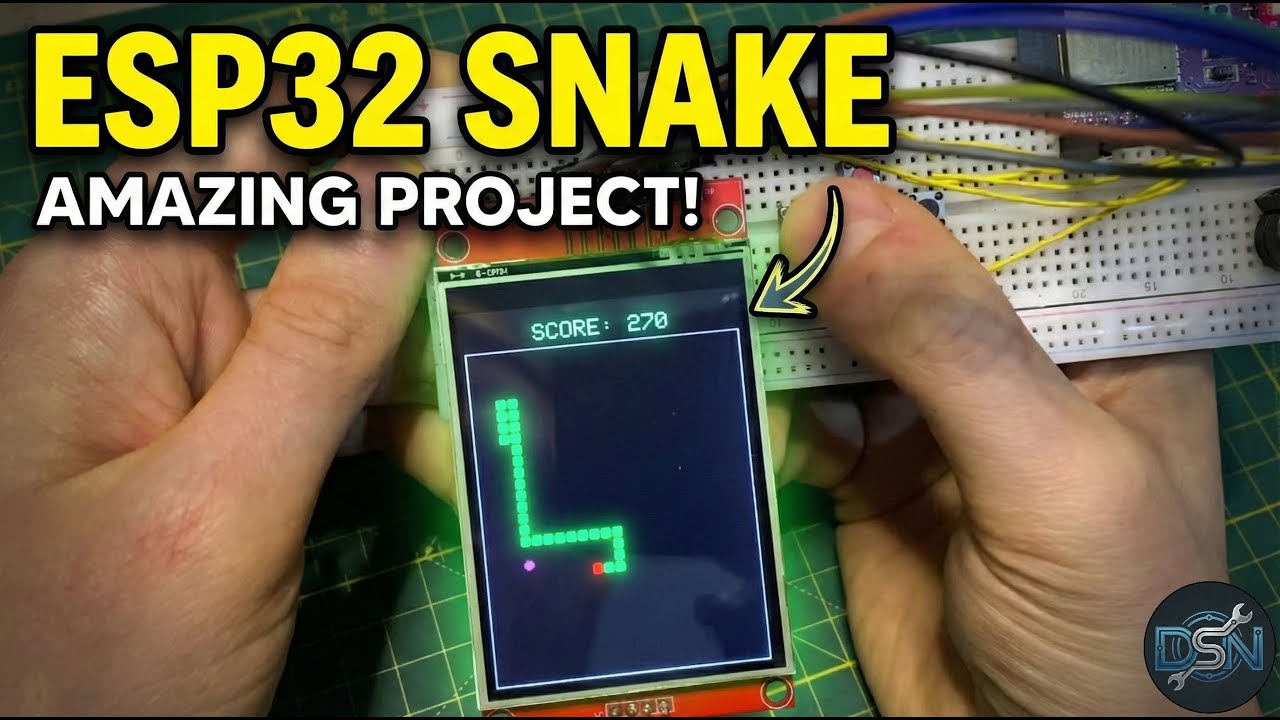

ESP32 Snake Game Tutorial - ILI9341 Display & Arduino IDE

Описание: In this episode, I will show you how to build a fully open-source Arduino-based Snake Game using the ESP32-S3 and an ILI9341 TFT display! 🐍

This project is the first prototype of my goal to build a portable handheld game console. It's easy to build, requires no soldering (breadboard friendly), and includes sound effects with a buzzer. I'll walk you through the wiring, library configuration (TFT_eSPI), and the code upload process.

📂 Project Source Code (GitHub): https://github.com/derdacavga/Esp32-S...
🔗 TFT_eSPI Tutorial :    • How to Use ILI9341 with TFT_eSPI Library o...

🛠️ Components Used:

ESP32-S3 Development Board
2.8" or 2.4" TFT LCD Display (ILI9341 Driver)
4x Tactile Buttons (Push buttons)
1x Passive Buzzer
Breadboard & Jumper Cables

🔌 Wiring / Pinout Guide:

Display (ILI9341):

VCC -- 3.3V | GND -- GND
CS -- GPIO 4 | RESET -- GPIO 9
DC -- GPIO 15 | MOSI -- GPIO 11
SCK -- GPIO 12 | MISO -- GPIO 13

Controls (Buttons):

UP -- GPIO 16 | DOWN -- GPIO 17
LEFT -- GPIO 18 | RIGHT -- GPIO 8

Audio:

Buzzer (+) -- GPIO 14

💡 Software Setup: We are using the Arduino IDE with the TFT_eSPI library. Make sure to edit the User_Setup.h file as shown in the video to match the pin configuration above.
