Upgrade Gotek (new Artery model) to FlashFloppy and mod installation
Автор: Tinkering Daemon
Загружено: 2021-06-12
Просмотров: 4804
Описание:
In this video I'll guide you step by step on how to install the FlashFloppy firmware into the Gotek floppy emulator, and the most useful hardware modifications: an OLED screen, a rotary encoder and a piezoelectric speaker.
The Gotek I'm using is the new model that comes with the Artery chipset instead of the STM32
Parts links (no affiliation):
Gotek: https://www.aliexpress.com/item/32287...
Rotary encoder: https://www.aliexpress.com/item/10050...
OLED screen: https://www.aliexpress.com/item/40011...
Speaker: https://www.aliexpress.com/item/32914...
Firmware and wiki:
Firmware: https://github.com/keirf/FlashFloppy
Hardware mods: https://github.com/keirf/FlashFloppy/...
Artery instructions: https://www.msx.org/forum/msx-talk/ha...
Chapters:
00:00 - Introduction
00:52 - Rotary encoders
01:12 - Desoldering the rotary encoders
01:13 - [MUSIC]
01:56 - Measurements
02:47 - [MUSIC] Adventures - A Himitsu
02:49 - Soldering headers to PCB
04:41 - PCB overview
05:35 - [MUSIC] Baribal & Pold - Lockdown
05:36 - Soldering headers to screens
06:15 - Flashing FlashFloppy firmware
15:31 - [MUSIC] Baribal & Pold - Lockdown

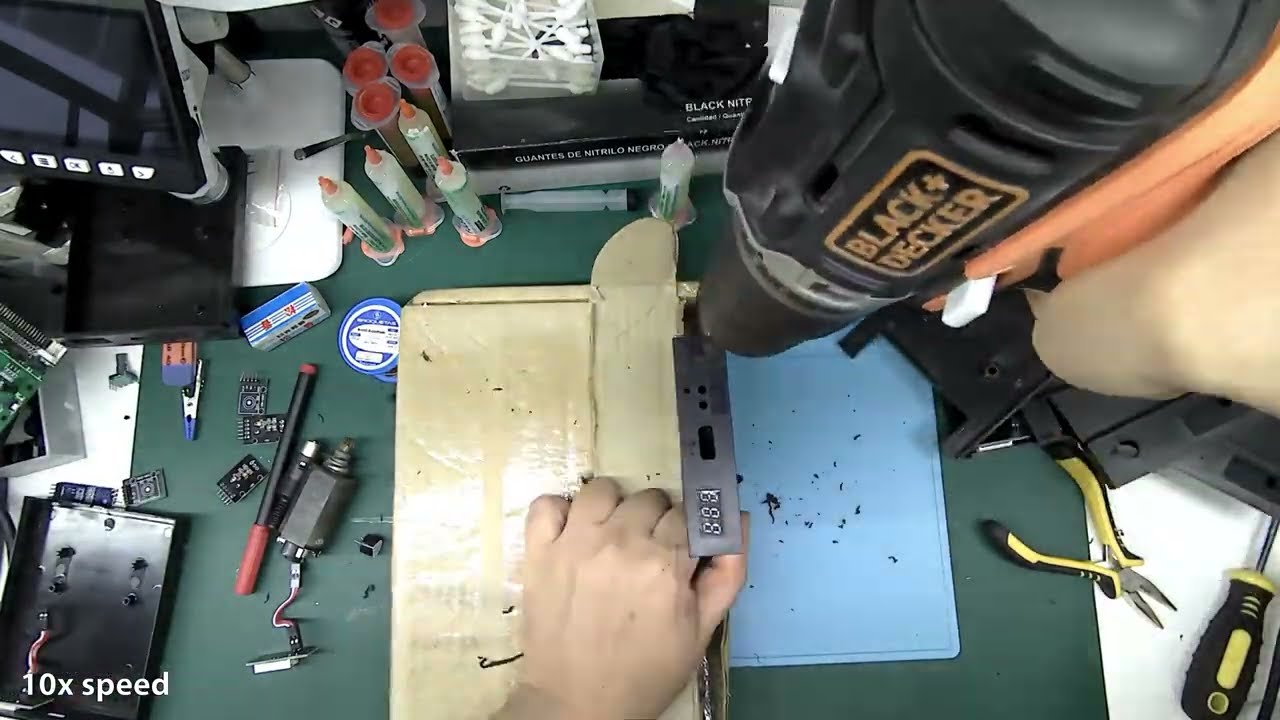

15:32 - Drilling holes in the case
17:35 - [MUSIC] Ikson - To You
15:32 - Drilling holes in the case (continued...)
19:48 - Assembly overview
22:16 - Testing after assembly finished
