Stratasys Academy | F770 3D Printer: Z Motor Removal and Installation

Описание: Learn how to safely remove and install the Z motor on the F770 printer.
This step-by-step guide ensures proper handling and reassembly for both the left and right Z motors.

🛠️ Overview:
This video demonstrates the removal and installation process for the Z motor on an F770 printer.
Follow the instructions to safely disconnect cables, remove the Z motor, and reinstall it with the correct torque specifications.


🔑 Key Steps Covered:

• Z Motor Removal:
Power off the printer and open the electronics bay and side access doors.
Disconnect the Z motor cables and release cable ties.
Loosen the Z motor tension bracket screws and remove the Z drive belt.
Detach the Z motor by unscrewing the mounting screws.

• Z Motor Installation:

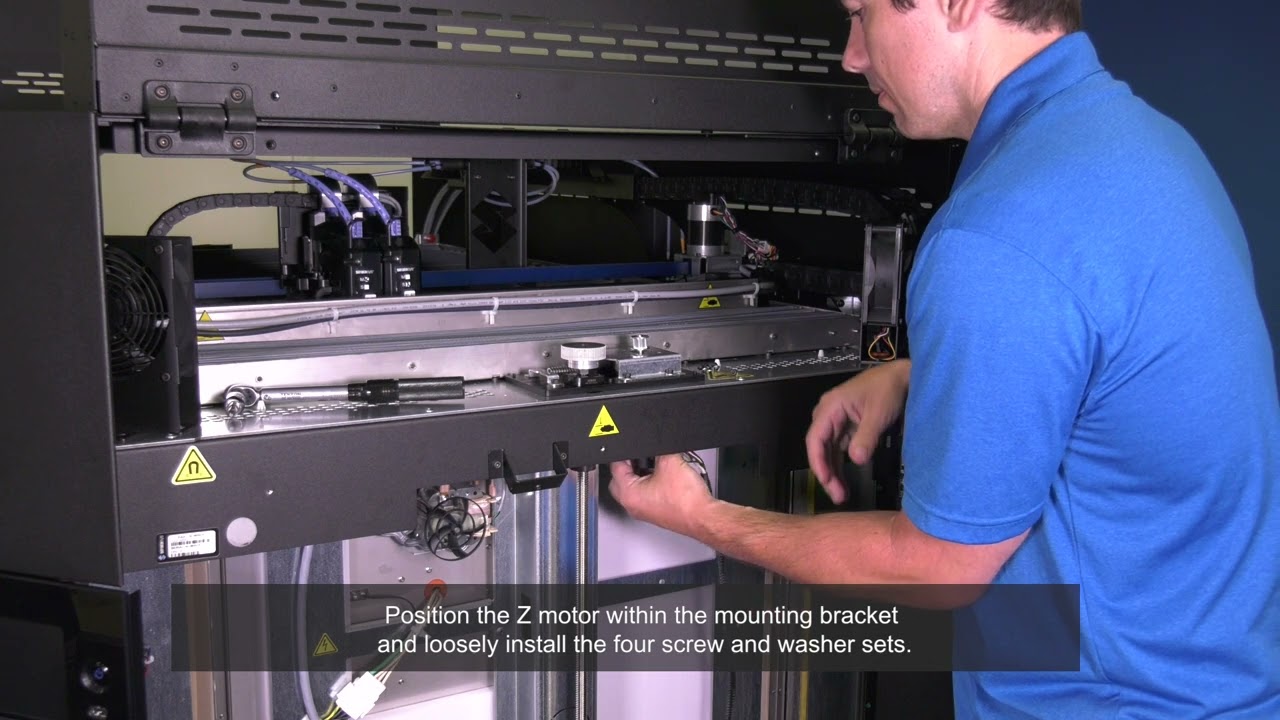

Position the Z motor within the bracket and secure it with screws torqued to 21 in-lbs.
Reinstall the Z drive belt and reconnect the cables to the I/O board set.
Route and secure cables using reusable cable ties and close the access doors.
