LED Flip Flop Circuit With 7 segment display
Автор: YS Electric
Загружено: 2021-09-24
Просмотров: 955
Описание:
Hello Friends , Welcome to YS Electric
In this video, I made led flip flop circuit with 7segment display..
Flip flop led with BC557 circuit.............
Video link: • FLIP FLOP LED with BC557 transistor//on Br...
Other videos....

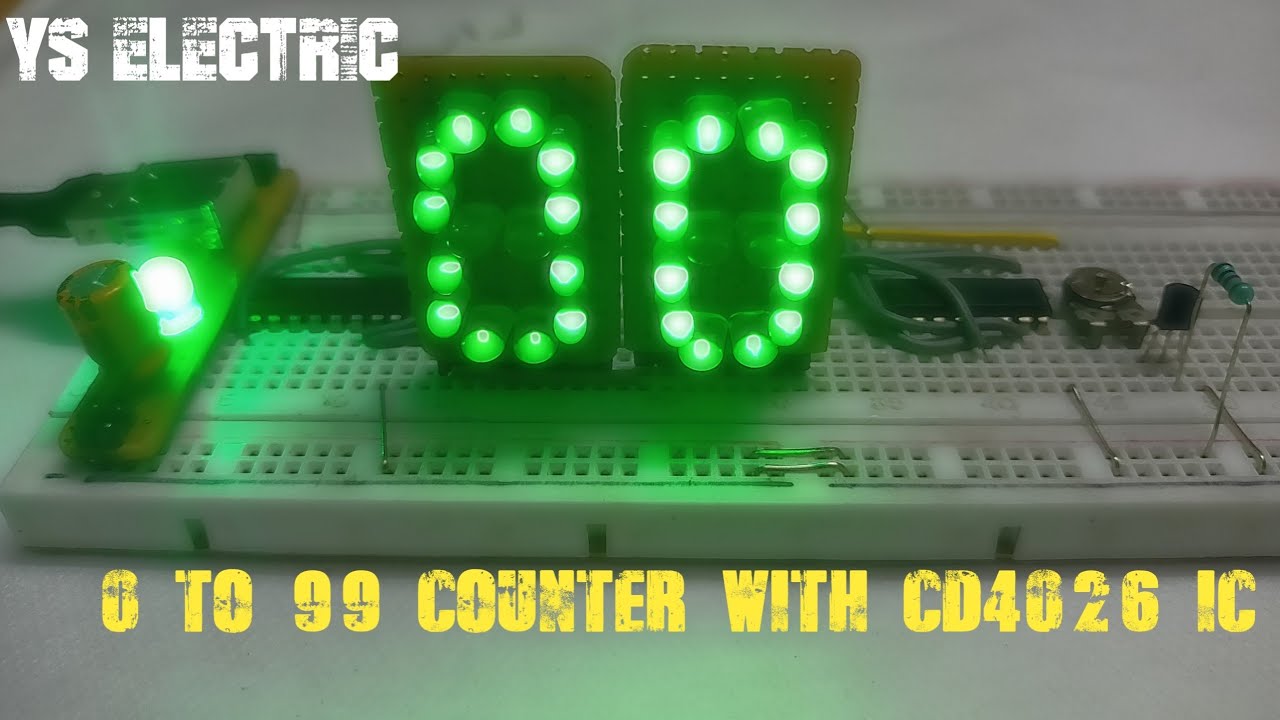

• 0-9 Digit counter //CD4026 IC with 7 segme...
• 0-99 digit counter circuit//CD 4026 ic 7 s...
Components Required :
•Breadboard
•CD4026 ic x2
•7 segment display(common cathod)x2
•220 ohm resistors x 4,1k resistor x 2
•10k ohm resistors x2
•green, and red LEDs
•BC557 transistors x2
•100uf capacitors x2
•connecting wires ....
Buy components From:
Amazon: https://www.amazon.in/dp/B00N23YNA0/r...
CD 4026 ic ::_____https://www.amazon.in/dp/B082B58RZJ/r...
7 segment display ::_____https://www.amazon.in/dp/B011KPYRHK/r...
For more videos like this please subscribe,
Share, and like this video
...........Thank you..............
