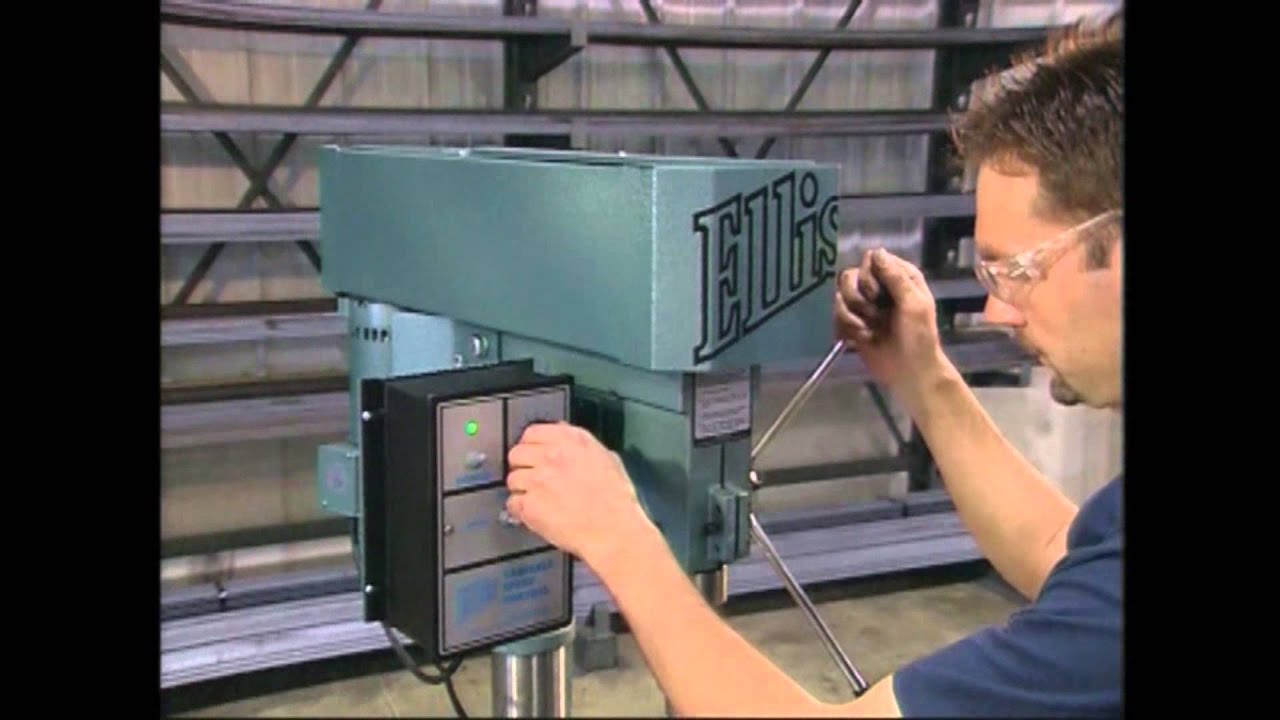

Ellis 9400 Drill Press Demo - Trick-Tools.com

Описание: See it here: https://www.trick-tools.com/Ellis-940...

The Ellis 9400 Drill Press is one of the most versatile drill presses available. With standard features such as power down-feed, variable frequency drive speed control, and instantaneous reverse for tapping; the value is unsurpassed. The Ellis drill press is built to be extremely durable, featuring a 4-inch diameter column, 3-inch diameter quill, and a 2 HP motor. The movable table, as well as the base, has 1/2 inch t-slots for flexibility of fixturing or vise mounting options.

Drill chuck sold separately. See our website for ball-bearing chuck.

Note: 220 voltage selection can be specially ordered from the factory with an average lead time of 8 weeks.

Warranty:

1 year manufacturer's warranty

•Motor: 2 hp, 110 volt
•Number of Speeds: inverter driven variable
•Spindle Speed(s)Range: 0-1200 rpm
•Drills To Center (inches): 18.125
•Drilling Capacity (inches): steel 1-1/16, cast iron 1-1/4
•Tapping Capacity (inches): 3/4
•Spindle Taper: Morse no. 3
•Quill Diameter (inches): 3
•Column Diameter (inches): 4
•Spindle Travel (inches): 5.375
•Spindle To Table Max (inches): 27.25
•Spindle To Base (inches): 46.25
•Table Size (inches): 15.875
•Base (inches): 16.375 x 26.625
•Weight (pounds): 675
•Dimensions (LxWxH): 69.5 x 20 x 29
