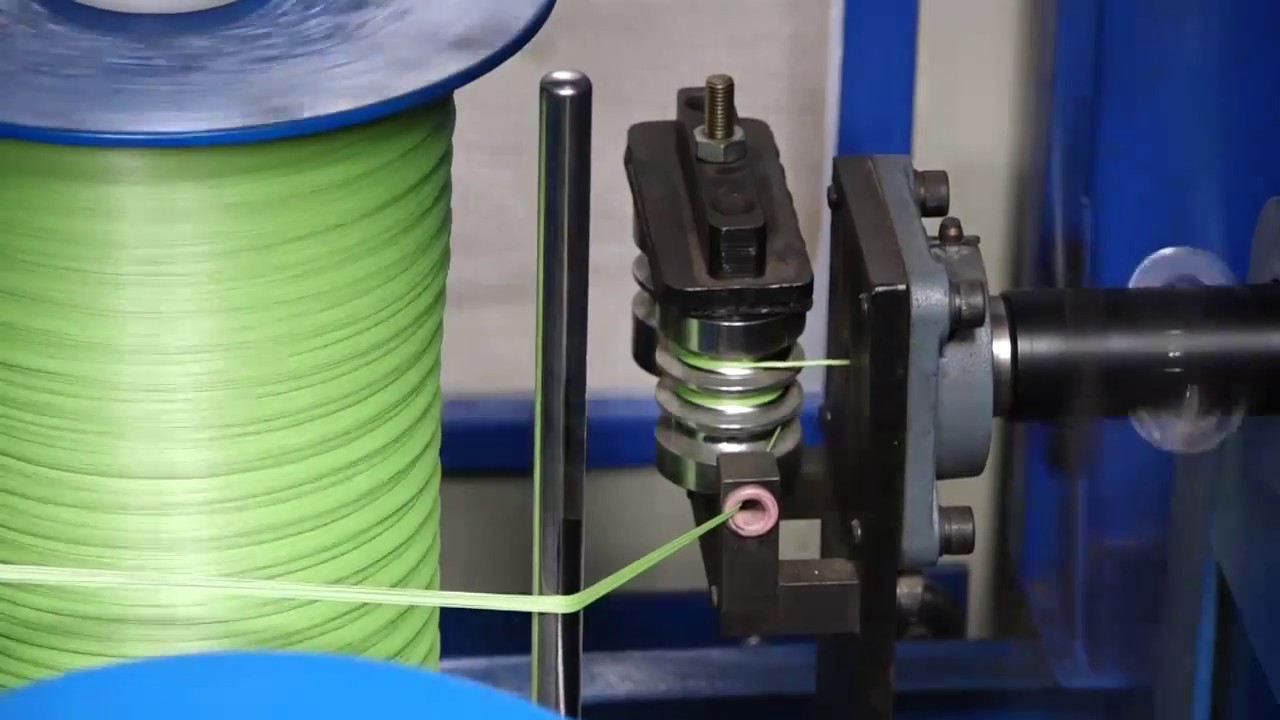

PP ROPE MAKING MACHINE 2MM TO 6MM MOB: +91-7490037888
Автор: SIGMA PLASTOMECH
Загружено: 2017-04-24
Просмотров: 12012
Описание:
SPECIFECATION
Rope Range : 2mm TO 6mm
Model : SSE / 2T6-3
Strand Flyer RPM : Max. 2000
Rope Flyer RPM : Max. 1000
Rope Lay : Z
Twist Range : 40 to 130 TPM
Twist Per Minute : Twice The Flyer Speed
Pay Of Package Size : 250mm Diameter x 250mm Traverse
Take Up Capacity : 11 kgs ( Approx).
Dimension ( LxWxH) : 12’6” X 4’9” X 5’
Motor KW : 5.5 KW
Weight : 1400 kg. ( Approx).
KEY FEATURES
Extra Yarn Tension Arrangement to control the ballooning,
Power Transmission By Timing belt
Digital Length Counter Meter
Simple But Robust Design & Light Weight rotating parts,
Auto Stop after yarn breakage to control wastage,
Take up output on M.S. Bobbin.
User friendly Design,
OPTIONAL FEATURES
A.C. Frequency Drive,
Door Sensor
PRODUCTION CAPACITY (ON 100% EFFICIENCY) of
2mm to 6mm Rope Making Machine.
Rope Size (mm) Prod. (Kg/Hr.) TPM RPM(Max) Weight
Grm/Mtr
2 3.52 95 1400 2
3 6.93 85 1200 4.09
4 15.58 67.18 1200 7.27
5 25.70 53.03 1000 11.36
6 36.24 48.75 900 16.36
