ISO Metric Projections in Engineering Drawing_ Manual Drawing _ Example 02
Автор: Parimala Tutorials
Загружено: 2026-01-19
Просмотров: 15
Описание:
ISO metric Projection - Example 02 in Engineering Drawing in English - Manual Drawing.
Question 02:

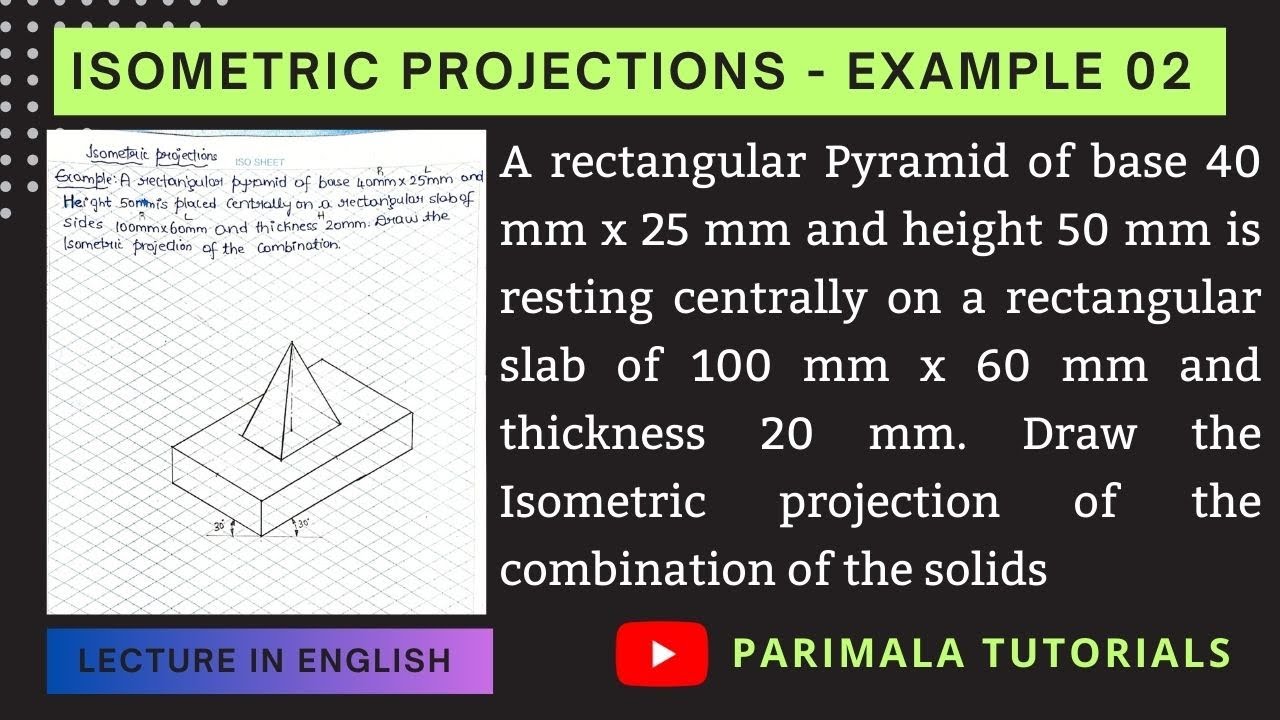

A rectangular Pyramid of base 40 mm x 25 mm and height 50 mm is resting centrally on a rectangular slab of 100 mm x 60 mm and thickness 20 mm. Draw the Isometric projection of the combination of the solids
Solid Edge Procedure: • ISO Metric Projections _ Solid Edge Tutori...
SolidWorks Procedure: • ISO Metric Projections _ SolidWorks Tutori...
Please watch the video till the end to clear all your doubts. KINDLY SUBSCRIBE TO OUR CHANNEL FOR REGULAR EDUCATIONAL VIDEOS.
