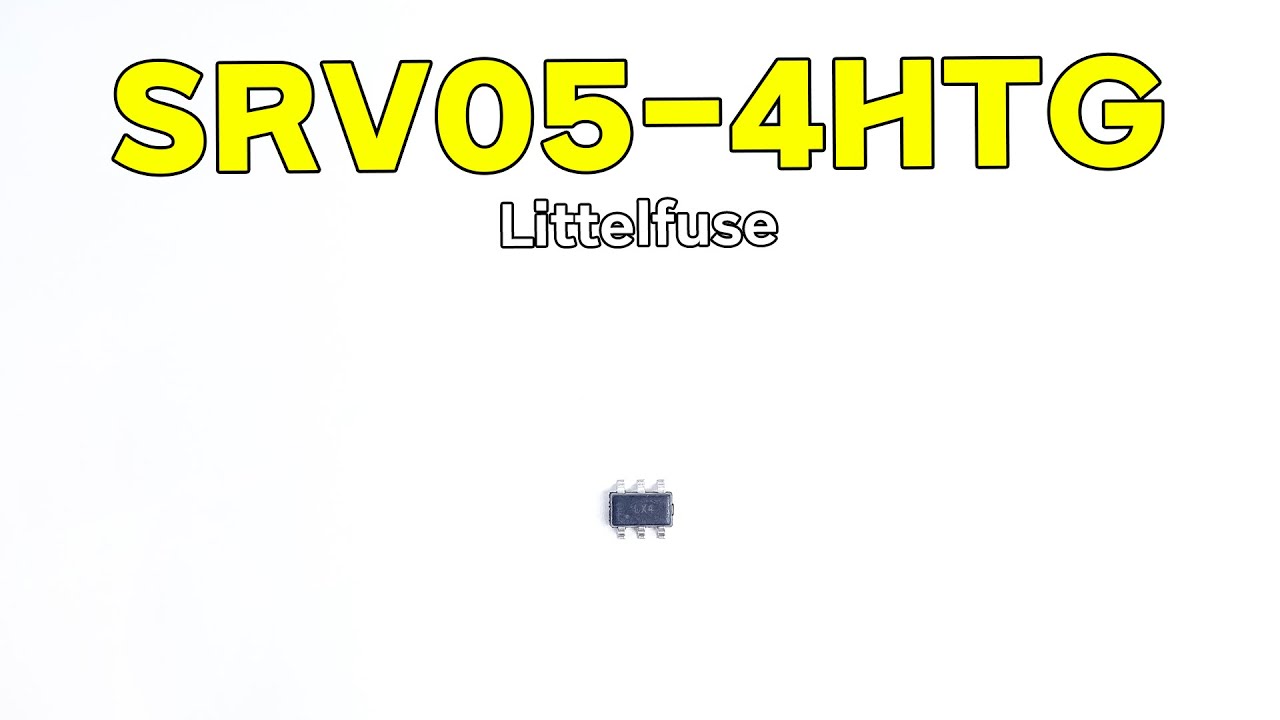

SRV05-4HTG - Littelfuse : SRV05 Series 6V 10A Diode Array

Описание: SRV05-4HTG - Littelfuse : SRV05 Series 6V 10A Diode Array
https://www.alldatasheet.com/datashee...

[Datasheet]
https://www.alldatasheet.com/datashee...
[View by Manufacturer]
https://www.alldatasheet.com/view.jsp...


▶ SRV05-4HTG Product details

[Description]
The SRV05 integrates low capacitance rail-to-rail diodes with an additional zener diode to protect each I/O pin against ESD and high surge events. This robust device can safely absorb surge current per IEC61000-4-5 (tP=8/20µs) without performance degradation and a minimum ±20kV ESD per IEC61000-4-2. Their very low loading capacitance also makes them ideal for protecting high speed signal pins.

[Features]
• AEC-Q101 qualified
• ESD, IEC 61000-4-2, ±20kV contact, ±30kV air
• EFT, IEC 61000-4-4, 40A (5/50ns)
• Lightning, IEC 61000-4-5 (2nd Edition), 10A (8/20μs)
• Low capacitance of 2pF (TYP) per I/O
• Low leakage current of 0.5μA (MAX) at 5V
• Small SOT23-6 (JEDEC MO-178) packaging

[Applications]
• LCD/PDP TVs
• Monitors
• Notebooks
• 10/100/1000 Ethernet
• Firewire
• Set Top Boxes
• Flat Panel Displays
• Portable Medical
