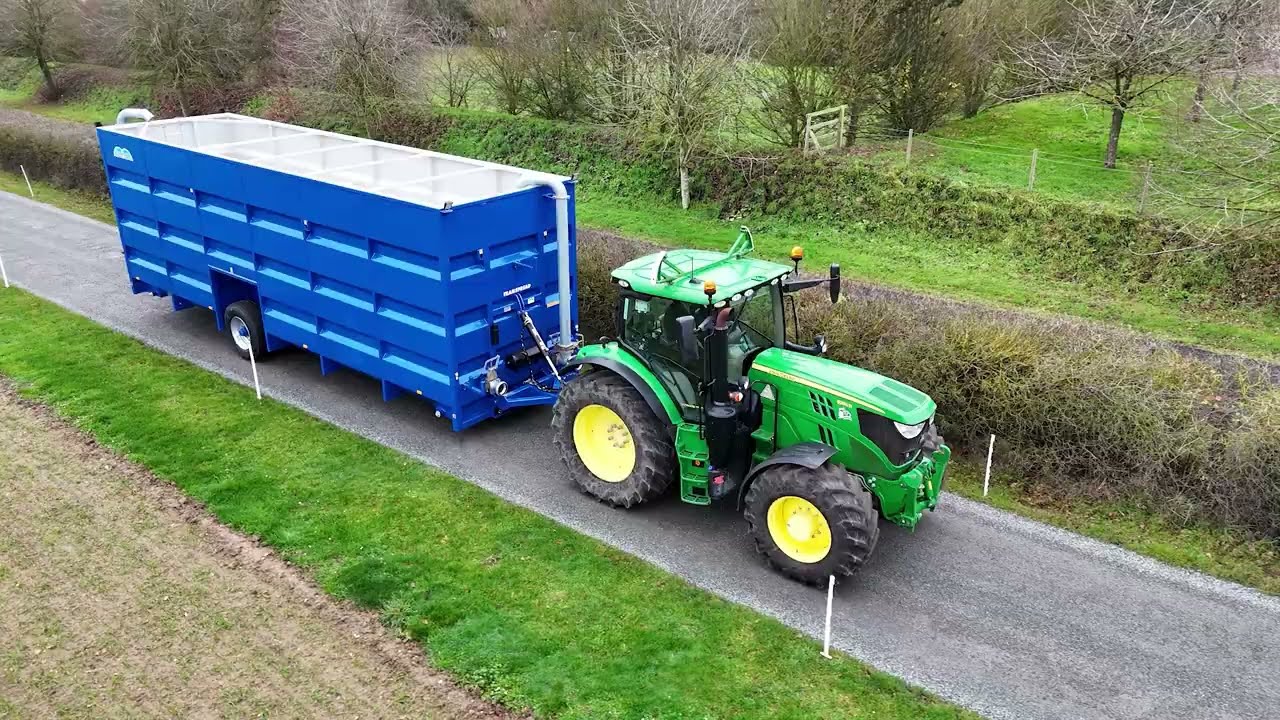

Tramspread nurse tanks

Описание: Tramspread offers a range of nurse tanks with noteworthy features and holding capacities of 45m³, 70m³ and 90m³.

The tanks use an individual hydraulic lift and lower axle design, featuring hydraulic suspension and full air braking, with the wheels recessed into each side leaving a clear central section which never blocks. This makes it far easier to position and use the tank, knowing you it can be emptied from either the front or the back.

All models use a hydraulically-pivoting drawbar which is especially handy when negotiating awkward uneven gateways or positioning the tank in undulating terrain. Generous ground clearance is provided, and the running gear consists of 10-stud wheels with 385/65R22.5 tyres and air brakes.

Standard specification includes a substantial plexiglass sight gauge, internal and external aluminium access ladders, LED lights and beacon, and reflectors. Virtually any combination and type of inlet and outlet ports can be specified, including up and over pipes and a docking funnel for suction arms. As standard the tanks are supplied with one 6” or 8” blind flange but virtually any combination of inlet and outlet ports can be specified. Other options include a sump recess, and most customer requirements can be accommodated.
