Installing HSI150 KMA
Автор: HauffTechnik
Загружено: 2023-03-14
Просмотров: 4727
Описание:

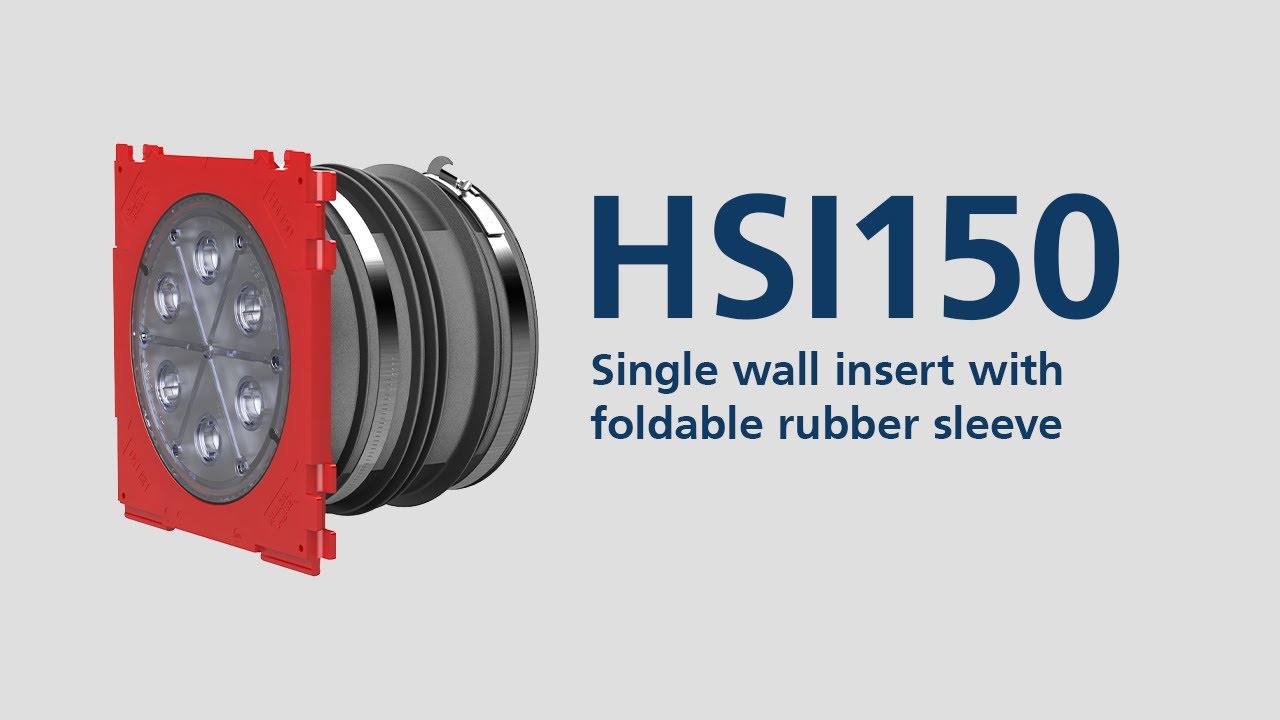

Single wall insert with foldable rubber sleeve
for setting in concrete and connecting corrugated cable ducts
https://www.hauff-technik.de/en/produ...
Application range:
Waterproof concrete stress class 1, Waterproof concrete stress class 2
Advantages:
defined insertion depth of the cable duct hose through stop in the sleeve
Readily available for wall thicknesses 120 mm and above
Quality mark: sealed ex works. Facility to check for unintentional or unauthorised opening of the closing cover.
Pressure-tight seal to the concrete through 3-ribbed seal; with two 3-ribbed seals from wall thicknesses of 150 mm and above
Scope of delivery:
1 x pressure-tight system cover
1 x blind cover
2 x HSI150 AH40 spacer
1 x clamping strap
when connecting corrugated cable ducts, clip rings must be ordered separately. When ordering, please specify tube type and producer.
Dimensions:
Frame size: 220 x 220 mm
Centre distance with spacer: 250 mm
Material:
Wall insert: ABS with TPE 3-ribbed seal
Closing cover: ABS with TPE seal
Adaptor pipe: PVC
Sleeve: EPDM
Clamping straps: W4
Blind cover: PP
Tightness:
Gas-tight and watertight to 0.5 bar
