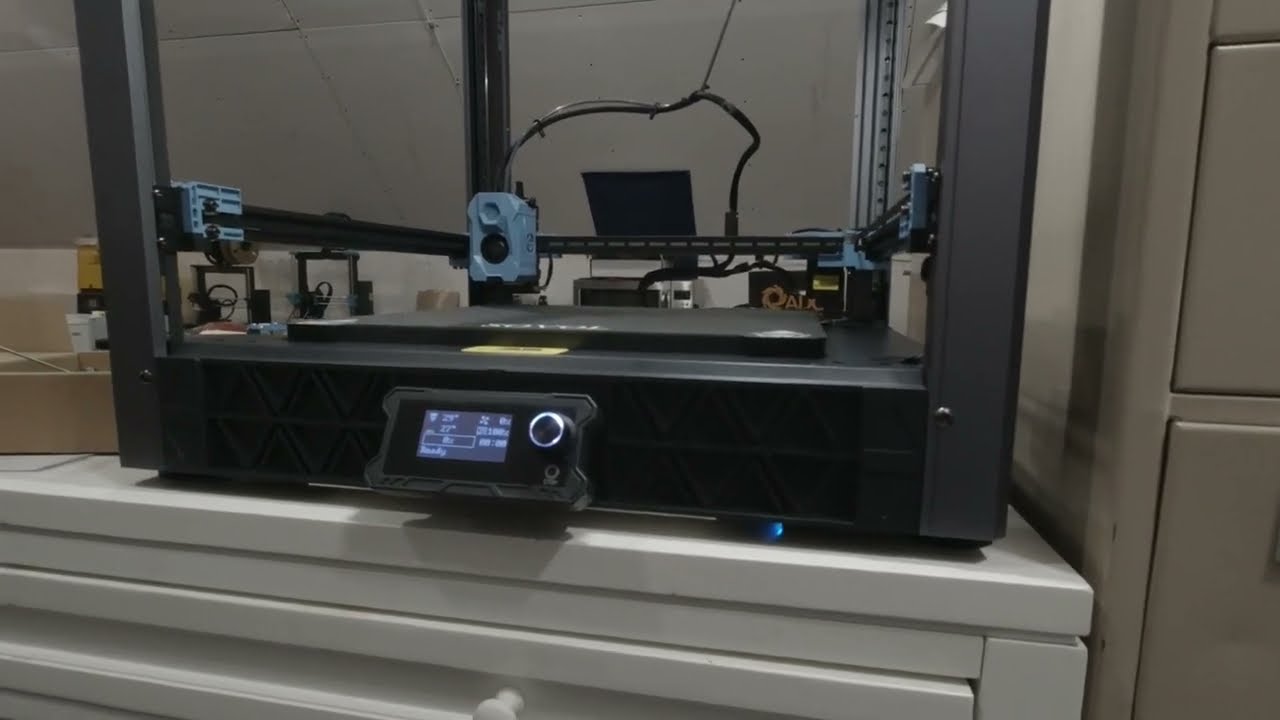

Sovol SV08 CPU fan control via software
Автор: John Hansknecht
Загружено: 2024-07-01
Просмотров: 6045
Описание:
Take the code shown below, copy it, and paste it into the printer.cfg file of your SOVOL SV08 at or around line 375 just below the existing code about fan 3, then at the blank line, add this new code.. This code was developed by -redacted-, a top contributor on a Sovol SV08 facebook page. Apparently people like to keep this a secret and I got kicked off the group for sharing this publicly.. go figure? I am making this video because I saw there was no solution being shown on YouTube other than people tearing into the machine and replacing the fan with a quieter one. Code to be copied and pasted below. NO other changes are necessary!
[temperature_fan CPUfan]
pin: PA1
kick_start_time: 0.5
max_power: 1.0
min_temp: 0
max_temp: 90
hardware_pwm: true
target_temp: 60
sensor_type: temperature_host
max_speed: 1.0
min_speed: 0
control: pid
pid_Kp: 2
pid_Ki: .5
pid_Kd: 0.25
pid_deriv_time: 5.0
