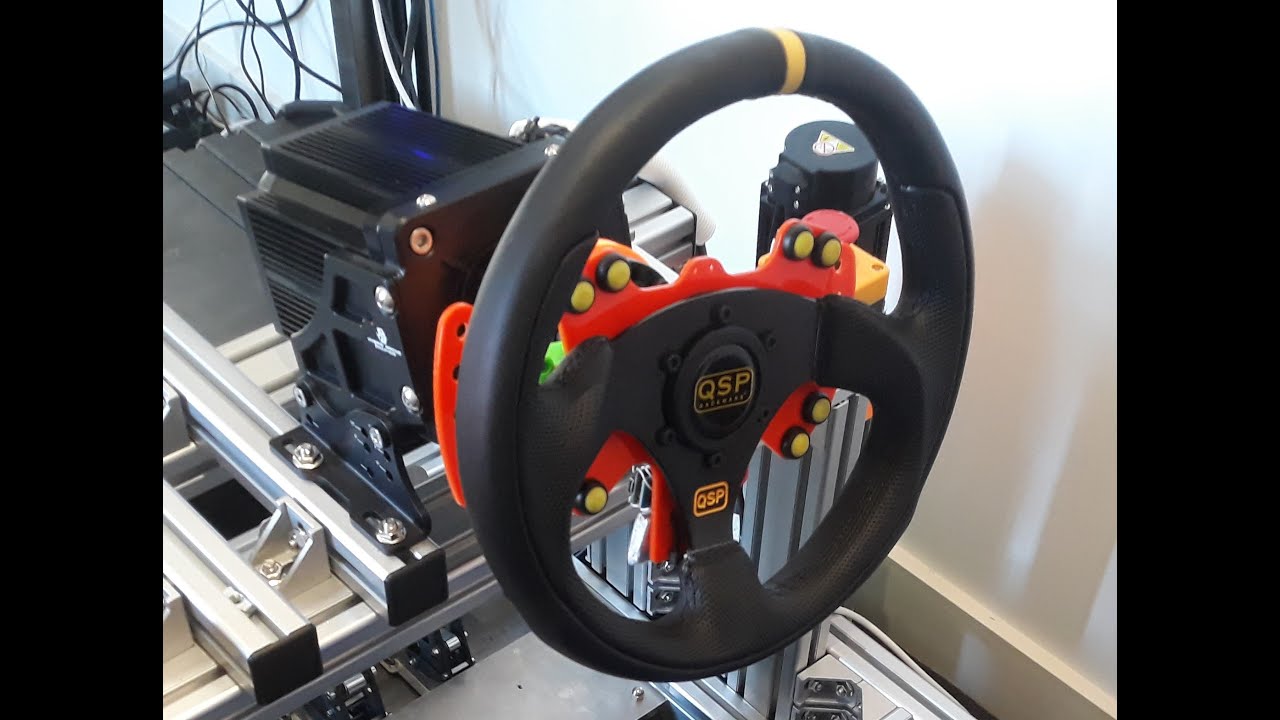

DIY building an Open Sim Wheel (OSW) with Mige, Simucube and Ioni Pro

Описание: Building you own Open Sim Wheel (OSW) is fun, challenging and expensive. What you end up with is a powerful direct-drive steering system for driving simulators. They are incredibly immersive. If you are a serious sim racer it will take you to the next level. The Open Sim Wheel can be used not only for cars but also for trucks such as Euro Truck Simulator 2.

The cost of parts looks is as follows:

MiGE servo motor and cables $304 US
Simucube (force feedback controller) 169 EUR
Ioni Pro (servo drive) 179 EUR
48V 600W power supply $69
Leather steering wheel $133 AUS
3D printed shaft mount $1 AUS
Quick release clamp $4 AUS
Emergency stop button $10 AUS
Case Coolermaster Elite 110 mini $59 AUS
3 pin socket and fuse $5
MiGE mount $200 AUS

Total: $1506AUS

Small Mige 130ST-M10010 for OSW
Lisa email is: [email protected]

https://granitedevices.com/wiki/How_t...


Simucube
https://store.granitedevices.com/moth...

Ioni Pro
https://store.granitedevices.com/ioni...

Granite Devices wiki
https://granitedevices.com/wiki/SimuCUBE

drc file for motor configuration from simtechracing
https://www.simtechracing.co.uk/downl...

Ioni Pro firmware
https://granitedevices.com/wiki/IONI_...

Granity software
https://granitedevices.com/wiki/Grani...

Defuse demo bootloader
https://www.st.com/en/development-too...

Simucube firmware
https://github.com/SimuCUBE/Firmware-...
You will need v0.11.2 BEFORE you upgrade to the latest version.

Steering wheel ebay
QSP Leather Steering Wheel "Touring Flat 300" flat 300mm

Power supply ebay
Wide Range 200-240V AC-DC 600W 48V 12.5A Power Supply

Emergency stop ebay
Plastic Shell Emergency Stop Mushroom Push Button

Coolermaser Elite 110 Case
https://www.coolermaster.com/catalog/...

MiGe mount - http://hrsims.com.au/
[email protected]

3 pin cable and socket ebay
3 Pin IEC320 C14 Inlet Module Plug Fuse Switch Male Power Socket 10A 250V

Quick release clamp ebay
Bike Bicycle BMX MTB Quick Release Seat Post Anodised Alloy Clamp 34.9 mm

Quick release 3D adapter
https://www.thingiverse.com/thing:157...
