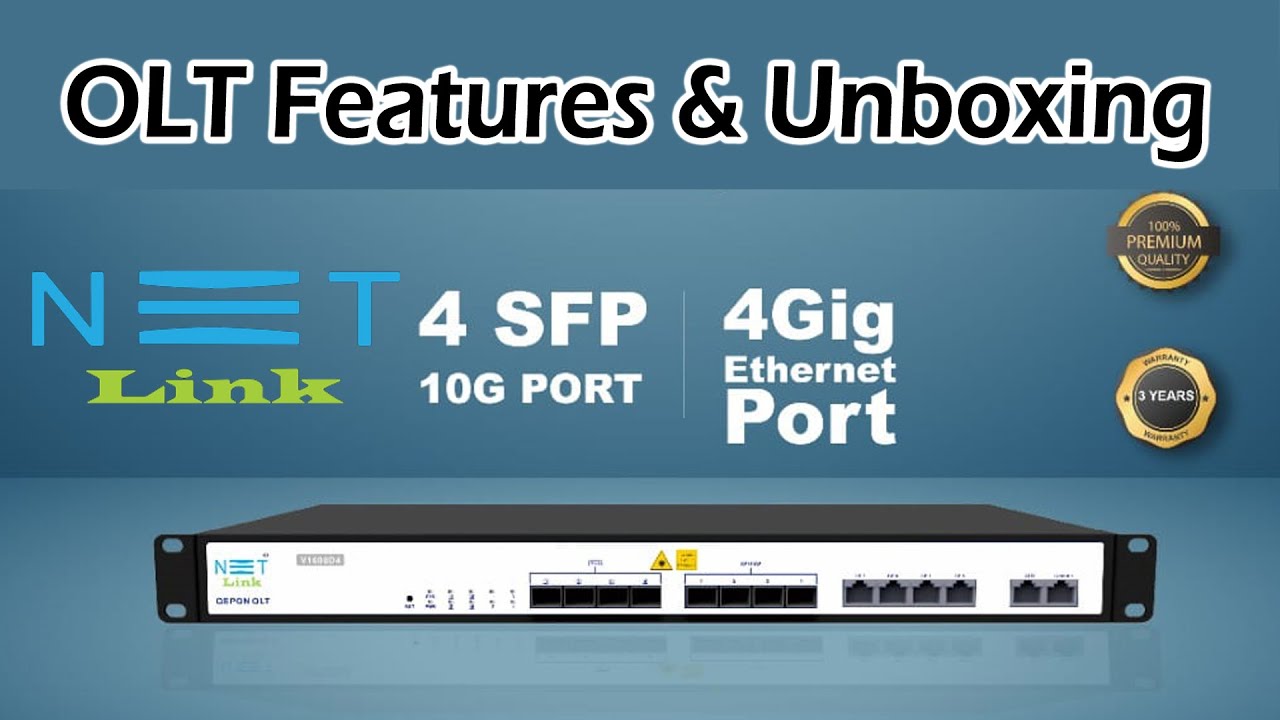

NETLINK GEPON 4 PORT OLT | Features and Unboxing in Tamil | 4 SFP 10G Port - 4 Gig Port [ தமிழில் ]

Описание: #OLT #Internet #netlink
Key Features

Support high performance layer 3 switching
Support Netcare app
Fast ONU Register
Credit Time control
ONU auto detect and ONU firmware auto upgrade
Up to 44GE uplink
WEB/CLI/EMS management

GEPON OLT 4PORT LAYER3 – Product Introduction
V1600D4 EPON OLT products is 1U height 19 inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment.The OLTs can be used for “Triple-Play”,VPN, IP Camera, Enterprise LAN and ICT applications.

V1600D4 provides 4GE(copper) and 4SFP slots independent interface for uplink, and 4*EPON OLT ports for downstream. It can support 256 ONUs under 1:64 splitter ratio.

Physical characteristics
4 EPON port, Automatic configuration,Automatic upgrade, EMS & Web management
Material: Steel Shell
Size: 442mm*200mm*44mm（L*W*H）
Weight: 4.2kg
Technical details of GEPON OLT 4PORT – LAYER3
Item

N1600D4
Chassis Rack
1U 19 inch standard box
1000M
Uplink Port
QTY
8
Copper 4*10/100/1000M auto-negotiation
SFP (independent) 4*SFP slots
EPON Port
QTY 4
Physical Interface SFP Slots
Connector Type 1000BASE-PX20+
Max splitting ratio 1:64
Management Ports 1*10/100BASE-T out-band port, 1*CONSOLE port
PON Port Specification

Transmission Distance

20KM
EPON port speed

Symmetrical 1.25Gbps
Wavelength

TX 1490nm, RX 1310nm
Connector

SC/PC
Fiber Type

9/125μm SMF
TX Power

+2~+7dBm
Rx Sensitivity

-27dBm
Saturation Optical Power

-6dBm
Management Mode SNMP, Telnet and CLI
Management Function
Fan Group Detecting; Port Status monitoring and configuration management; Layer2 switch configuration such as VLAN, Trunk,RSTP,IGMP,QOS, etc; EPON management function: DBA,ONU authorization, ACL,QOS,etc; Online ONU configuration and management; User management; Alarm management.

Layer2 Switch Support port VLAN and protocol VLAN; Support 4096 VLANs; Support VLAN tag/Un-tag ,VLAN transparent transmission, QinQ; Support IEEE802.3d trunk; Support RSTP; QOS based on port,VID,TOS and MAC address; IGMP Snooping; IEEE802.x flow control; Port stability statistic and monitoring.
Layer 3Route 1024 Host Routes; 512 Subnet Routes; 256 IP Multicast Groups;
EPON Function
Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah standard; Up to 20KM transmission Distance; Support data encryption, multi-cast, port VLAN, separation,RSTP,etc; Support Dynamic Bandwidth Allocation (DBA); Support ONU auto-discovery/link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID configuration; Different user and different service could provide different QoS by means of different LLID channels; Support power-off alarm function,easy for link problem detection; Support broadcasting storm resistance function; Support port isolation between different ports; Support ACL and SNMP to configure data packet filter flexibly; Specialized design for system breakdown prevention to maintain stable system; Support dynamic distance calculation on EMS online; Support RSTP,IGMP Proxy.

Dimension(L*W*H) 442mm*200mm*43.6mm
Weight 4.2kg
Power Supply 220VAC AC:90~264V, 47/63Hz
Power Consumption 30W
Operating Environment Working Temperature -10~+55℃
Storage Temperature -40~+85℃
Relative Humidity 5~90%(non-conditioning)

In this Video,
Netlink GEPON OLT Unboxing and Quick Review in Tamil Language. This OLT Aiming at numerous medium and small ISPs, cities, and villages, this can provide users with many integrated services.

👇🏻
