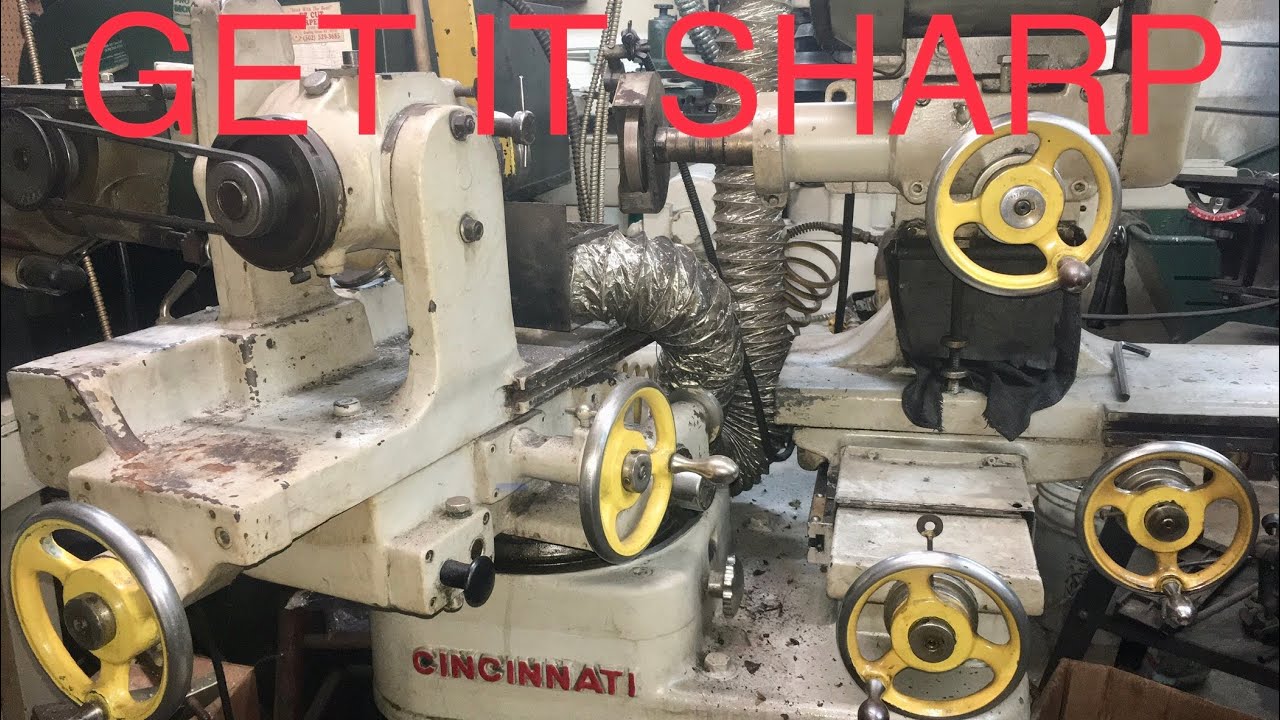

Cincinnati-Milacron MONOSET MT, 2015 REBUILT BY TRIPLE R SYSTEMS TOOL & CUTTER GRINDER

Описание: https://www.machineryvalues.com/inven...

EQUIPPED WITH:
7- GRINDING WHEEL MANDRELS
2- GRINDING SHEEL GUARDS; ONE FOR TYPES 1, 5 AND WE WHEELS,
AND ONE FOR TYPE 11 WHEELS
1- GRINDING WHEELHEAD TOOTHREST AND EXTENSION BAR FOR
TOOTHREST
1- WORKREST, LOWER
1- SPRING LOADED INDEX PAWL FOR WORKHEAD FRONT INDEX.
13- STRAIGHT CYLINDRICAL COLLETS FOR THE WORKHEAD SPINDLE
WITH HOLE DIAMETERS IN INCH SIZES THAT ACCEPT STRAIGHT
CYLINDRICAL DIAMETER WORKPIECES; AND, INCLUDING AN
ADAPTER ("C" TO "A") THAT ACCOMMODATES THE COLLETS
SMALLER THAN 1/2" SIZE. THE COLLETS ARE:
7-SERIES "A" (FITS INTO THE "C" TO "A" COLLET
ADAPTER, WHICH MOUNTS DIRECTLY INTO THE SPINDLE
NOSE) 1/8", 3/16", 1/4", 5/16" 3/8", 7/16" AND
1/2".
6-SERIES "C" (MOUNTS DIRECTLY INTO SPINDLE NOSE),
5/8", 3/4", 7/8", 1", 1-1/8", AND 1-1/4"
6- TAPER HOLE COLLETS, "C" SERIES, FOR THE WORKHEAD
TO ACCOMMODATE TAPER SHANKS OF #2, 3, AND 4 MORSE
TAPERS, AND #5, 7 AND 9 BROWN AND SHARPE TAPERS
1- WOODEN RACK FOR HOLDING 1 SET OF CYLINDRICAL COLLETS
AND 1 SET OF TAPER COLLETS
3- INDEX PLATES FOR THE LEAD MECHANISM INDEXING DEVICE
OF 8, 10 AND 12 DIVISIONS
1- ADJUSTABLE TAIL-CENTER SUPPORT
1- DIAMOND BRACKET, WITH WORKREST, INCLUDING ONE
MOUNTED DIAMOND
1- SET OF WRENCHES
7- GRINDING WHEELS; WITH 3/4" MOUNTING HOLES
NO. DIA WIDTH TYPE SHAPE
1 4" 1/16" 1 STRAIGHT
2 4" 1/8" 1 STRAIGHT
3 4" 1/4" 1 STRAIGHT
4 4" 1/2" 1 STRAIGHT
5 4" 3/4" 5 RECESSED
6 4" 1/2" 12 DISH
7 3-1/2" 1-1/2" 11 FLARING
