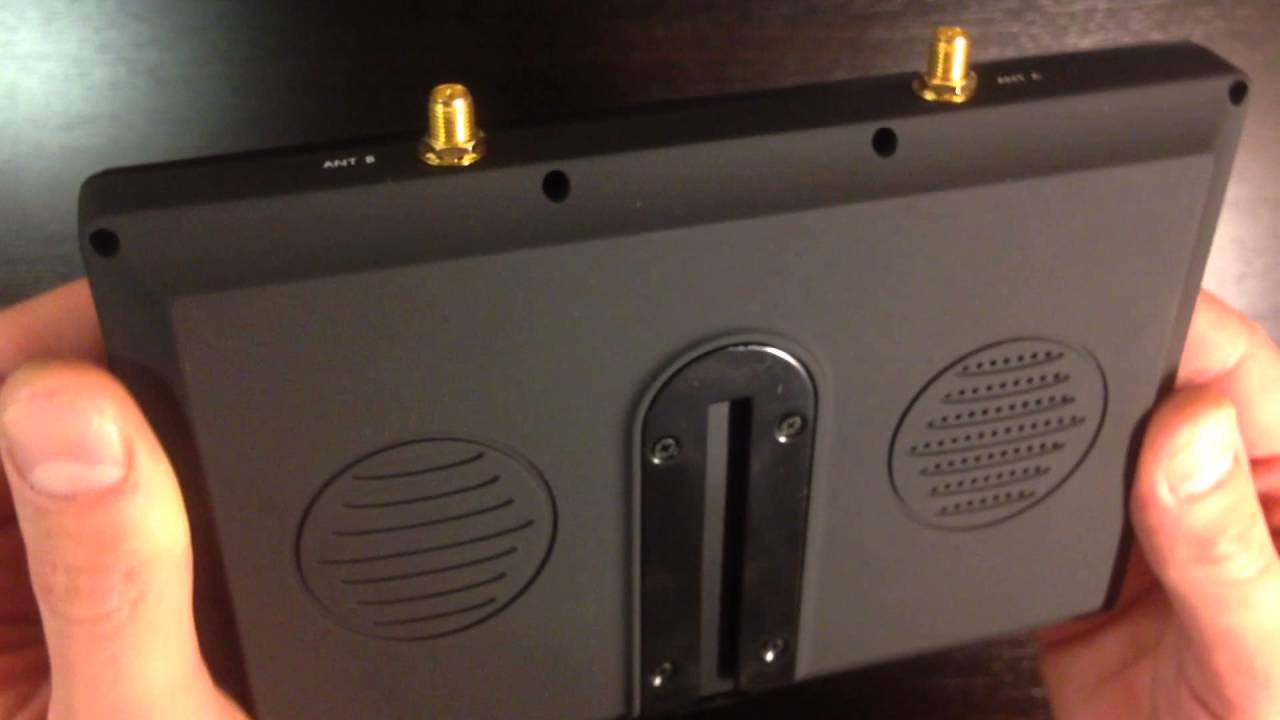

Monitor FPV LCD-5802S Diversity Receiver 5.8g Raceband 40ch 7inch Built in battery Speaker snowflake

Описание: Item Name: LCD5802S Monitor
Built-in 5.8Ghz Dual diversity receiver automatically for best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery:2000mAH/7.4V
Work status OSD display:RSSI indication ; Battery indicator;Channel indication
A key to automatic signal search
Support Chinese and English menu
Sensitivity: -90dBm
Screen size:7
Screen type:TFT LCD Screen/long life, LED backlight
Resolution: 800*480
Brightness:600cd/m2
View Angle:140/120degree (Horizontal/Vertical)
Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)
Working Voltage:DC 7~16V
Power Consumption:max 650 mA @12V
Battery charging current:850mA @12V ( max )
Working temperature:-10~+ 65
Connectors:RP-SMA female(outer needle)
Antennas Connectors:RP-SMA male (inner hole)


Features:
Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
Dual buffered AV outputs
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small, light weight, durable
5 Bands and total 40 Channels
Built-in battery , easy to carry and outdoor use
A key to automatic signal search,Simple operation
Work status OSD display:Always be aware of the device working condition.
Notice: It can't receive 2 different channels at the same time

Package Included:
1 x 7" LCD Screen Receiver Monitor Diversity with built in Rechargable Battery
2 x 5.8G Antenna
1 x AV Cable
1 x Charger
