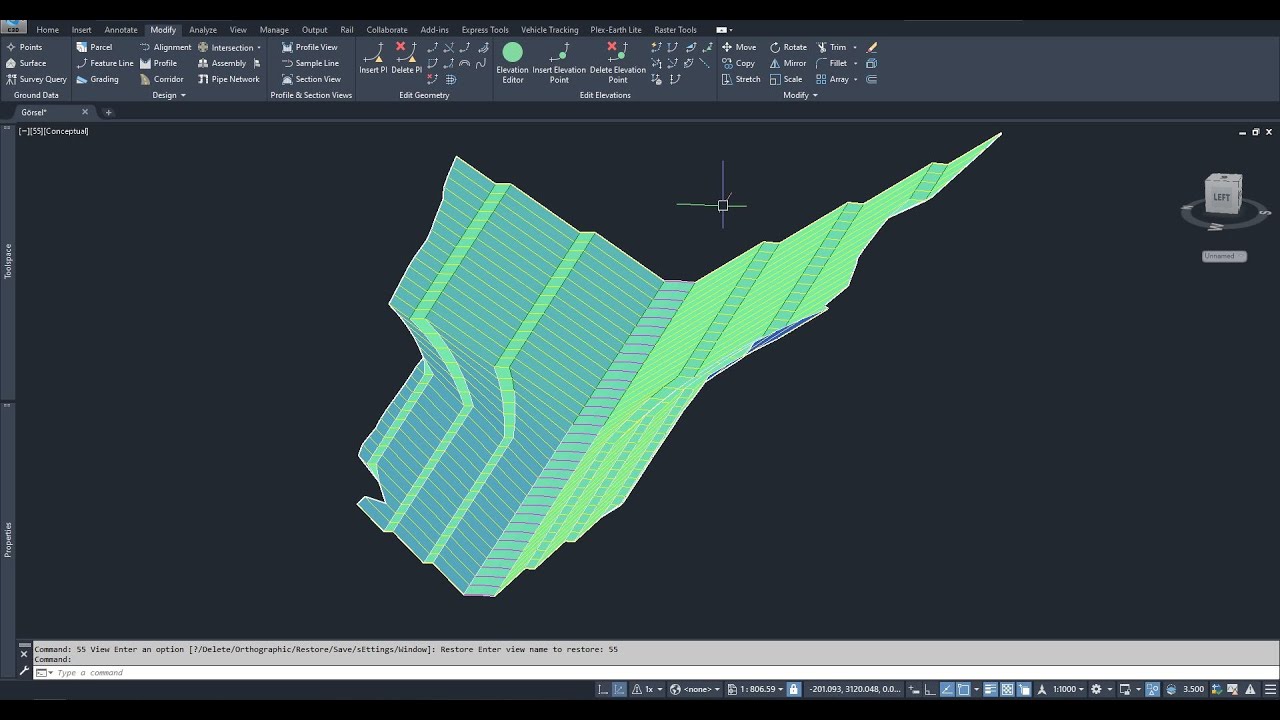

Autocad Civil 3D - Daylight Bench (Variable Slope)

Описание: Farklı Eğim ve Yükseklikteki Şevlerin Arasında Lineer Geçiş Şevleri Oluşturmak
Linear Transition Slope Among Slopes with Different Gradient and Elevation

Contact for assembly: [email protected]

Linkedin Account:
  / civil-3d-designer-76a248299

OPERATIONAL STEPS
Objective: A linear transition corridor will be created and calculations will be performed between corridor models with different slope inclinations and heights.
The application will be carried out in a project where all sections are cut, and the same assembly can be used in areas with fill.
In the project, the slopes will be created based on kilometer intervals as follows:
Slope inclination of 1:1, slope height of 10 meters, and a fixed bench width of 3 meters will be maintained between km 0+000-0+140.
Between km 0+140-0+200, the slope inclination will change gradually from 1:1 to 3:2, the slope height from 10 meters to 15 meters, and the bench width will change from 3 meters to 5 meters.
Between km 0+200-0+350, a slope inclination of 3:2, a slope height of 15 meters, and a fixed bench width of 5 meters will be maintained.
1. A simple road with a width of 10 meters and a constant slope inclination of 1:1 will be created, and a corridor will be drawn.
2. Other assemblies will be drawn.
3. The corridor will be divided into 3 segments, and subassemblies will be defined based on kilometer intervals.
4. An excavation/fill volume table will be formed.
5. Application points will be established.
