Onshape - How to Create Exploded Views | Assemblies and Drawings
Автор: Creo Parametric
Загружено: 2020-03-06
Просмотров: 18085
Описание:
Onshape Professional: Up to 6 months free access for engineers
https://onshape.pro/CADPLMGuy

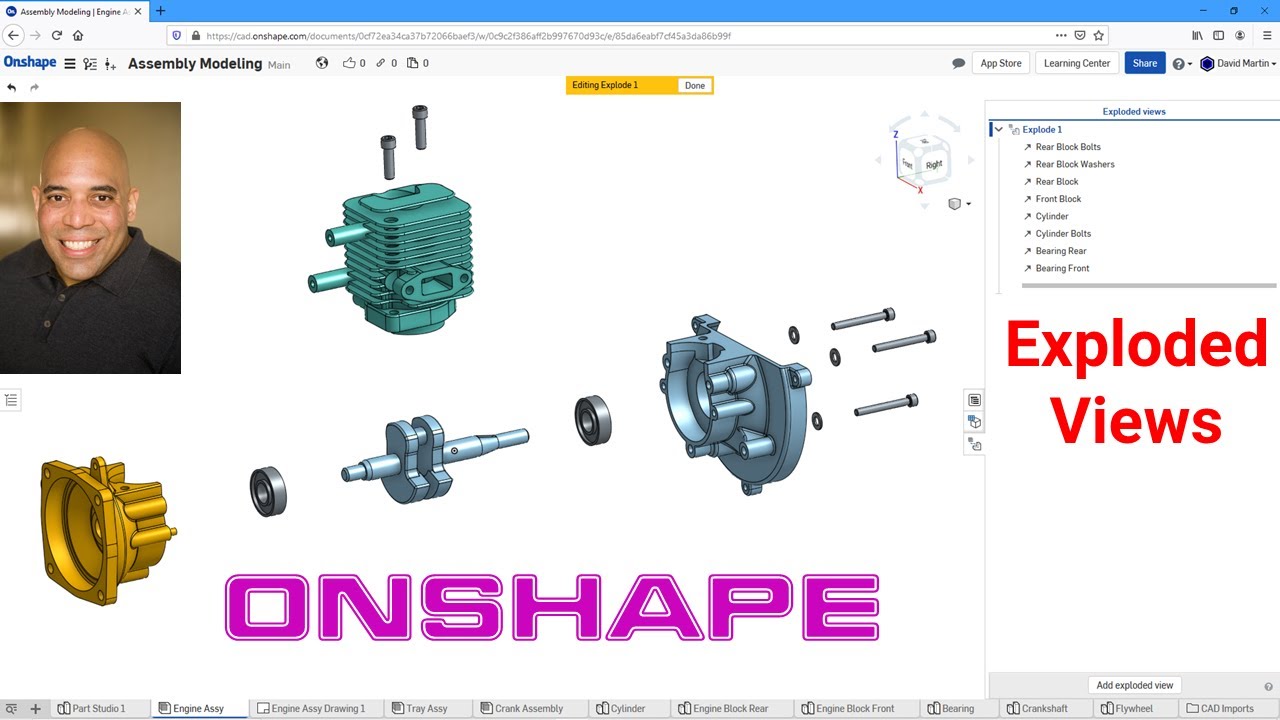

This Onshape tutorial shows the process for defining an Exploded View in an assembly and then placing that view on a drawing sheet. It also shows how to create a Saved View in the assembly and place a Bill of Materials (BOM) with callouts on a drawing.
For more information, visit https://www.mcaeconsulting.com.
If you learned something from this video, please give it a thumbs up. If you like this video, please click the Subscribe button to be informed when new videos are uploaded. Also please write a comment if you would like to see more videos like this.
Feel free to share or embed this video, and add it to your playlists.
Creo admins, you can share the Creo Parametric channel with your users as a training tool:
http://tinyurl.com/CreoParametric
Thanks,
Dave
