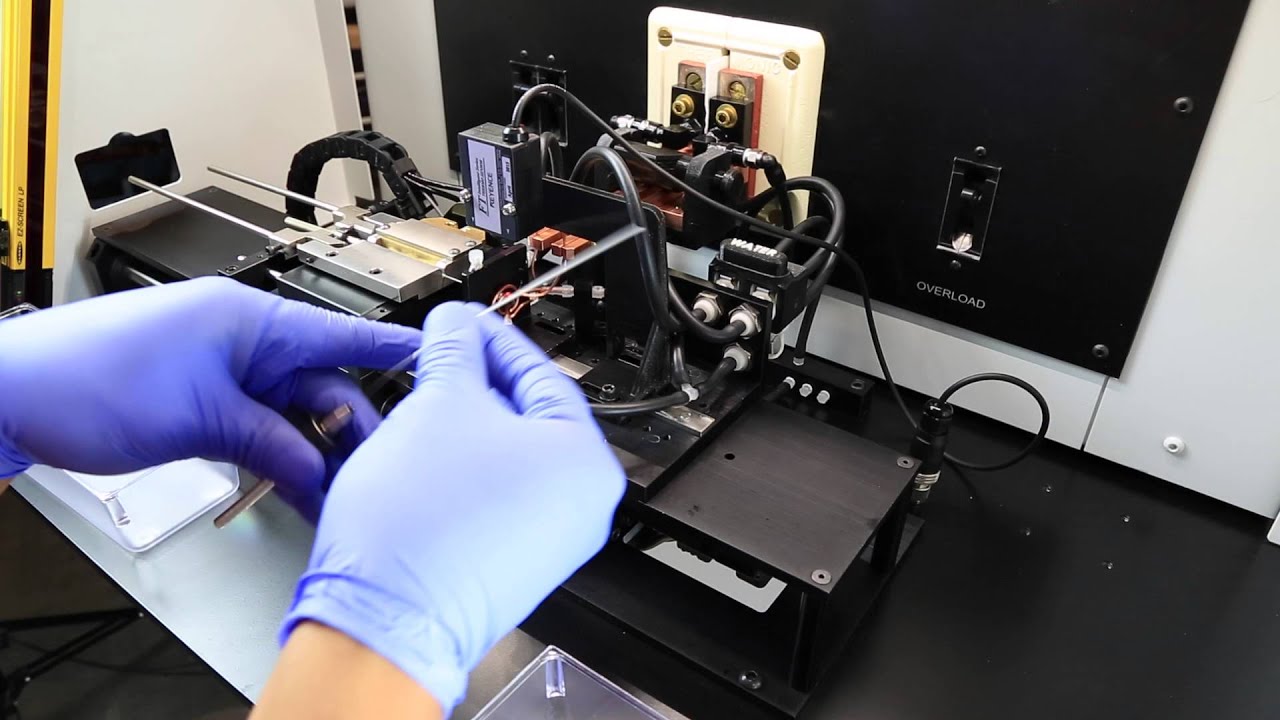

Catheter Tipping Tutorial: How to Test Air Cooling & Clamping On Your CATHTIP Magnum

Описание: Find more in our video library. https://cathtip.com/contact-us/cathet...

Test the CATHTIP Magnum’s pneumatic system to explore optimal cooling rates and flexible clamping pressure. With your machine connected to your facility's compressed air supply, enter the HMI. Go to the Manual page and look at the Pressure Box. The cooling step is as important as the heating step for developing rapid cycles. To explore cooling control, ensure that the Air Cooling Blocks on your Black Box set-up are pointed directly at the heating zone. Air pressure values entered in the operator interface are translated to cooling air and grip force by way of 2 proportional pressure regulators. Input 0-100 PSI into the cooling field and turn on and off. To avoid damaging or collapsing the catheter during clamping, input a low PSI into the clamping field at first then work your way up to your application’s durometer capacity. Inserting mandrels inside the material lumens also helps to avoid collapse. Familiarizing yourself with the pneumatic system gives you the best steps towards quality results on your CATHTIP Magnum.



Superior catheter tipping and catheter hole punching. CATHTIP offers proven process solutions for catheter production, from catheter tipping, bonding, flaring, and Cath-Punch hole punching machines, to full-scale certified Class 7 clean-room production. With decades of experience producing the finest quality tipped and punched catheter parts, we help get products to market. Superior equipment and know-how enhance quality, reliability, and consistency, whether CATHTIP produces the parts or provides the machines to do so. Contact us for rapid prototyping, proof-of-concept and process development for catheters. ISO 13485:2016 Certified Quality Management System

CATHTIP helps companies of all sizes produce a higher-quality catheter product with cleaner holes, more accurate tipping geometry and specific improvements like insertion-force reduction. Achieve flashless tips and smooth bonds using our CATHTIP® proven process. CATHTIP machines operate in the largest medical manufacturing environments, as well as small R&D labs, around the globe. CATHTIP is your number one source of catheter tipping equipment & technology, since 1995.
