Battery short Circuit Protection, Short protection circuit
Автор: Homemade 101
Загружено: 2024-01-07
Просмотров: 14156
Описание:
Battery short Circuit Protection, Short protection circuit.

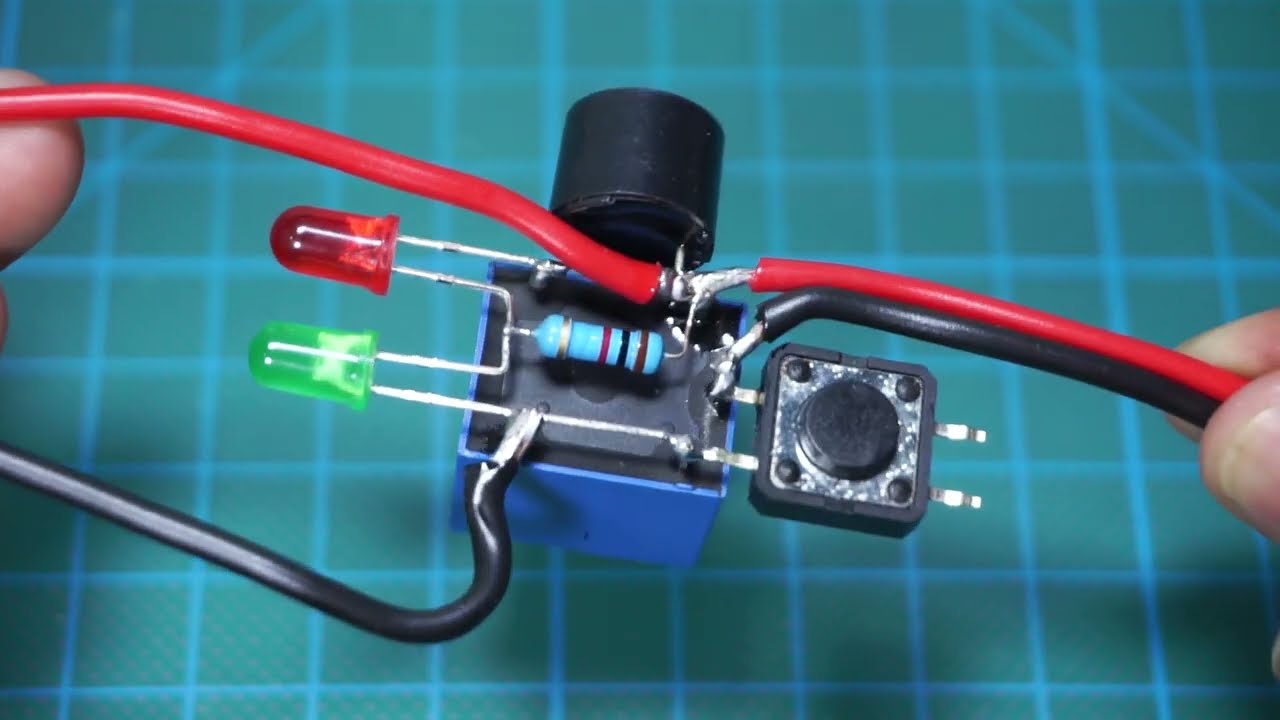

This is a short circuit indicator mini project using a 12-volt relay. Short Circuit. The Indicator Project does the task of detecting the short circuit in a circuit in which it is. connected automatically. With the help of a regulator and a pair of transistors, we lit up an. indicator LED that glows only when there is a short circuit event occurring.
Components used in this project:–
1. 12V Relay
2. LEDs
3. 1K Resistor
4. 3v Buzzer
5. Micro Switch
#batteryprotector
#circuitprotection
#short_protection_circuit
#autocutoff
#homemade101
