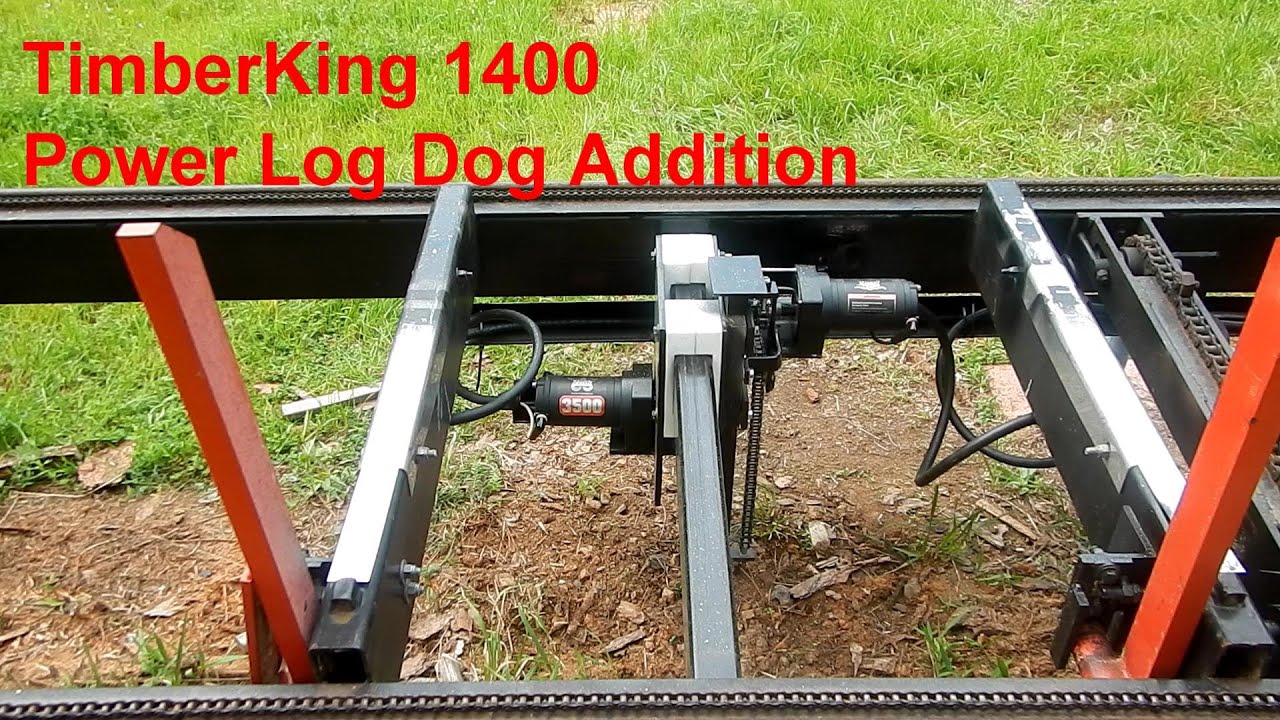

TimberKing 1400 Power Log Dog Winch Driven

Описание: This video consists of the construction and installation of a power log dog utilizing Zeak 3500# winches to power the system wired back to solenoids and a control box with momentary contact switches to activate the solenoids. This video is not for instruction or design of a log dog. It is for informational purposes only. All designs and construction for power equipment should be performed by competent and certified personnel.
Band saw mills, tractors, power tools and welding equipment are inherently dangerous and can be extremely dangerous if not operated properly. YOU, the operator, are responsible for the safe operation of all the equipment. You must carefully read and follow any warnings, safety signs and instructions provided with or located on all power equipment. Do not remove, defeat, deface, or render inoperable any of the safety devices or warnings on the band saw or tractor. All guidelines for proper setup and use provided by the saw blade manufacturer and band saw manufacturer should be followed. Caution should be taken when using power equipment or tools and all recommended safety precautions from the tool or equipment manufacture should be utilized.
Thanks
Credit for background music in order of use from YouTube Video Library;
Take it Back - Dan Lebowitz
Everything You Wanted - Dan Lebowitz
Freedom - Dan Lebowitz

Materials:
Amazon:
Quanity 2 – Zeak 3500 lb. Advanced 12V Electric Winch, Off Road Waterproof, Synthetic Rope
Quanity 2 - APIELE 19MM Mushroom Head Push Button Switch Momentary Push Button IP65 Waterproof 12V 24V 36V DC 110V 250V AC 5A SPST(19mm, Green)
Quanity 2-APIELE 19MM Mushroom Head Push Button Switch Momentary Push Button IP65 Waterproof 12V24V 36V DC 110V 250V AC 5A SPST (19mm, Red)

Quanity 2 -KanSmart Winch Solenoid Relay Contactor 12V 250A Thumb Truck for ATV UTV Boat 4x4Vehicles 1500-5000lbs Winch with 6 Protecting Caps - Winch Switch Replacement Number 6307062135 74900 2875714 70715


Mcmaster-Carr:
9517K599 - Tight-Tolerance Low-Carbon Steel Bar, 1" Thick, 2" Wide, 2 Feet Long
8962K39 - Zinc-Galvanized Low-Carbon Steel Bar, 1" Thick, 1" Wide, 1 Foot Long
8270K82 - High-Temperature Slippery UHMW Polyethylene, Sheet

Nitro Chain:
RC40H-1R-10FT, #40H X 10FT Heavy Series Roller Chain
CL40H, 40H-1 Heavy Duty Connecting Link, (Master Link), Quanity 4
40A12, Type “A” Plate Sprocket, 1/2” Bore, Quanity 2
40A18, Type “A” Plate Sprocket, 5/8” Bore, Quanity 2

Online Metals:
2" x 4" x 0.25" Carbon Steel Rectangle Tube A500/A513 Hot Rolled- Part #: 10184 Online Metals

Wire and Cable Your Way:
50 Feet - 10/2 SOOW Portable Cord 600V UL/CSA,
