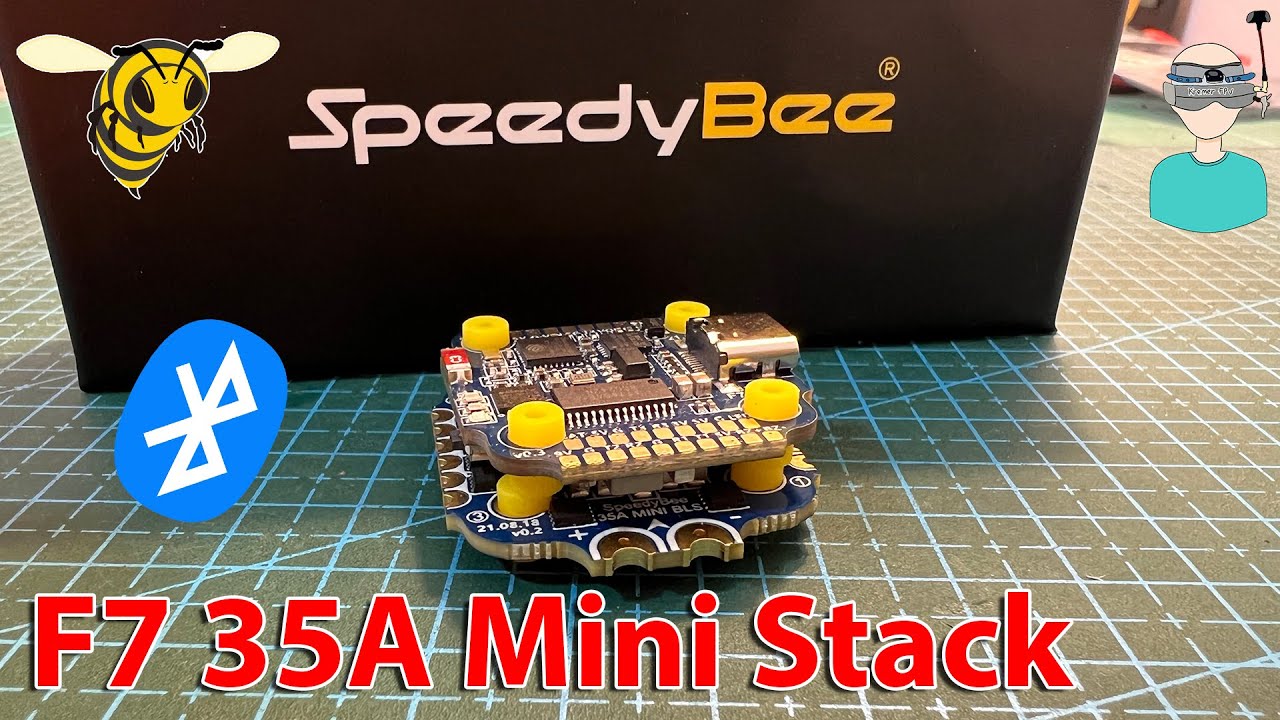

Compact & Cable Stack - SpeedyBee F7 35A Mini Review

Описание: ► SpeedyBee F7 35A Mini Stack: https://www.speedybee.com/speedybee-f...
Also Available On AliExpress: https://bit.ly/SpeedyBeeMini-AE
► Full Size Version: http://bit.ly/SpeedyBeeStackV2 || https://www.speedybee.com/speedybee-s...

🎵 Music: https://bit.ly/AUDIIO

► SpeedyBee App:
iOS 10.0+ : http://bit.ly/SpeedyBee-IOS
Android 4.3+: http://bit.ly/SpeedyBee-Android

╔════╡My Gear╞═════════════════════╡
║ ► Goggles - FatShark HDO2 - http://bit.ly/HDO-2
║ ► RX Module - http://bit.ly/rapidFIRE
║ ► Radio Controller - Radiomaster TX16S: http://bit.ly/TX16S-MAX
║ ► Battery Charger - Hobbymate D6 Duo Pro: http://bit.ly/D6-Duo
║ ►Lipo Batteries: http://bit.ly/CNHL-BG
╚════════════════════════════════╡

╔═╦╗╔╦╗╔═╦═╦╦╦╦╗╔═╗
║╚╣║║║╚╣╚╣╔╣╔╣║╚╣═╣ → http://bit.ly/subscribeToMyYouTube
╠╗║╚╝║║╠╗║╚╣║║║║║═╣ I Really Appreciate Your Support!
╚═╩══╩═╩═╩═╩╝╚╩═╩═╝
●▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬●
Find Me On Facebook:
►   / kremerfpv
Instagram:
►   / kremerfpv

Please consider supporting my channel by using my affiliated links:
Banggood: http://bit.ly/BG-Kremer-FPV
HobbyCool: http://bit.ly/hobbycool
RDQ: http://www.racedayquads.com?aff=26
Rotor Riot: http://store.rotorriot.com?aff=10

It doesn't add any extra cost to you and will help me to grow my channel and bring you high quality updated content.
Thanks in advance!

Description:

Product Name: SpeedyBee F7 Mini Specs
MCU: STM32F722
IMU(Gyro): MPU6000
USB Port Type: Type-C
Barometer: N/A
OSD Chip: AT7456E chip
BLE Bluetooth: Supported. Used for Flight Controller configuration
WiFi: Supported. Used for BLE chip firmware self-update
DJI Air Unit Soldering Pads: Supported
Flash(for BlackBox): 8MB
Current Sensor: Supported, Scale=250 Offset=-500
BetaFlight Camera Control Pad Yes(CC pad)
Power Input: 3S - 6S Lipo
5V Output: 6 groups of 5V output, five +5V pads and 1 BZ+ pad( used for Buzzer). The total current load is 2.5A.
9V Output: 2 groups of 9V output, the total current load is 2A.
3.3V Output Supported. Up to 500mA current load.
ESC Signal Pads M1 - M4
UART: Full UART * 3(UART1, UART2, UART3)
ESC Telemetry UART: R4(UART4)
I2C: Not supported
LED Pad Used for WS2812 LED
Buzzer: BZ+ and BZ- pad used for 5V Buzzer
BOOT Button Used to enter DFU mode
RSSI Input: Not supported
SmartPort: Use any TX pad of UART for the SmartPort feature.
Supported Flight Controller Firmware: BetaFlight(Default), EMUFlight, INAV
Firmware Target Name: SPEEDYBEEF7MINI
Mounting: 20 x 20mm, 3.5mm hole diameter
Dimension: 30 x 30 x 7.5mm
Weight: 5.7g
Product Name: SpeedyBee 35A BLHeli_S Mini 4-in-1 ESC Specs
Firmware: BLHeli_S JH40
Continuous Current: 35A * 4
Burst Current: 45A(5S)
ESC Protocol: DSHOT300/600
Power Input: 3-6S LiPo
Power Output: VBAT
Current Sensor: Support (Scale=250 Offset=-500)
Mounting: 20 x 20mm, 3.6mm hole diameter
Dimension: 35 * 35 * 5.5mm
Weight: 7g
