Siemens OP77B HMI program Restore using Siemens PC Adapter USB A2 Cable via Simatic Prosave V17.0.1
Автор: Automation tricks with Avishek
Загружено: 2022-09-06
Просмотров: 8173
Описание:
1) In details video explaining Siemens OP77B HMI program restore procedure using Siemens PC ADAPTER USB A2 Cable Via Simatic Prosave V17. 0.1 software. It will complement the earlier videos uploaded in the same channel.
Video link 1
• Siemens touch panel "MP 277 8" touch" back...
Video link 2
• SIEMENS OP77B HMI PROGRAM BACK UP PROCEDUR...
2) Viewers will get to know about the details of PG/PC setting.

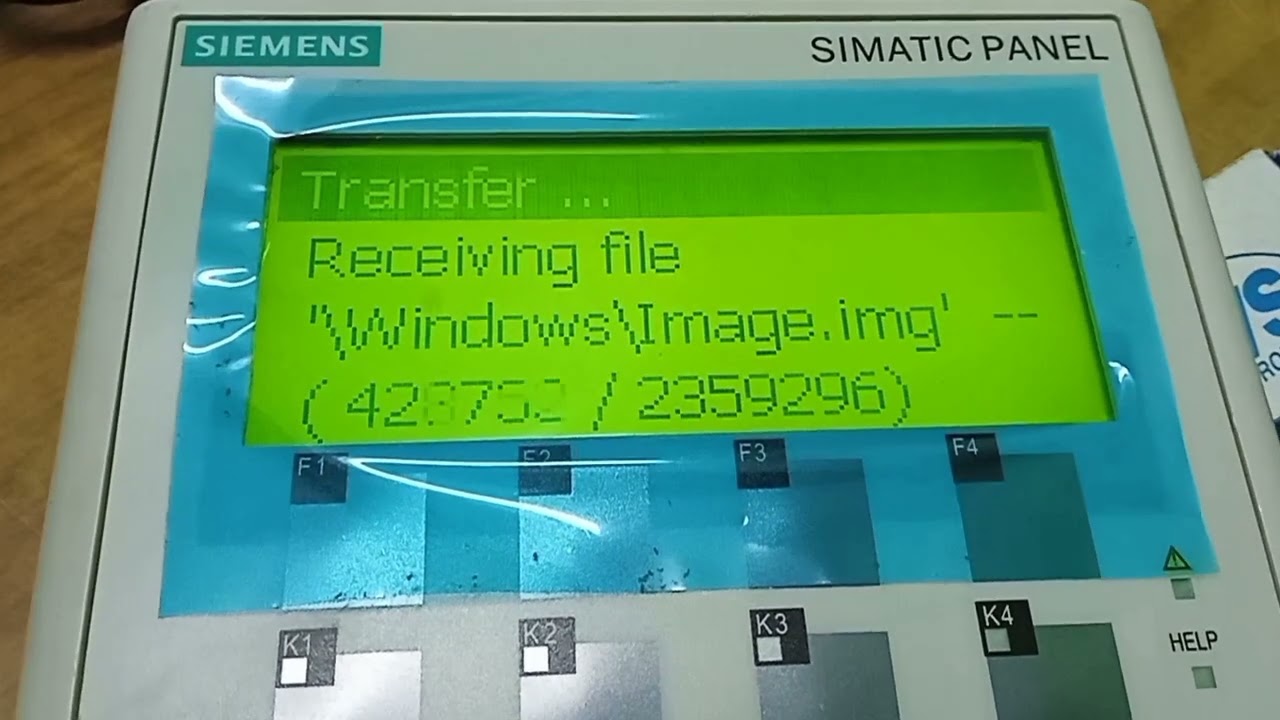

3) Before clicking on "Start Restore" icon in Prosave , "Transfer " icon need to be pressed on the HMI home screen.
4) Before clicking on "Read" icon for checking different "Bus Nodes"
"Transfer " icon need to be pressed on the HMI home screen. Otherwise the PG/PC diagnostics will not be able to detect the different DP addresses of the connected active devices.
5) DP address of the HMI device found by the no. 4 step need to be given in the Prosave V17. 0.1 "General " header.
6) Any program image taken by Prosave software which have ".psb" extension can't be edited. Moreover program restore can be performed on exactly the same type of device with the same Siemens MLFB number only.
7) For any further clarification I am open to replying the comments.
