How to wire BMW E36 cluster with basic dashboard lights

Описание: Here is a link to the arduino code:
https://drive.google.com/file/d/14dvc...

Arduino UNO pinout:
https://drive.google.com/file/d/133IA...

Custom Protocol:
https://drive.google.com/file/d/1JRJy...

Arduino library (path "C:\Users\(your user folder name)\Documents\Arduino"):
If you face any compilation errors, please extract the libraries folder in below zip file to you Arduino folder in Documents.

https://drive.google.com/file/d/1b1Qp...

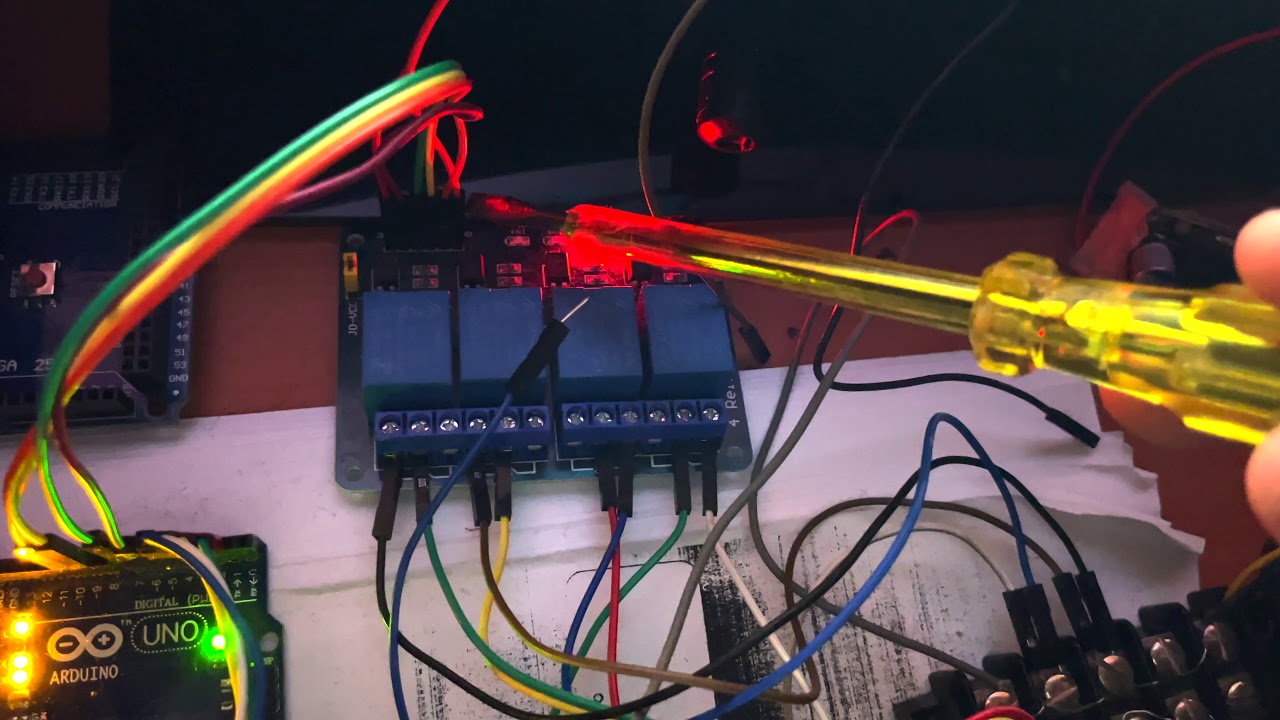

The following are the pinouts for this code (these pins are on the arduino UNO board):

Left blinker - pin 6
Right Blinker - pin 7
Battery warning - pin 8
Low beam (cluster illumination + fog lamp) - pin 9
High beam - pin 10
Speedometer - pin 5
RPM - pin 4
Fuel - pin 2 ( tested on BMW E36)
Temp gauge - pin 3 ( tested on BMW E36)

BMW E36 cluster dash pinouts (these pinouts are on the cluster connectors):

Power Pins:
Connector X16 white
Pin 22 & 23: 12V
Pin 24: Ground

Connector X17 Blue:
Pin 4, 5 & 16: 12V
Pin 3: Ground

Connector X271 Black:
Pin 3: Ground

For the lamps:

Connector X16 (White)
High Beam: Pin 1
Cluster illumination lamp: Pin 2
Right Turn Signal: Pin 3
Left Turn Signal: Pin 4

Connector X17 (Blue)
Battery Warning lamp: Pin 6
Fog Lamp: Pin 8

Gauges:
Connector X16
RPM: Pin 20

Connector X17
Temp: Pin 18

Connector X271 (Black)
Fuel: Pin 1
Speedo: Pin 4

For the 1997-99 Audi A4 cluster similar pinouts can be found in the manual. I'll update it here later.
