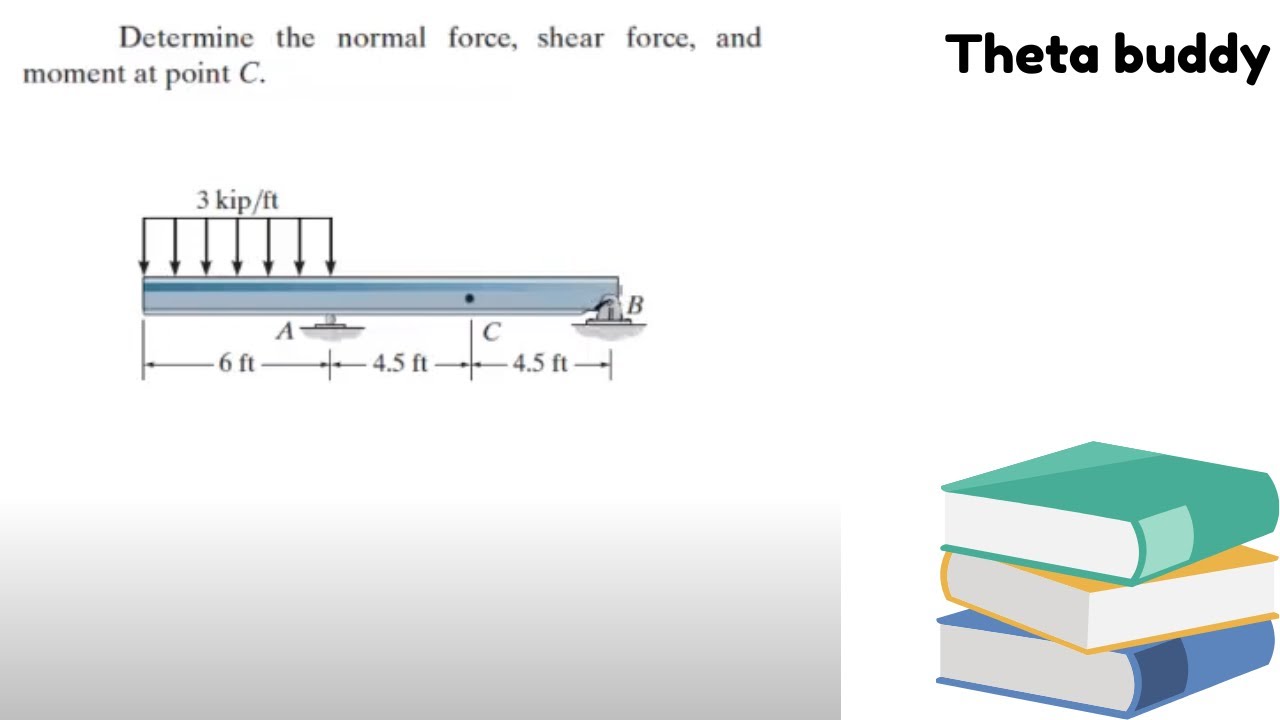

Determine the normal force, shear force, and moment at point C
Автор: ThetaBuddy
Загружено: 2025-02-22
Просмотров: 41
Описание:
Determine the normal force, shear force, and
moment at point C
Answer
*Objective:*
Determine the **normal force (N), shear force (V), and moment (M) at point C**.
*Step 1: Identify Given Information*
*Loading conditions* (forces, distributed loads, moments).
*Location of point C* along the beam.
*Step 2: Cut the Beam at Point C*
Consider *left or right section* of the cut.
*Step 3: Apply Equilibrium Equations to the Section*
*ΣFx = 0:* Solve for **Normal Force (N)**.
*ΣFy = 0:* Solve for **Shear Force (V)**.
*ΣM = 0 (about C):* Solve for **Moment (M)**.
*Final Answers:*
*Normal Force (N) = ...*
*Shear Force (V) = ...*
*Moment (M) = ...*
