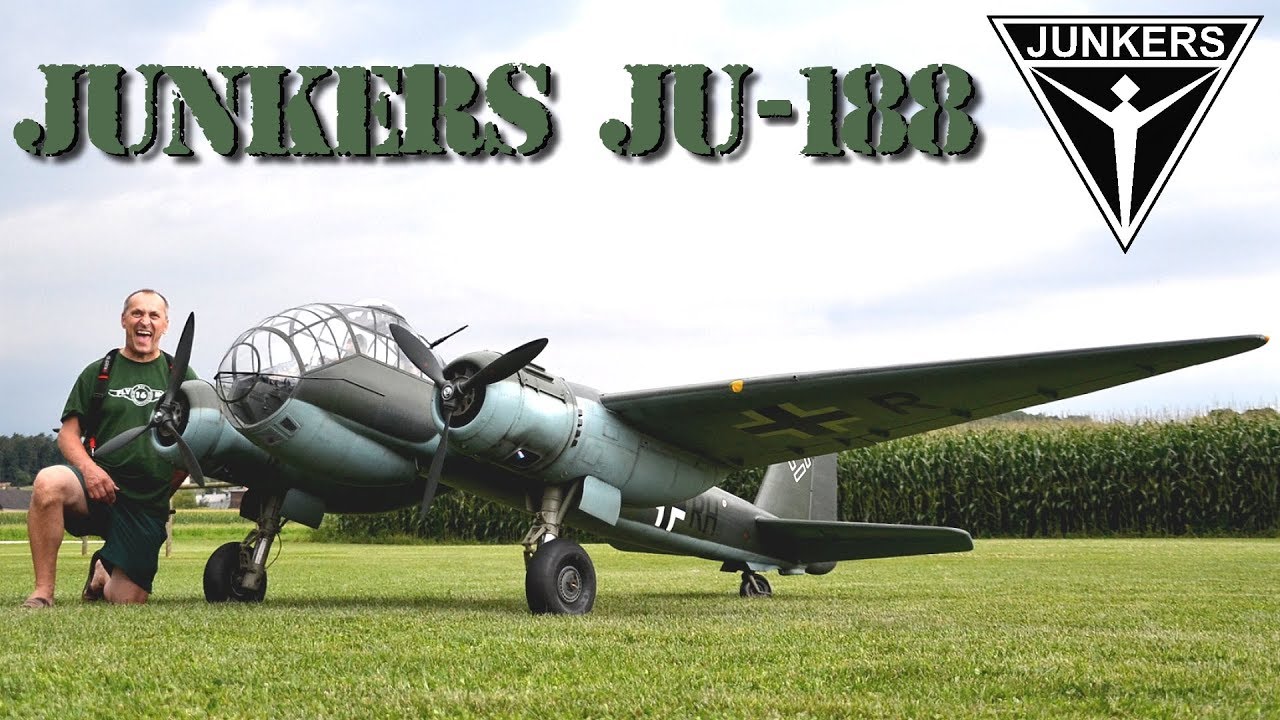

1/4 SCALE JUNKERS JU-188 MAIDEN

Описание: This is the second of totally three Junkers Ju-188 ready for maiden.
Finally, after 8 years of planning and building this awesome work of art, it was time of getting it airborne.

Builder & Owner: Adolf (Adi) Leopold
Model data: Scale 1/4
Wingspan: 5.5m (18 ft)
Weight: ~ 85 Kg (187 pounds)
Engine: 2x Moki 250cc
Kit: Self made (8 years of building)

This project is one of three models of Ju-188 at the same modellers club. The weathering has be done by Klaus Herold, who is an expert in painting and weathering WW2 Rc planes.

--- MORE DETAILS ---
Wings Span 5.5 m (18ft)
Area 3.2 m² (3.6 ft²)
Depth at gondola 160 cm (63")
Motor hoods diameter 33 cm (13")
Elevator Span 195 cm (76.8"')
Area 0,672 m² (7.5 ft²)
Rudder Height from the ground 105 cm (41")
Fuselage Length 383 cm (12½ ft)
Height at canopy 102 cm (40.1")
Landing gear Immersion tube diameter 70 mm (2.76")
Weight 6200 grams incl. wheel (13.7 pounds)
Length (pivot point / axis) 39 cm (15.4")
Suspension control Festo air cylinder 35 mm diameter (1.8")
Air tank 1 liter per side (9 bar)
Wheels Diameter 29 cm (11.4")
Width 9.5 cm (3.74")
Brakes 70 mm drum brakes (27.6")
Propellers 30.7" 3 blade Ramoser ( www.ramoser.de )
Engines Moki 250 without pump
Cockpit details:    • Cockpit Ju188

Enjoy watching !!!
