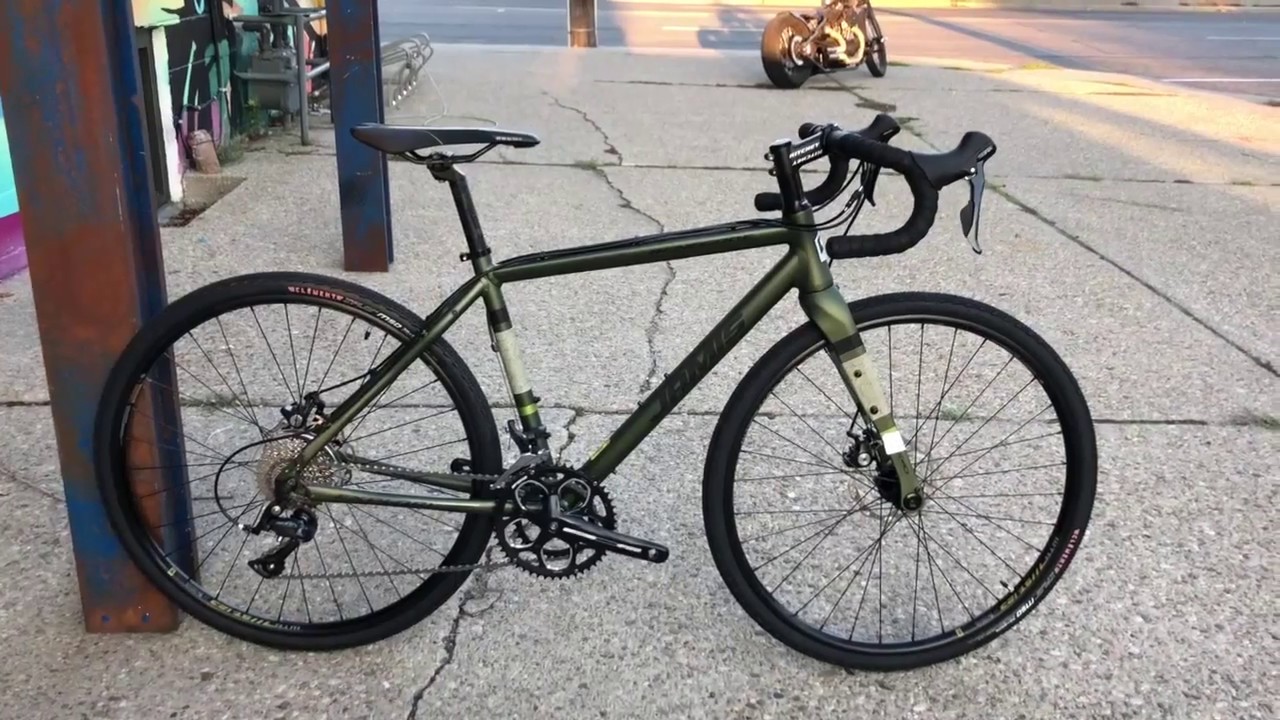

Jamis 2018 Renegade Explore Gravel Grinder

Описание: Jamis 2018 Renegade Explore Gravel Grinder Road

RB Inc
http://www.rbinc-sports.com/Catalogue...

Video:    • Jamis 2018 Renegade Explore

2464 Dufferin Street 416 787 4998

FRAME DESIGN
Starting with a wide and consistent stack and reach range, we set out to design a frame that could handle on or off road conditions while maintaining a comfortable ride. As you start to review the geo chart you will noticed we have 3 different fork offsets, BB drops and rear center measurements. Add size specific tubing and 2 different sized rear triangles and you have what we feel is the perfect endurance geo for all sized riders. The reason for this is that we wanted the 48 and 61 to fit the rider correctly and make the geo changes needed to provide the perfect ride.
SIZE SPECIFIC FRAME DESIGN
Size Specific Design (SSD) is the Jamis design philosophy and technique used to create the best possible riding bike for each size rider. Rather than limiting frame size variations to just different length top, seat and head tubes lengths, we take an all-inclusive look at each frame’s total configuration. Every SSD frame will also feature size-specific BB drop, rear center, fork offset/trail and SST technology.
DISC BRAKES
With endurance geometry designed to go anywhere the only choice was disc brakes. We even took it up a step with both the Renegade Elite and Expert coming with Hydraulic brakes. With hydraulic disc brakes you will have the most consistent and confidence-inspiring braking available. Just think about jamming down hill on a rutted out fire road with your hands all over the hoods…the power & modulation benefits of hydraulic disc brakes become readily apparent.
MORE MOUNTS
We should call them magic mounts. With a collection of fork and frame mounts you can easily choose to mount fenders or a rear carrier. This opens up options when the weather goes bad or can even turn Renegade into a commuter.
TUBELESS RIMS
Tubeless and wider rims across the range provide great benefits on any terrain. The tubeless benefits are to help prevent flats with sealant as well as being able to adjust your tire pressure for the perfect ride. For example on dirt roads you may want to reduce the tire pressure to increase your contact patch for better grip without the worry of pinch flatting. The beauty of the wider rims effectively gives you a constant and wide tire surface yielding better handling, stability and confidence with plenty of surface grip for control.

Frame Jamis Size Specific Design frame geometry, 6061 aluminum double-butted SST main frame, top tube mounted full cable housing, 1.5 - 1 1/8” tapered head tube, 31.8mm seat tube for 27.2 seat post, seat stay disc brake mounts, replaceable derailleur hanger, 3 waterbottle mounts, rack and fender eyelets, clearance for 700x42mm and 650x47mm tires.
Fork Jamis Adventure ECO monocoque carbon composite, 12mm Jamis MTS (Modular Thru-axle System) with stainless interface and carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender, lowrider and water bottle eyelets
Headset FSA Orbit C-40B Internal/External, 1.5 - 1 1/8”
Wheels WTB i23 STP disc rims with TCS (UST Tubeless Compliant System), 32H, Formula 12mm front and QR rear alloy 6-bolt hubs and 14g stainless steel spokes
Tires Clement X Plor MSO, 650 x 36c (44-48) 700 x 36c (51-61), 30TPI with protection belt
Derailleurs Shimano Sora RD-R3000 GS rear and Sora FD-R3000 front with 31.8mm alloy clamp
Shiftlevers Shimano Sora ST-R3000 Dual Control STI, 18-speed
Chain KMC Z99
Cassette Shimano HG400 9-speed, 11-32T
Crankset FSA Vero, 50/34T, 165mm (44/48), 170mm (51) 172.5mm (54/56) 175mm (58/61)
BB Set FSA sealed cartridge, 68 x 110.5mm
Pedals N/A
Brakeset Tektro Lyra mechanical cable actuated disc brake with 160mm wave rotors and Shimano Sora ST-R3000 levers
Handlebar Ritchey Evomax Comp, 6061 aluminum, 73 reach, 120 drop with 12° flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61)
Stem Ritchey 4-Axis 3D forged 6061 alloy, 6˚ x 70mm (44), 80mm (48/51), 90mm (54/56), 110mm (58/61)
Tape Jamis suede tape with gel inserts
Seat Post Jamis Road, micro-adjust, 27.2 x 350mm cromo seat pin
Saddle Selle Royal Seta S1 with integrated clip system
Sizes 44 and 48 650, 51, 54, 56, 58, 61cm 700c
Color Armor Green
Weight 23.00 lbs
