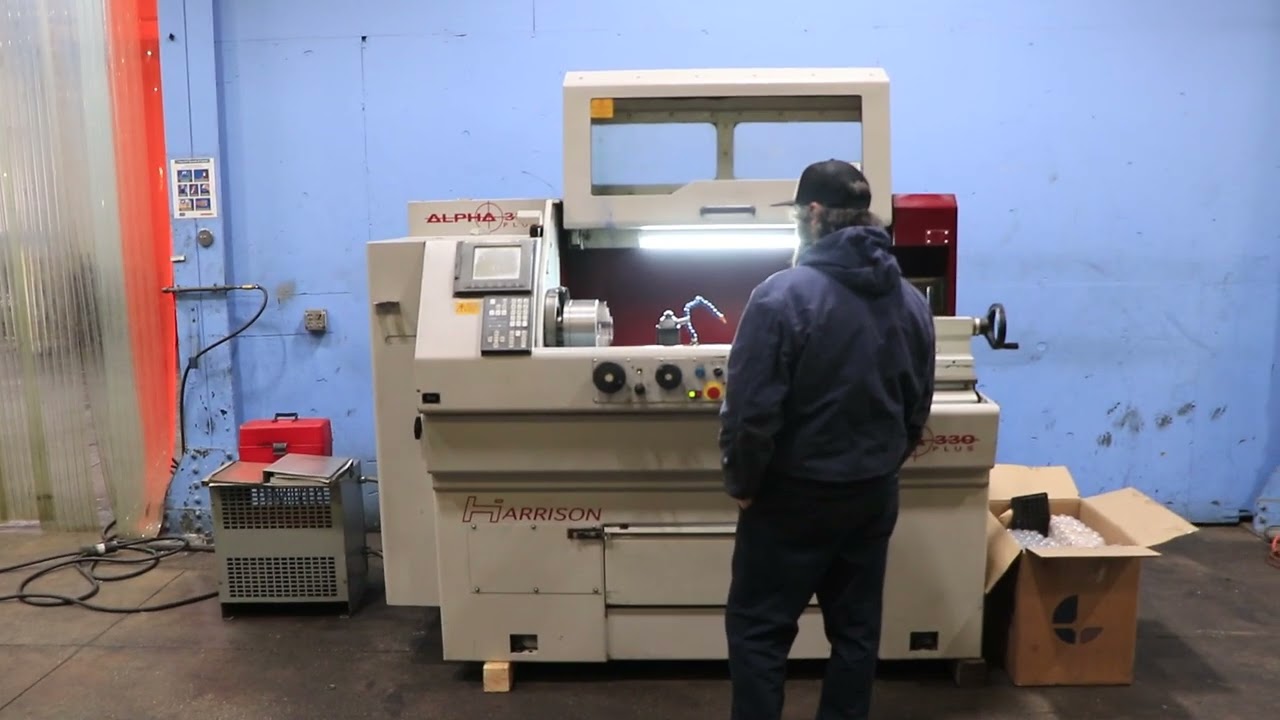

13" x 40" HARRISON CNC/MANUAL FLAT BED LATHE

Описание: https://www.machineryvalues.com/inven...

13" x 40" HARRISON CNC/MANUAL FLAT BED LATHE
MODEL: ALPHA 330 PLUS, S/N:S20306, NEW: 1999

SPECIFICATIONS:
SWING OVER BED ........................ 13"
SWING OVER CROSS SLIDE ................ 8-1/4"
HOLE THRU SPINDLE ..................... 1-1/2"
DISTANCE BETWEEN CENTERS .............. 40"
SPINDLE NOSE CAMLOCK .................. D1-4"
SPINDLE SPEEDS INFINITLY VARIABLE TWO RANGES:
LOW RANGE ......................... 17.5 - 1750 RPM
HIGH RANGE ........................ 35 - 3500 RPM
TAILSTOCK DIAMETER .................... 1-1/2"
TAILSTOCK QUILL TAPER ................. #3MT
TAILSTOCK QUILL TRAVEL MANUAL ......... 4-1/4"
APPROXIMATE DIMENSIONS ................ 80"L x 48"W x 60"H
APPROXIMATE WEIGHT .................... 4,630 LBS.

EQUIPPED WITH:
ALPHA COMPUTER NUMERICAL CONTROL
TEACHING & PLAYBACK MODE, CONSTANT SURFACE SPEED,
THREADING, HANDWHEELS FOR MANUAL OPERATION
8" 3-JAW CHUCK
QUICK CHANGE TOOLPOST
TAILSTOCK
SERVO MOTORS & BALLSCREWS FOR LONGITUDINAL & CROSS CARRIAGE TRAVELS
10 HORSE POWER SPINDLE MOTOR
COOLANT SYSTEM w/ REMOVEABLE CHIP PAN
MANUALS

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
