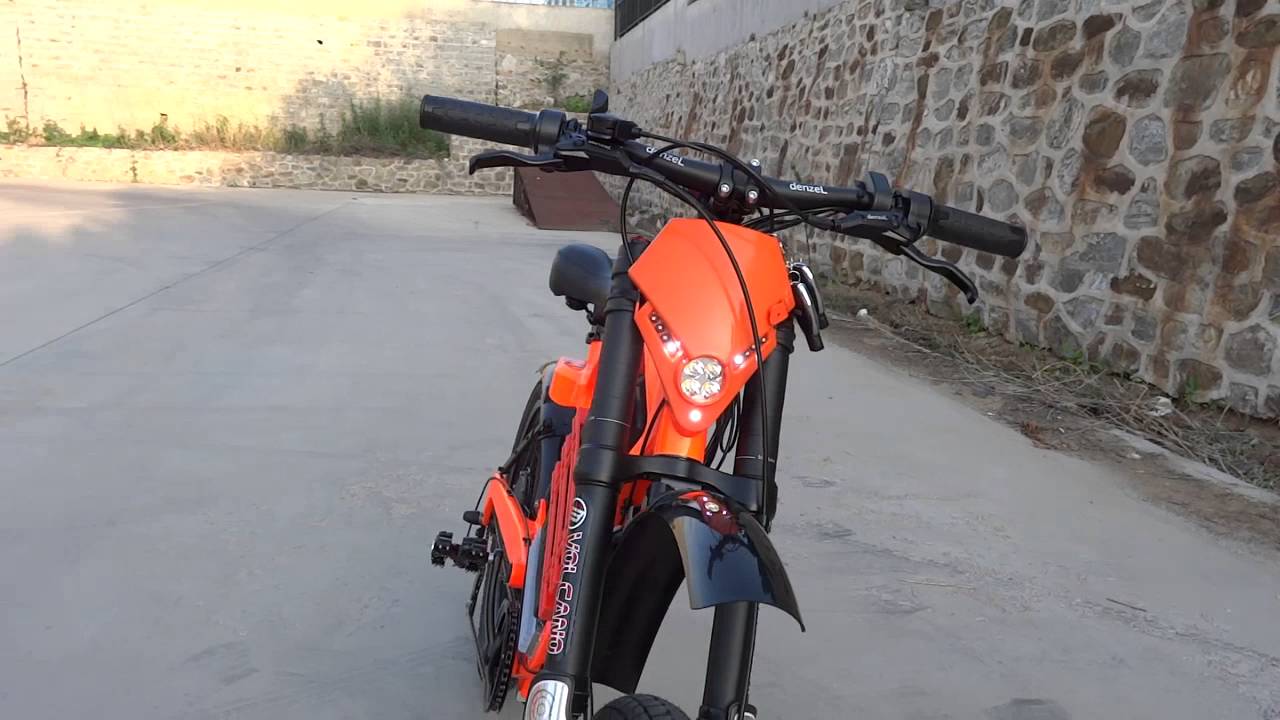

2016 07 07 TEST ORANGE BOXON
Автор: Alex Guliyants (Denzel Electric Bike)
Загружено: 2016-10-03
Просмотров: 11502
Описание:
BOXON ELECTRIC BIKE
FULL CARBON
Max speed: 70 km/h, Max distance: 80 km (this bike has special switcher for setup limit speed)
Charging battery then use brake (self charging, regen function)
Very quick and very easy remove battery box for change it.
Full charging time: no more 3 hours
Max loads: 200 kg
Weight: 45 kg
MOTOR
Rated Power: 2000W, Peak Power 3800W,
Two sets of hall sensor, Motor thermal protection against overheating
High efficiency (more then 85%)
CONTROLLER
PIC
Sine wave Controller Kelly (USA) KLS7212S special for DENZEL, with Bluetooth. Controller install inside frame in special aluminum box with radiator. Very easy cooling. Controller can be programing by Bluetooth or by PC.
General controller functions:
(1) Extended fault detection and protection. The LED flashing pattern indicates the fault sources. Customers can read the error code in PC software or Android Tablet also.
(2) Monitoring battery voltage. It will stop driving if the battery voltage is too high and it will progressively cut back motor drive power as battery voltage drops until it cuts out altogether at the preset "Low Battery Voltage" setting.
(3) Built-in current loop and over current protection.
(4) Configurable motor temperature protection range.
(5) Current cutback at low temperature and high temperature to protect battery and controller.
(6)The controller keeps monitoring battery recharging voltage during regen braking.
(7)Configurable motor over-temperature detection and protection
(8)3 hall position sensor inputs. Open collector, pull up provided.
(9) Enhanced regen brake function. A novel ABS technique provides powerful and smooth regen. The regen can happen at any speeds until zero speed.
BATTERY
Battery type: Lithium Ion
Battery capacity: 60V 23Ah.
Panasonic cells
BMS – protect battery from low voltage, over voltage, over current.
Standard charger: 5A (option: 10A)
Battery install in special battery box with alarm and wireless access kit.
OTHER:
Hydraulic brake Denzel with Taiwan 203 brake disc BRACKO
Front fork DNM USD-8 (Taiwan), Rear shock DNM AV-22 or AOY 308 (AIR) or RCP-3
Strong rim for heavy loads with 24” x 3” tires (all road)
Battery box with alarm and wireless key access.
Electronic brake system (EBS), analog electronic brake system.
Cruise control
Rear 7 gear SHIMANO
Faring with LED day lights and LED head lamp, Speedometer (can use in any time day or night), Rear LED lamp and stop lamp, Turn light, Horn.
Waterproof cable system.
Warranty for frame 5 years, for other parts 1 year, Battery 50 000 km
Support parts this bike for 15 years after selling
Service: very easy to repair and change any parts (controller, motor, DC/DC and so on), also can use Bluetooth to monitoring status of controller and motor.
OPTION:
Cruise control, and Brake analog regen mode (This regen mode doesn't need brake switch to support any more)
SANYO cells battery 60V 28Ah –
We can offer this bike with other configuration – if you need change configuration – please contact with us.
