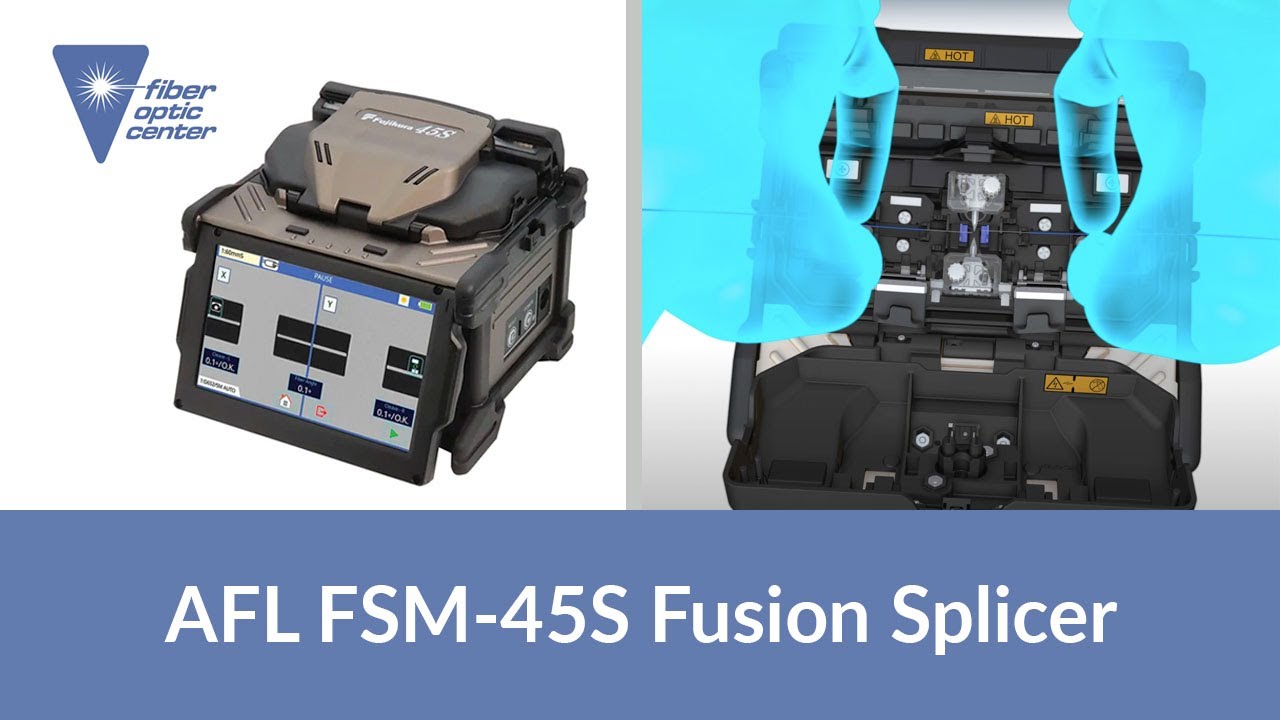

AFL 45S Fusion Splicer Video - Available from Fiber Optic Center
Автор: Fiber Optic Center, Inc. (FOC)
Загружено: 2023-10-25
Просмотров: 1295
Описание:
The 45S cladding alignment fusion splicer is changing the way people splice fiber in small to mid-fiber count applications. This Fujikura splicer debuts a landmark improvement to the fusion splicing process with the ability to prepare and load both fibers simultaneously. The hand-held fiber coating stripper, the SS-05, is capable of stripping two 250 µm coated fibers in the same pass, along with the CT-16A cleaver adapter plate which can likewise accommodate two bare fibers for cleaving. After preparation, the 45S patented sheath clamps enable loading both fibers simultaneously into the splicer with one fiber in each hand. The user can press down on the sheath clamp base to close it while positioning the fiber in the v-grooves. This enables one-handed operation.
Request a quote: https://focenter.com/afl-fsm-45s-fusi...
Kit includes:
45S Fusion Splicer
CT-50 cleaver
SS-05 single fiber stripper
1 pair each FH-70-250 and FH-70-900 fiber holders
SP-04 set plates
ELCT2-16B Spare Electrodes (Pair)
ADC-21 AC Adapter
BTR-17 Battery Pack (installed)
ACC-09 Power Cord
USB-01 USB Cable
AP-02 Alcohol Container
WT-10 work tray
ST-03 carrying case strap
TS-03 tripod screw,
CC-45 Transit Case
Instruction manual downloaded from splicer
0:00 - Intro
0:31 - Reduced Operation Cycle Time
1:57 - Improved Usability
2:36 - Active Fusion Control Technology
2:59 - Active Blade Management Technology
3:19 - Durability
3:36 - Splice+ App
3:59 - Outro
