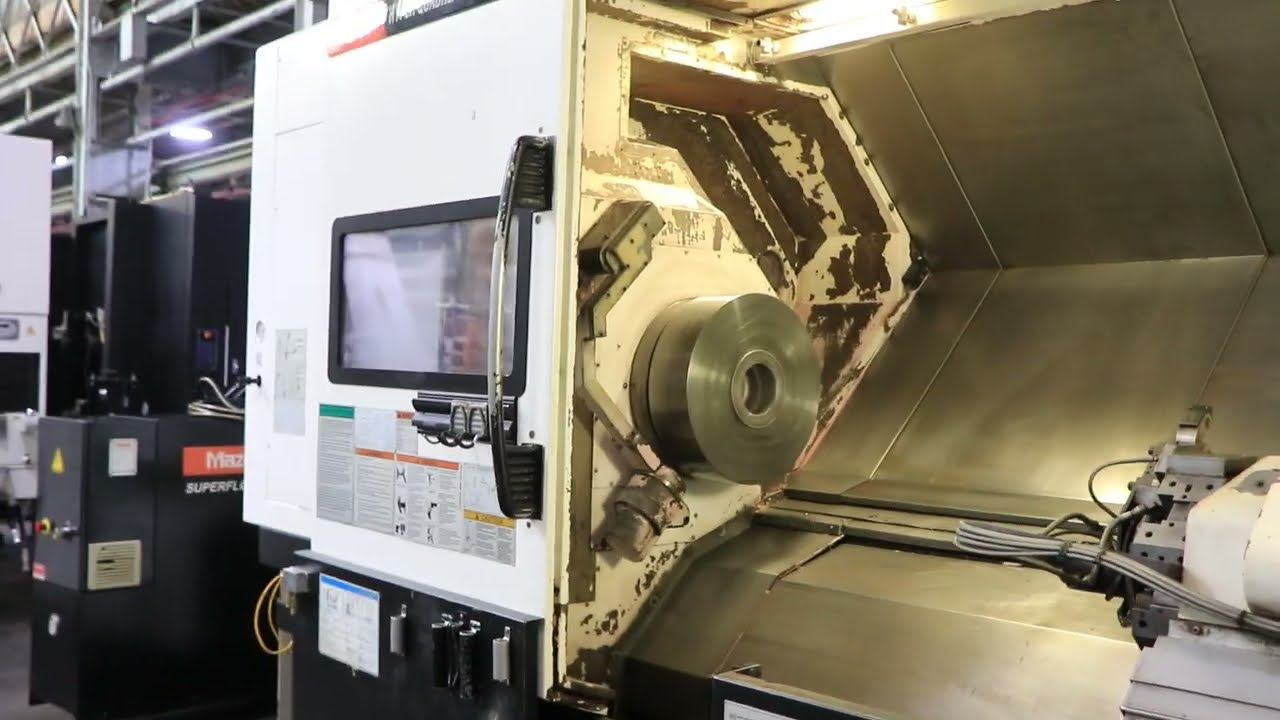

2013 Mazak Hyper Quadrex 450MY CNC TURNING CENTER
Автор: MachineryValues Inc
Загружено: 2024-06-12
Просмотров: 284
Описание:
https://www.machineryvalues.com/inven...
2013 Mazak Hyper Quadrex 450MY CNC TURNING CENTER
Mazatrol Matrix Control
Maximum Swing 33.07"
Machining Diameter 13.23" upper cutter
Machining Diameter 11.14" lower cutter
Bar Workpiece Capacity 7.24"
Max. Machining Length 82.83"
Dist. between spindle end and turret end face 6.994"-97.362"
Max support weight Chuck workpiece 3968 lbs
Max support weight Shaft workpiece 2923 lbs
Max spindle speed 1500 rpm
Spindle motor output (30min/cont rating) 50/40hp
Maximum torque 1748.7 lbft
Upper turret max # of tools 12
Upper turret mill spindle motor 10 hp
Upper turret mill 4000 rpm
Lower turret max # of tools 8
Tailstock CURRENTLY BEING REBUILT
Tailstock travel 76.575"
Coolant tank capacity 155.9 gallons
Dimensions 236"L x 106.5"W x 96" H
Machine weight 39000 lbs
Includes
Assortment of static holders plus (2) live holders
20" chuck 3 Jaw chuck SMW Autoblok
(2) Mazak Superflow High Pressure Pumps 2000 PSI
Steady rest mounted on lower turret
Machine can be Inspected Under Power!
Available 4/5/24
