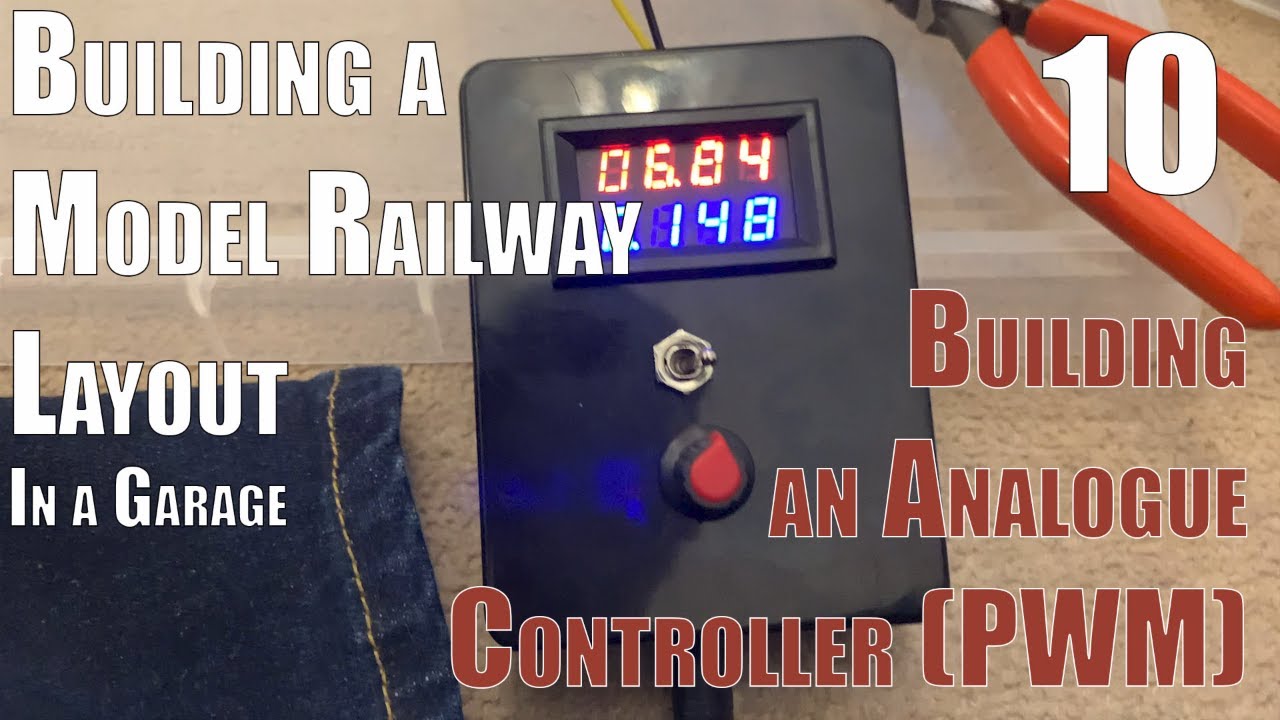

Building a Model Layout in the Garage - Part 10 - Built my own analogue (PWM) Controller
Автор: Rowan Town Model Railway
Загружено: 2020-10-01
Просмотров: 1034
Описание:
So this is a carry over from the previous video, where I discuss the parts to build a PWM based analogue controller from parts sourced from eBay./
Components used
DC Power Socket = https://www.ebay.co.uk/itm/12V-DC-POW...
Switch = https://www.ebay.co.uk/itm/Miniature-...
Motor Controller = https://www.ebay.co.uk/itm/DC-1-8V-3V...
Plastic Box = https://www.ebay.co.uk/itm/ABS-BLACK-...
Votatge and Amp Meter = https://www.ebay.co.uk/itm/4-Bits-DC2...
Watch as I fumble my way through building it.
0:00 Intro
0:23 The Parts
1:40 Starting with the DC Socket
1:53 Testing the DC Socket
2:10 Making holes in the case
3:47 Start of the front face holes and cutting
5:30 Cutting the aperture for the Amp and Voltage Meter
6:!5 Bad job at cutting out the aperature
8:02 Powering up the meter
9:00 SOldering the switch
11:16 Combining the components
13:44 First test althougher
14:34 First test with a train and no Amps showing
16:00 Corrected wiring for it to work correctly
