Horn + Noack DPN 760 blister machine (used)
Автор: Loïck Exapro
Загружено: 2024-09-26
Просмотров: 604
Описание:

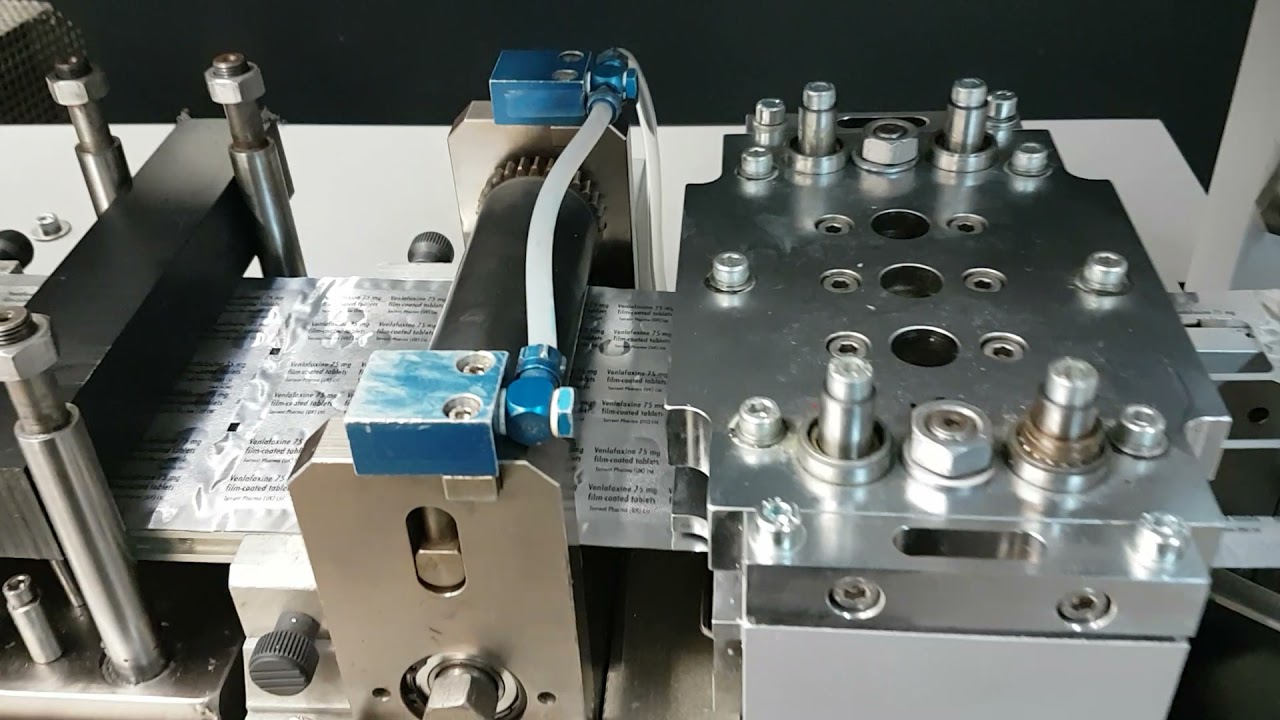

Noack model DPN 760 blister pack/thermo former machine for hot and cold forming of mouldable films/foils.
Up to 40 cycles per minute depending on product and packaging size.
Suitable for packing tablets, capsules, caplets or ampoules.
Maximum foil width 165mm.
Maximum feed length 140mm.
Maximum forming area 156 mm x 138 mm.
Maximum forming capacity 5 metres per minute.
Recommended maximum forming depth 24mm.
Maximum reel diameter for forming film 600mm and maximum reel diameter for lidding foil is 250mm.
This machine can form to a maximum depth of 24 mm with additional/optional tooling (not included).
Product feed can be manual or automatic (automatic feeder not included).
Power: 4.5 – 8.5 Kw/415V/3phase/50Hz.
Air pressure: minimum 6 Bar to maximum 8 Bar.
Machine size: 2800mm x 750mm x 1650mm high, approx. weight 1100kg.
Condition: revised by a specialist engineer.
