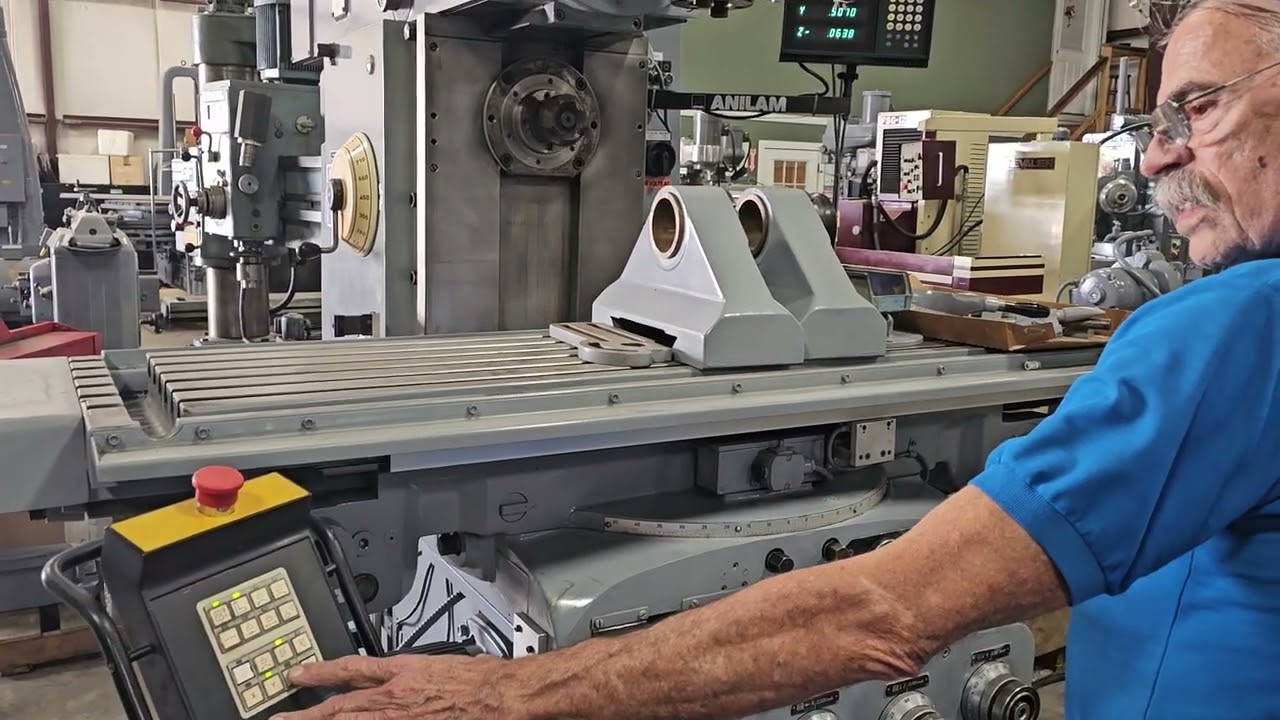

15 X 71 Used WMW Heckert Horizontal Milling Machine With Independent Universal Vertical Head

Описание: 15 X 71 Used WMW Heckert Horizontal Milling Machine With Independent Universal Vertical HeadTable Size...............................................................15" X 71"
Table Load..............................................................3,300 Lbs.
Table Travel............................................................44.1"
Table Cross Travel.................................................13.6"
Table Swivels Right & Left Of Center....................45 Degrees
Spindle Taper.........................................................50"
Knee Travel Up & Down.........................................21.6"
Distance Vertical Spindle To Table Min / Max.....1" To 14"
Spindle Speeds.......................................................45 To 2,240 Rpm's
Spindle Speed Vertical Head.................................28 To 1,400 Rpm's
Spindle Taper Both Horizontal And Vertical........#50
Saddle And Table Feeds.......................................3/8 To 90 I.P.M.
Rapids Long. & Cross............................................124 I.P.M.
Rapids Knee...........................................................40 I.P.M.
Main Motor............................................................15 Hp.
Main Motor Vertical Head....................................5 Hp.
Machine Floor Space............................................R-L 96" X F-B 96"
Height....................................................................96"
Weight...................................................................9,600 Lbs.
Power Draw Bar On Horizontal Spindle..............Yes
Double Swivel Vertical Head................................Yes
Coolant..................................................................Yes
Pendent.................................................................Yes
Wide Knee.............................................................Yes
Arbor Supports.....................................................(2) Yes

Note: Clean has been cleaned, painted and cycled.
Machine came of of a Nevada power plant.
