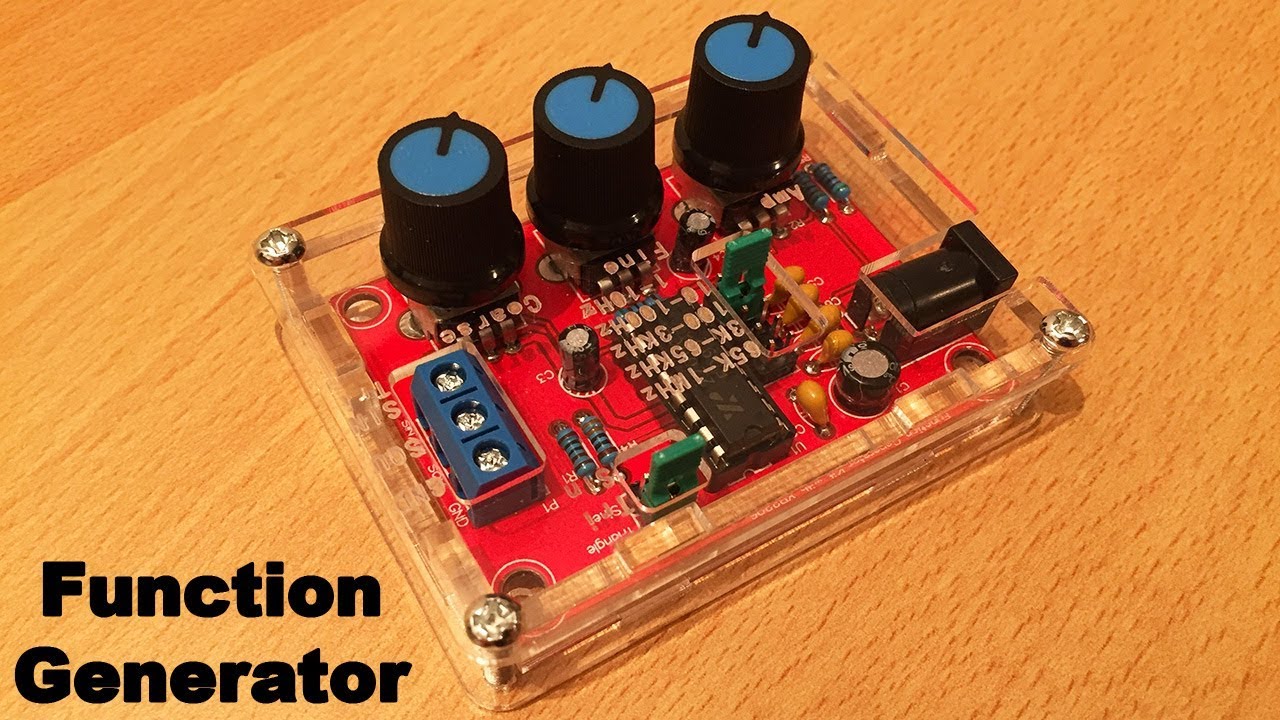

Function Generator DIY with XR2206
Автор: Electronic Projects Stefano91ste
Загружено: 2018-01-14
Просмотров: 5548
Описание:
This is a Signal Generator kit DIY with XR2206
Buy this KIT: https://www.banggood.com/custlink/DvK...
Time-Lapse Assembly: • Function Generator DIY KIT - (Time-Lapse A...
LED Oscilloscope: • LED Oscilloscope with LM3914 + NE555 + CD4017
Specifications:
Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz-1MHz
SINE WAVE:
Amplitude: 0-3V at 9V DC Input
Distortion: Less than 1% (at 1KHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE:
Amplitude: 8V (no load) at 9V DC Input
Rise Time: Less than 50ns (at 1KHz)
Fall Time: Less than 30ns (at 1KHz)
Symmetry: Less than 5% (at 1KHz)
TRIANGLE WAVE:
Amplitude: 0-3V at 9V DC Input
Linearity: Less than 1% (up to 100KHz) 10mA
Music By
Colors [NCS Release] - Tobu (No Copyright Music)
Adventures - A Himitsu (No Copyright Music)
Misael Gauna - Paradise - Free Background Music No Copyright Mus
Misael Gauna – Beautiful Day - Free Background Music No Copyright Music
Laszlo - One Step Away [NCS Release]
WARNING: This video is only for demonstration. I don't take any responsibility for damage to things, people and animals.
