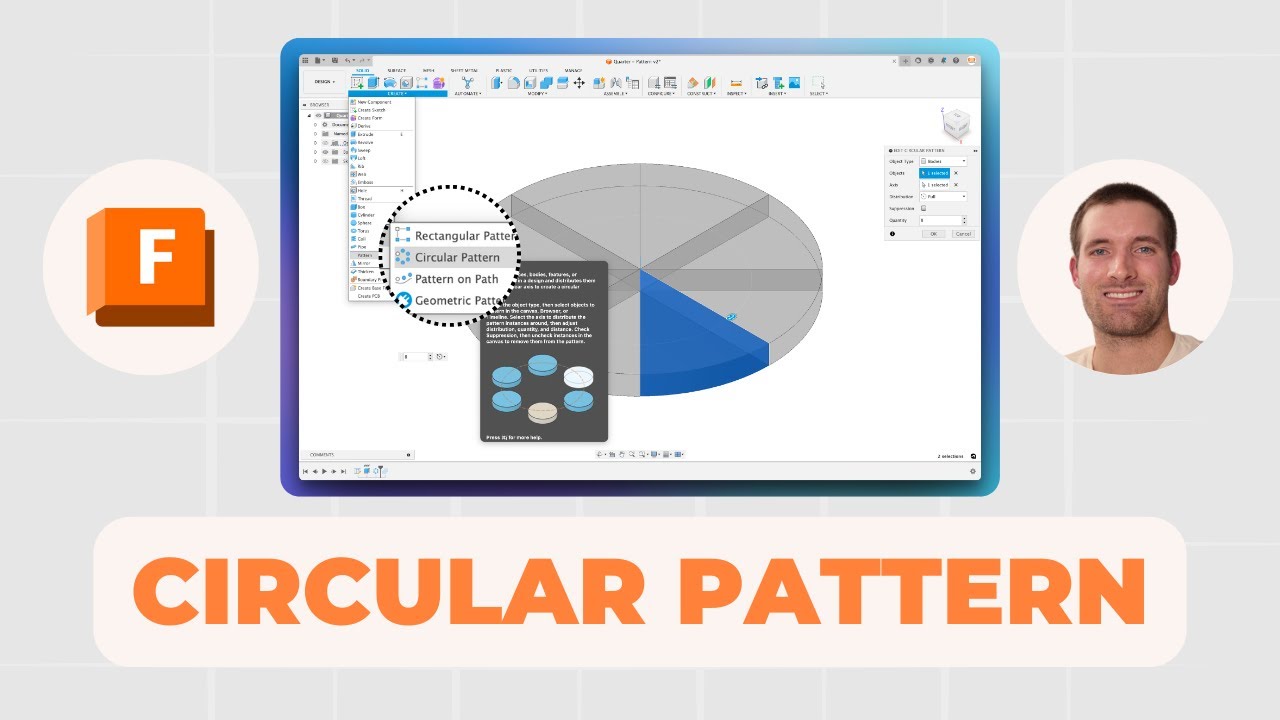

Make a Quarter in Fusion - Circular Pattern Method
Автор: Fusioneers
Загружено: 2024-06-04
Просмотров: 124
Описание:
Applying a Circular Pattern is a common way to efficiently model parts in Fusion. In this tutorial, we will create a quarter using a circular pattern - just like a pizza! We’ll also learn how to combine bodies and use the horizontal/vertical constraint to create some pizza slices!
Techniques Mentioned in this Video
Creating a Centerpoint Circle (c)
Sectioning a circle using the Line (l) command
Using the Horizontal/Vertical Constraint
Applying a Circular Pattern
Combining multiple Bodies
Editing a Sketch in the Timeline
Editing a Pattern in the Timeline
Editing a Combine in the Timeline
The PDF with and without the dimensions is provided below so that you can try creating the part by yourself before watching the video by either measuring an actual quarter or printing the PDF off on a sheet of paper and measuring the profiles.
If you have access to a 3D printer, try printing your quarter off to see how close your model is to an actual quarter!
