Section of Solid Square Prism | Section Plane inclined to HP

Описание: To draw section of solid Square prism, the sectional top view and the true shape of section. Explained as step by step procedure when section plane inclined to HP.

Subscribe:    / @rajagopalthangavelsforum

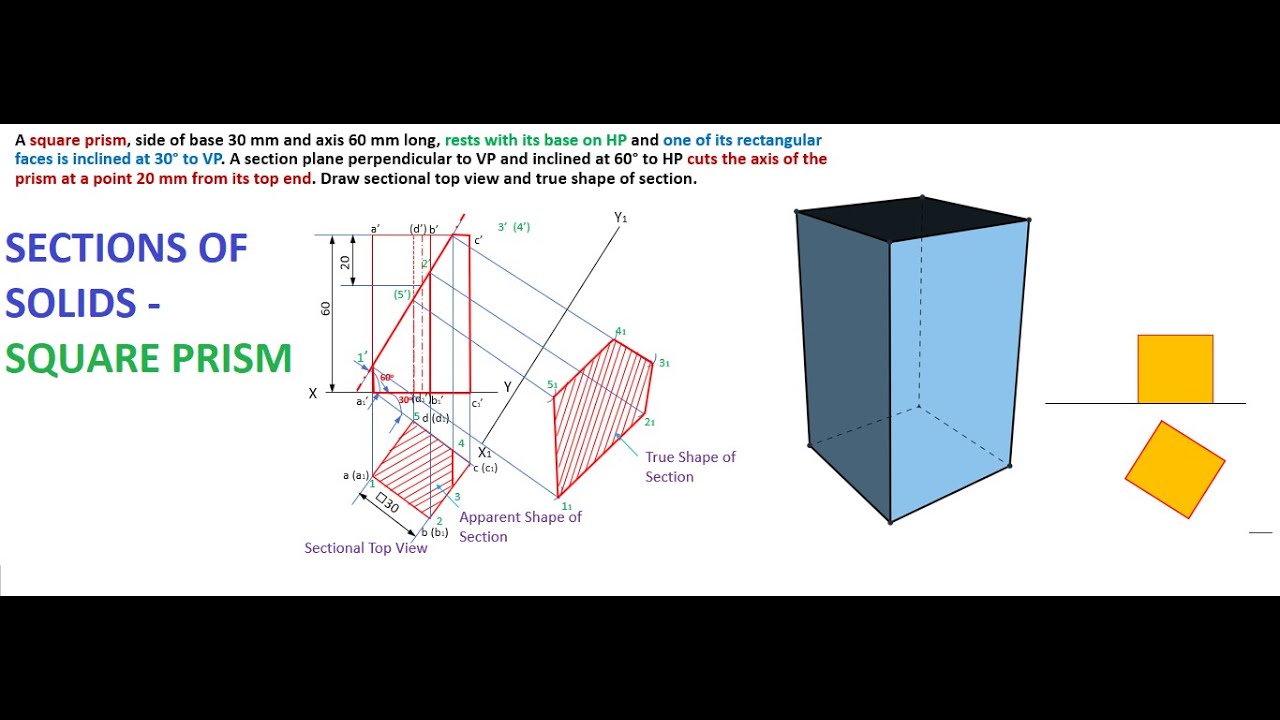

1. A square prism, side of base 30 mm and axis 60 mm long, rests with its base on HP and one of its rectangular faces is inclined at 30° to VP. A section plane perpendicular to VP and inclined at 60° to HP cuts the axis of the prism at a point 20 mm from its top end. Draw sectional top view and true shape of section.
   • Section of Solid Square Prism | Section Pl...

2.A square prism , side of base 40 mm and axis 60 mm long, rests with its base on HP such that one of its rectangular faces is inclined at 30° to VP. A section plane perpendicular to HP and inclined at 60° to VP passes through the prism such that a rectangular face which is making 60° with VP is cut into two halves. Draw the top view, sectional front view and true shape of the section.
   • Section of Solid | Square Prism |  Section...
3.A square prism , side of base 32 mm and 100 mm height is lying on its base on HP such that the edges of the base are equally inclined to VP. The prism is cut by a section plane passing through the midpoint of the axis such that the true shape of section is a rhombus of diagonals of 102 mm and 45 mm. Determine the inclination of the section plane with HP.
   • SECTION OF SOLIDS | SQUARE PRISM | RHOMBUS...

4. A square pyramid of base 30 mm and axis 60 mm long is standing on HP with its base edges equally inclined to VP. It is cut by a section plane perpendicular to VP and inclined at 30° to HP, bisecting the axis. Draw the sectional top view and the true shape of the section, if the upper portion is removed.
   • SECTION OF SOLIDS SQUARE PYRAMID |

5. A hexagonal pyramid, side of base 25 mm and axis 55 mm long, rests with its base on HP such that one of the edges of its base is perpendicular to VP. It is cut by a section plane perpendicular to HP, inclined at 45° to VP and passing through the pyramid at a distance of 10 mm from the axis. Draw the sectional front view and the true shape of section.
   • SECTION OF SOLIDS HEXAGONAL PYRAMID | Sect...

6.A hexagonal pyramid, side of base 25 mm and height 70 mm has the hexagonal end on VP, with two of its edges perpendicular to HP. A section plane perpendicular to VP and inclined at 30° to HP, cuts the pyramid at a point 8 mm from the axis and above it. Draw the sectional top view and the true shape of section.
   • Section of Solids Hexagonal Pyramid | Incl...

7. A cube of side 25 mm rests on HP on one of its faces with a vertical face inclined at 35° to VP. A plane perpendicular to HP and inclined at 50° to VP cuts the cube 3 mm away from the axis. Draw the top view and the sectional front view. Also find the true shape of section.
   • Section of Solids Cube | Section Plane inc...

8.A cylinder of diameter 40 mm and height 60 mm is having its axis vertical. It is cut by a plane perpendicular to VP and inclined at 30° to HP. The plane bisects the axis of the cylinder. Draw its front view, sectional top view and true shape of section.
   • Section of Solids Cylinder | Plane incline...

9. A cone, base 50 mm diameter and axis 55 mm long, rests with its base on HP. It is cut by a section plane perpendicular to VP, inclined at 45° to HP and passing through a point on the axis 35 mm above the base. Draw the sectional top view and true shape of the section.
   • SECTION OF SOLIDS CONE | Section Plane inc...

10. A cone, base 50 mm diameter and axis 60 mm long, rests with its base on HP. It is cut by a section plane perpendicular to HP, inclined at 60° to VP and at a distance of 10 mm from its axis. Draw the sectional front view and true shape of the section.
   • Section of Cone | Plane inclined to VP @ra...

11. A cone, base 50 mm diameter and axis 65 mm long, rests with its base on HP. It is cut by a section plane such that true shape produced is a parabola of base 35 mm . Draw the sectional top view and true shape of the section.
   • Section of Cone | Parabola as True Shape |...
