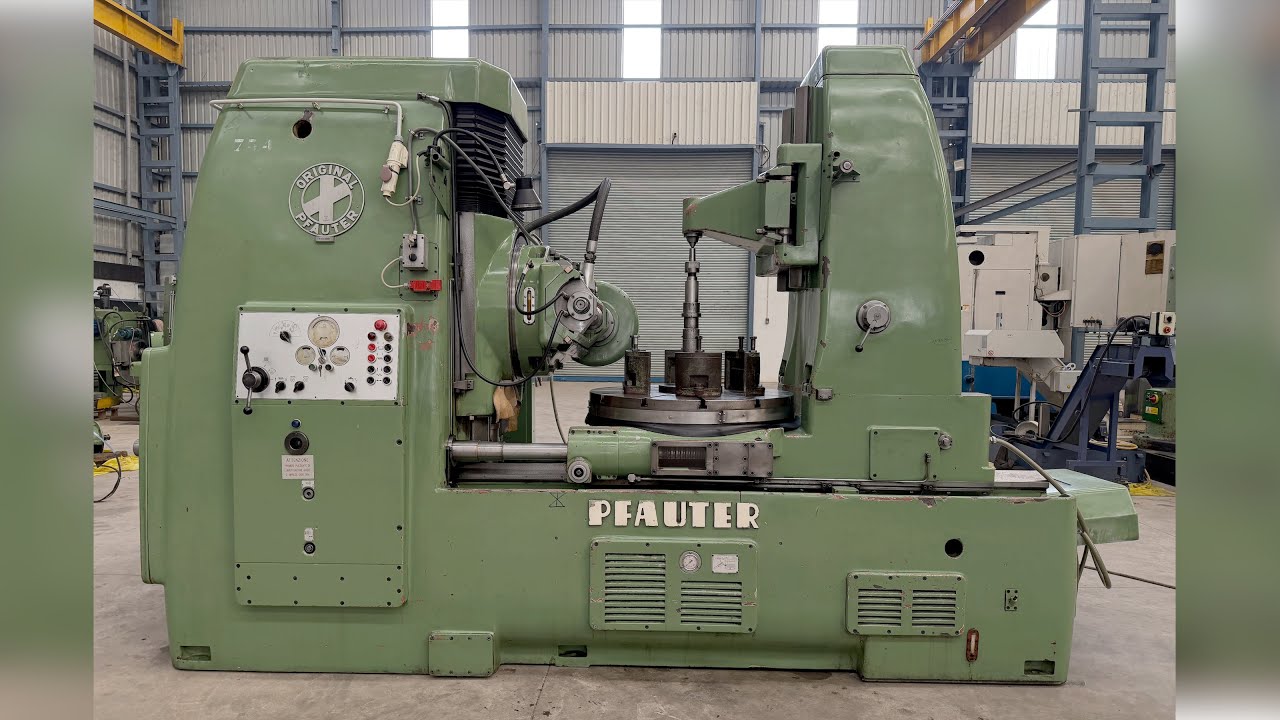

Pfauter (Germany) P-1250 Hydraulic Gear Hobbing Machine - Capacity 12 Modules x 1250 mm Diameter

Описание: Pfauter (Germany) make High-Production Hydraulic Gear Hobbing Machine in excellent working condition. The model of the machine is P-1250 and the Maximum Module Capacity is 12 Modules and Maximum Gear Diameter is 1250 mm. It is a Heavy-Duty, High-Speed, complete Auto-Cycle type Gear Hobbing Machine. The machine is capable of Radial Hobbing, Axial Hobbing, Tangential Hobbing, Radial-Axial Hobbing, Radial-Tangential, etc. The machine also has a Sliding type Support Column so it is not necessary to take off the support column even for larger diameter jobs. It is also equipped with a Hydraulically operated swivell-able tail-stock. The machine is capable of complete Auto-Cycle working and it can also be used in manual mode. The machine is complete with its Change Gears, Mandrels, many different types & sizes of Job Supports, Operating Manual, Coolant Tank and Pump, Leveling Pads, Covers, Splash Guards , Chip Conveyor, and many other accessories. The technical details are as follows -

Make - Pfauter (Germany)
Model - P-1250
Max. Module - 12 modules
Max. Diameter of the Gear - 1250 mm
Max. Vertical Travel of Hob-Slide - 590 mm
Table Diameter - 950 mm
Max. Hob Cutter Size - Diameter 220 mm x 260 mm Length
Max. Hob Shifting - 240 mm
Table Bore Diameter - 200 mm
Hob Cutter Speeds - 32 rpm to 200 rpm
Min. Distance between Center of Hob & Work-Piece - 60 mm
Max. Distance between Center of Hob & Work-Piece - 740 mm
Max. Diameter of Gear with Tail-Stock - 850 mm
Weight of the Machine - 15.5 tons (Approximately)
It is a High-Production Auto-Cycle type Heavy Duty Gear Hobbing Machine.
Continuously variable Hob Rotation Speeds & Feed Rates of Travels.
Complete with Change Gears, Mandrels, Job Supports, Leveling Pads etc.
Complete with Covers & Splash Guards, Coolant Tank, Pump & many other accessories.
Operating Manual of the machine is available.
Machine is in excellent working condition.
