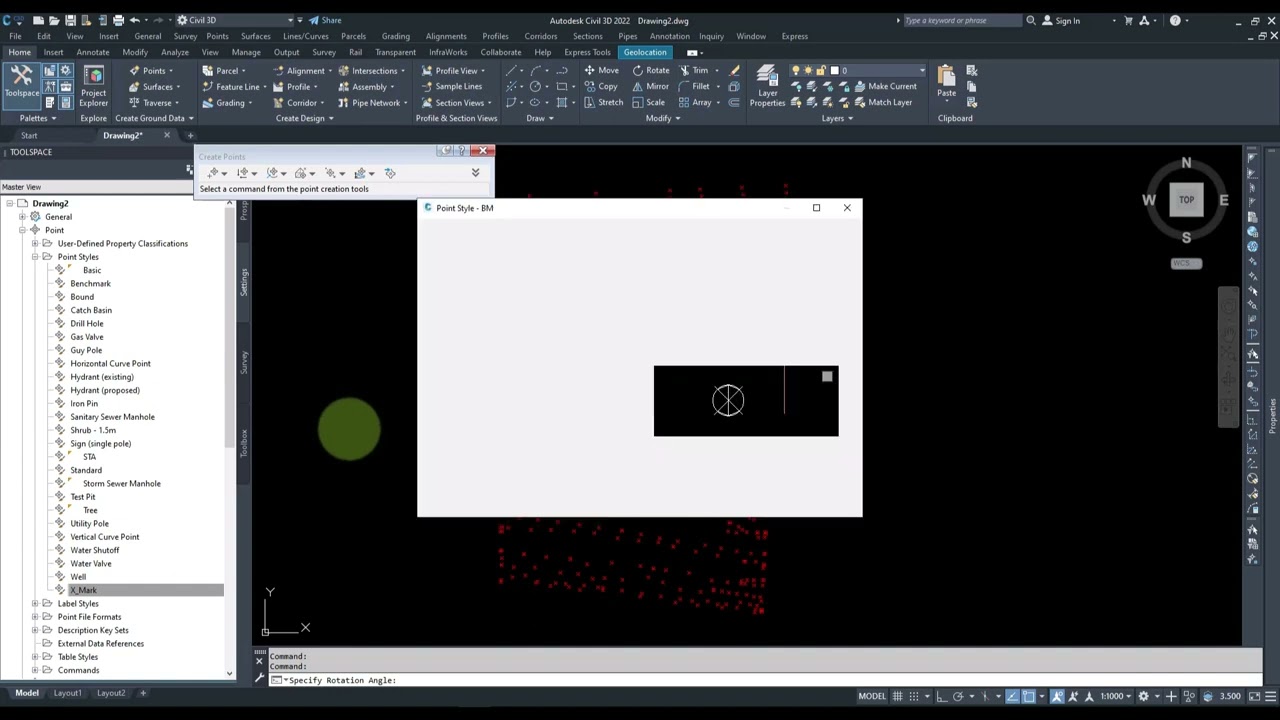

Land Fill Project Calculate Cut Fill Volume with AutoCAD Civil 3D (Part 1) | Civil 3D for beginners
Автор: Engineering Up Skills (EUS)
Загружено: 2022-12-16
Просмотров: 137
Описание:
In this video we'll show you how to create surface and calculate cut fill volume project step by step (Land Fill Project). Also we provide the data files for who want to learn Autocad Civil 3D and practice along with us.
To download data for this project: https://engineeringupskills.com/downl...
0:00 Create new project file
0:18 Project setting (Units and Zones | Coordinate System)
0:57 Prepare points data from excel to C3D
5:27 Import Points into C3D
6:39 Create point styles
9:30 Create label styles
14:35 Apply point styles and label styles into project
15:30 Create Description Key Sets
21:34 Create new point groups
23:40 Apply Key Sets into point groups
24:58 Create TIN Surface
26:44 Display contours
27:57 Arrange point group to order display on model
31:11 Change colors of contour lines
31:51 Show the contour labels
