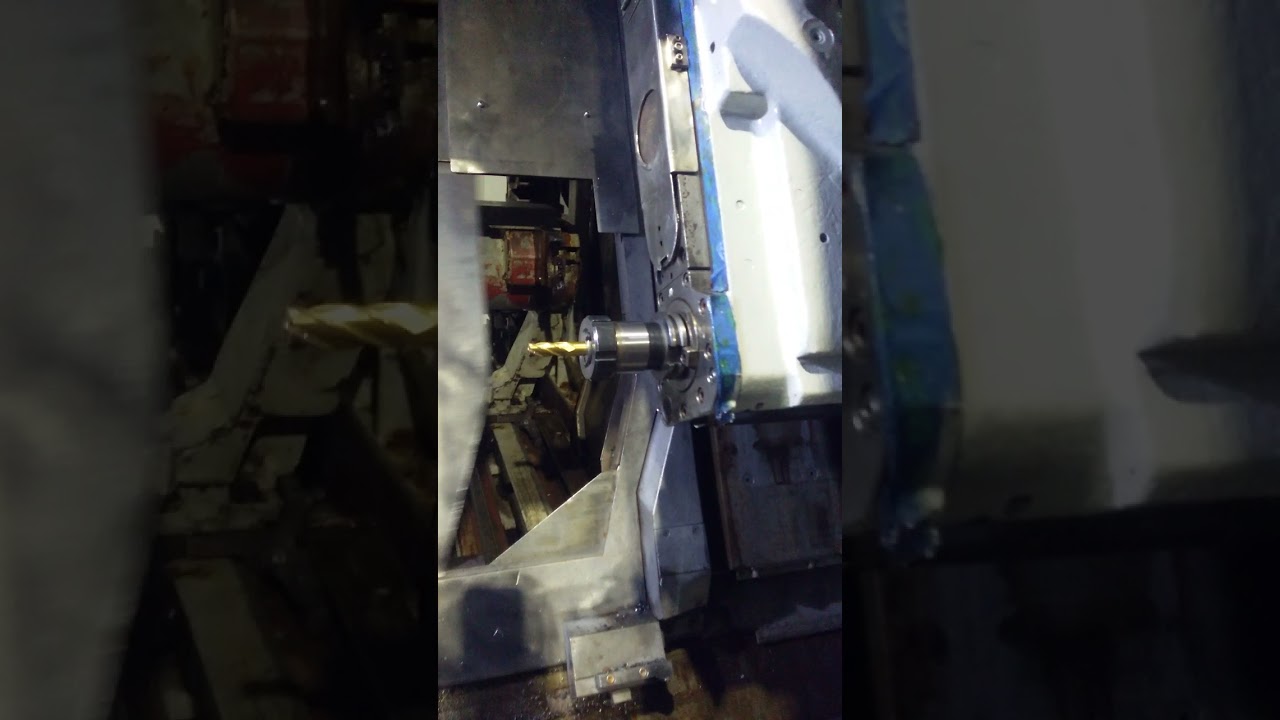

Mazak Integrex 35-YR CNC Turning Center with Live Tooling & Y-Axis
Автор: RTT CNC, Machine Tool Repair and Service
Загружено: 2015-11-17
Просмотров: 3683
Описание:
machine for sale, info: [email protected]
Mazatrol Pc FUSION 640 MT
Max. Swing 22.5"
Max. Swing Over Carriage 18.5"
Spindle Nose/Spindle Bore/Bar Capacity A2-8/3.46"/3.0"
X-Axis Stroke 17.75"
Z-Axis Stroke 40.1"
Y-Axis Stroke +/- 3.54"
Spindle Speed 35-3000 RPM
Spindle Horsepower 40 HP AC
Type of Turret 2 Position with ATC
Magazine Capacity 40 ATC
Rotary Tool Horsepower 10 HP
Rotary Tool Spindle Nose 40 Taper
Rotary Tool Spindle Range 15-6000 RPM
Rapid Traverse (X/Y/Z Axis) 472 IPM/708 IPM/393 IPM
Tailstock Spindle Center/Diameter/Quill Stroke MT#5/3.94"/5.12"
Tailstock Body Travel 35.50"
Floor Space 215" x 89.4" x 119"
Machine Weight 14,990 lbs. approx.
Equipped With:
Mazatrol Fusion 640
Automatic Tool-Eye
40 Tool Magazine
Tailstock
Chip Conveyer
12 Chuck
