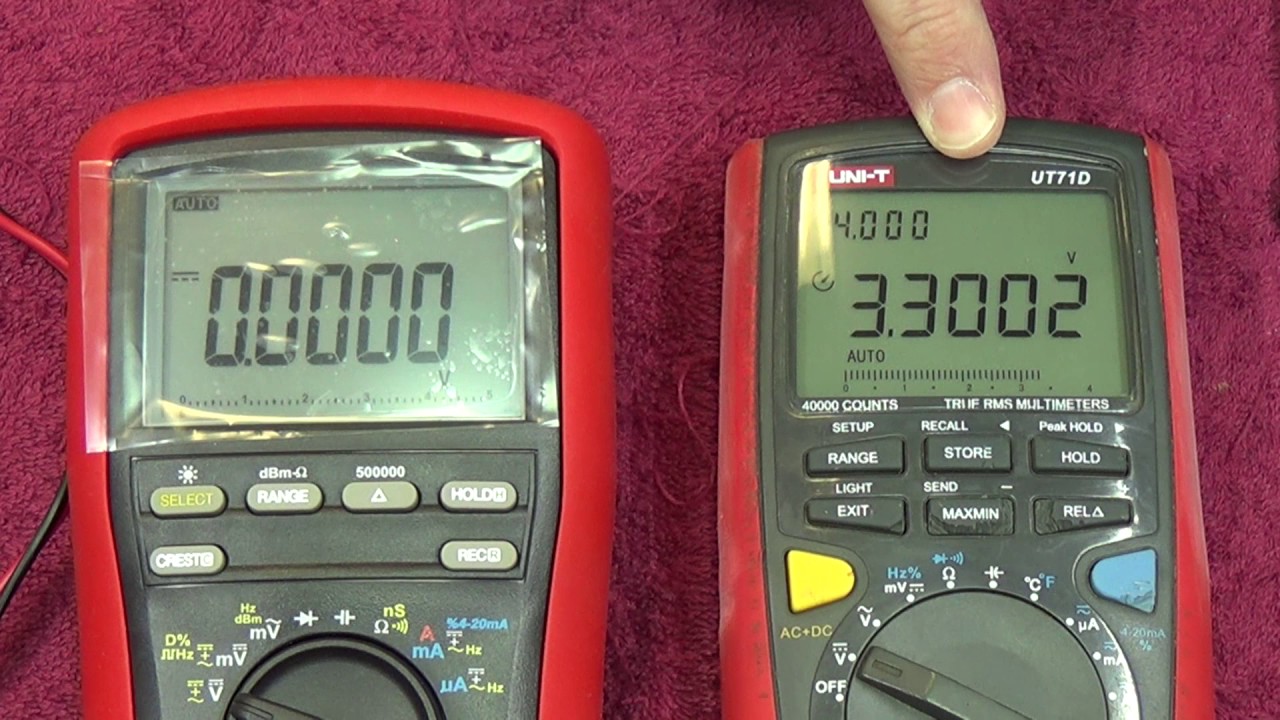

Multimeter Review / buyers guide: UNI-T UT71D Part2

Описание: ebay UNI-T UT71D link
https://www.ebay.com/itm/262733570720


If you are buying electronic components, test equipment or consumables, consider visiting my eBay store https://www.ebay.com/str/zibootool.

Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/1000V (0.025%+5)
AC Voltage 4V/40V/400V/1000V (0.4%+30)
AC Bandwidth 100KHz
DC Current 400µA/4000µA/40A/400mA/10A (0.08%+8)
AC Current 400µA/4000µA/40A/400mA/10A (0.5%+15)
Resistance 400W/4kW/40kW/400kW/4MW/40MW (0.3%+8)
Capacitance 40nF/400nF/4µF/40µF/400µF/4mF/40mF (1%+20)
Temperature (°C) -40°C ~ 1000°C (1%+30)
Temperature (°F) -40°F ~ 1832°F (1.5%+50)
Frequency 40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/40MHz/400MHz (0.01%+8)
Duty Cycle 10%~90% (1%+30)
4~20mA Loop 0~100% (1%+50)
Power Measurement
Special Functions
Fused 10A Range
Auto Ranging
Current Measurement Alarm
Function Set Up
Auto Ranging
Votage & Current :
AC + DC Measurement
Data Logging 9999
Data Recall
Diode
Continuity Buzzer
True RMS
Peak Hold
Max/Min Mode
Relative Mode
Data Hold
USB
Double Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display

Input Impedance for
DC Voltage Measurement
DC 200mV : Around 2.5GW
All Other Ranges : 10MW

Max. Display 40000
Analogue Bar Graph

GENERAL CHARACTERISTICS
Power 9V Battery (6F22)
LCD Size 73 x 50 mm
Product Colour Red and Grey
Product Net Weight 384g
Product Size 200 x 93 x 40mm
