Rigol MSO5000 Mixed Signal Oscilloscope: Introduction/Review

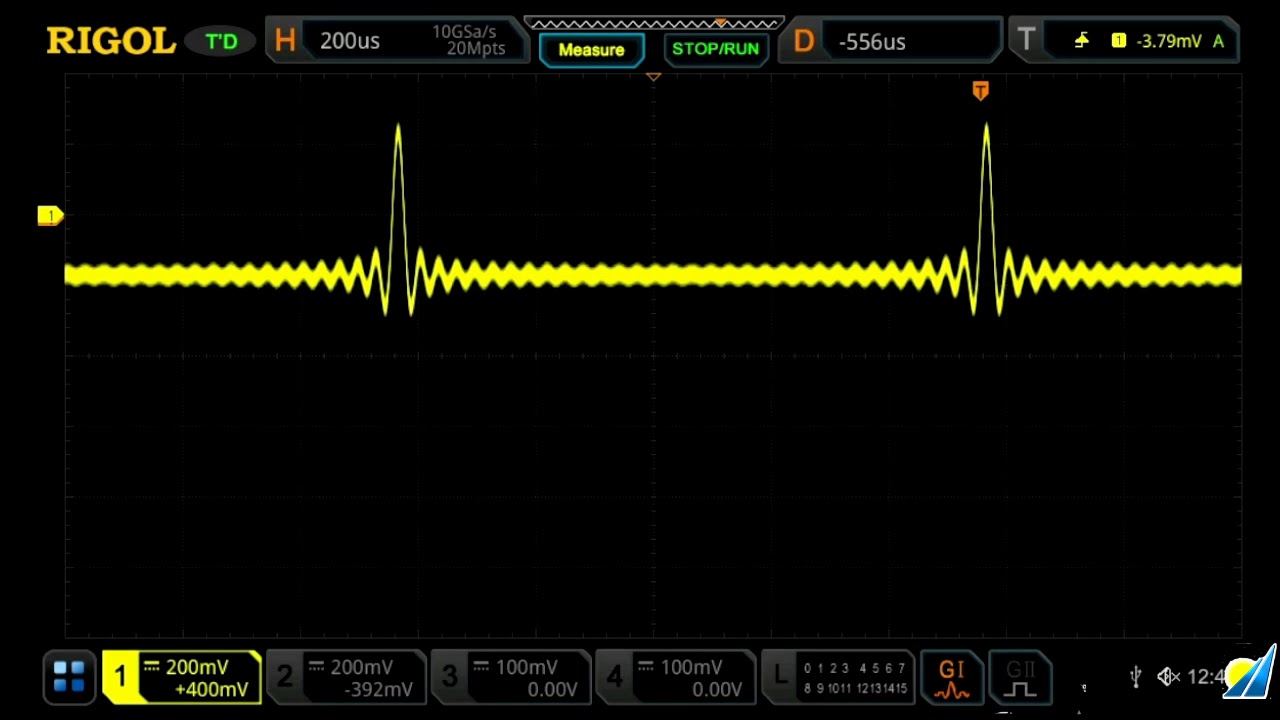

Описание: The MSO5000 is a series of high-performance 70-350MHz 2/4-channel oscilloscopes based on RIGOL’s advanced UltraVision II technology, with optional 16-ch logic analysis capability. Sampling at 8GSa/s, and with a huge 100Mpt (200Mpts opt.) memory, and fast waveform capture rate (over 500,000wfm/s), the MSO5000s integrate 7 independent instruments into one: digital oscilloscope, a logic analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter, a 6-digit frequency counter and totalizer, and a serial protocol analyzer. The 9” touch-screen LCD offers 256-levels of intensity grading with color persistence. With convenient control via a capacitive multi-touch screen or conventional knob/keystroke entry, all of the MSO5000 series products support multiple channels, bandwidths, and the upgrade of the analysis software.

A unique feature of the MSO5000 oscilloscopes is that their upgradeability: 2-channel models can be upgraded to 4-channel, 16-ch logic capability, higher bandwidth, or adding a 2-ch 14-bit 25MHz arbitrary waveform generator at any time. All MSO5000 models come with the built-in hardware required for these features. All that is need to make an MS5072 oscilloscope into a full MSO is the purchase of a PLA2216 16-ch probe set, or just a software key for the other capabilities.


Auto measurement of 41 waveform parameters; full-memory hardware measurement function
Multiple serial protocol triggers and decodes
Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
Built-in advanced power analysis software (option)
Integrates 7 independent instruments into 1
Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
Web Control remote command
Unique online version upgrade
Novel and delicate industrial design, easy to operate
Customizable one-key “Quick” operation
HDMI output for connecting external displays or projectors.

Integrating the many functions of multiple instruments, users can now have more choices in selecting their desired product based on their needs, helping save budget costs while enjoying superior performance and upgradeability. http://www.saelig.com/category/mso500...
