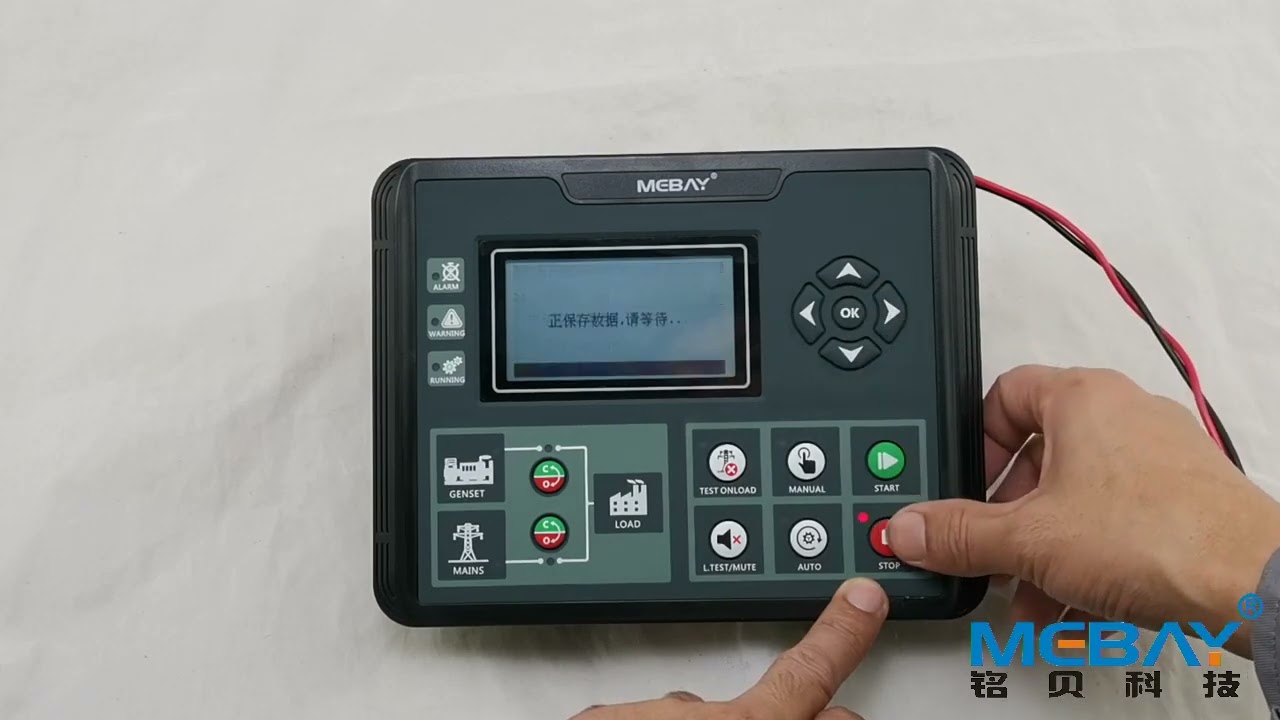

Mebay Diesel Genset Controller DC52D MK2 Same as Deep Sea DSE6120

Описание: Dual core 32bit high performance single chip microcomputer.
3.5 inch 240 * 128 high-resolution LCD screen, Available in 6 languages, user’s language set if necessary.
Indicator and number display through UI surface.
Acrylic material is adapted to protect the screen.
Silicone panels;
USB Port: parameters can be set even without power through USD port to monitor in real time.
With RS485 communication port, can achieve “Three Remote” functions via MODBUS protocol.
Various kinds of parameters display.
Input/output function, status can be shown directly.
Real time clock inside: preset time operate and auto maintenance is available. Genset working plan can be set as per week or month.
Maintenance countdown function, can set maintenance time or date.
The black box function can save the relevant parameters of the unit when the fault alarm occurs in real time, and it is convenient to find the cause of the fault.
Totally 6relay’s output, among which 4 relay output can be self-configurable, each relay can be set as max 20 functions, besides, there are 3 groups as non-contact terminals.
With 5 switches input, up to 20 functions optional;
3 sensor simulation input connectors, the oil pressure sensor is compatible with voltage signal input, and various display units can be configured.
Battery charging control function,which can protect the battery according to battery voltage status.
Sensor can be self-defined by front face button or PC software.
Adapt to 3P4W,1P2W,2P3W(120V/240V,50/60HZ)
Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.
Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.
Standard water-proof rubber gasket. The waterproof can reach IP54
Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
