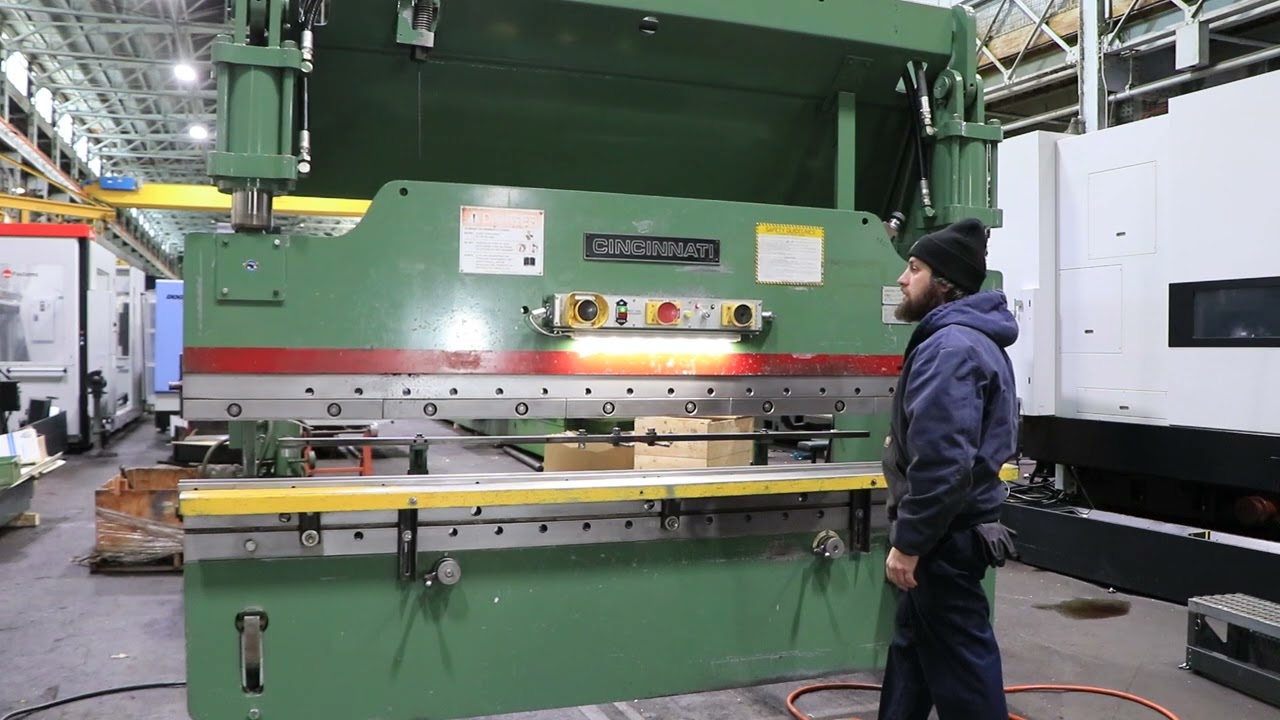

90 TON X 10' CINCINNATI HYDRAULIC PRESS BRAKE

Описание: https://www.machineryvalues.com/inven...

90 TON X 10' CINCINNATI HYDRAULIC PRESS BRAKE
MODEL 90CBX8 S/N 47006 NEW 1991

Capacity ............................. 90 tons
Bending capacity ..................... 10' x 12 gauge
..................... 5' x 1/4"
Distance between housings ............ 8' 6"
Stroke ............................... 8"
Throat ............................... 7"
Overall die surface .................. 10"
Die space - open ..................... 15"
Closed ............................... 7"
Ram speed: High ...................... 150 ipm
Medium .................... 71 ipm
Low ....................... 21 ipm
Return .................... 136 ipm
Motor ................................ 15 HP

Approximate overall dimensions ....... 60 D x 120 W x 116 H
Approximate weight ................... 14,000 lbs.

Machine is equipped with:
Manually adjustable back stops
Lower die rail
3-speed (low / medium / high)
Adjustable tonnage control
Adjustable stroke and speed change w/ position indicator
Single / Inch Modes
Palm buttons mounted on machine face with E-Stop
Manuals
