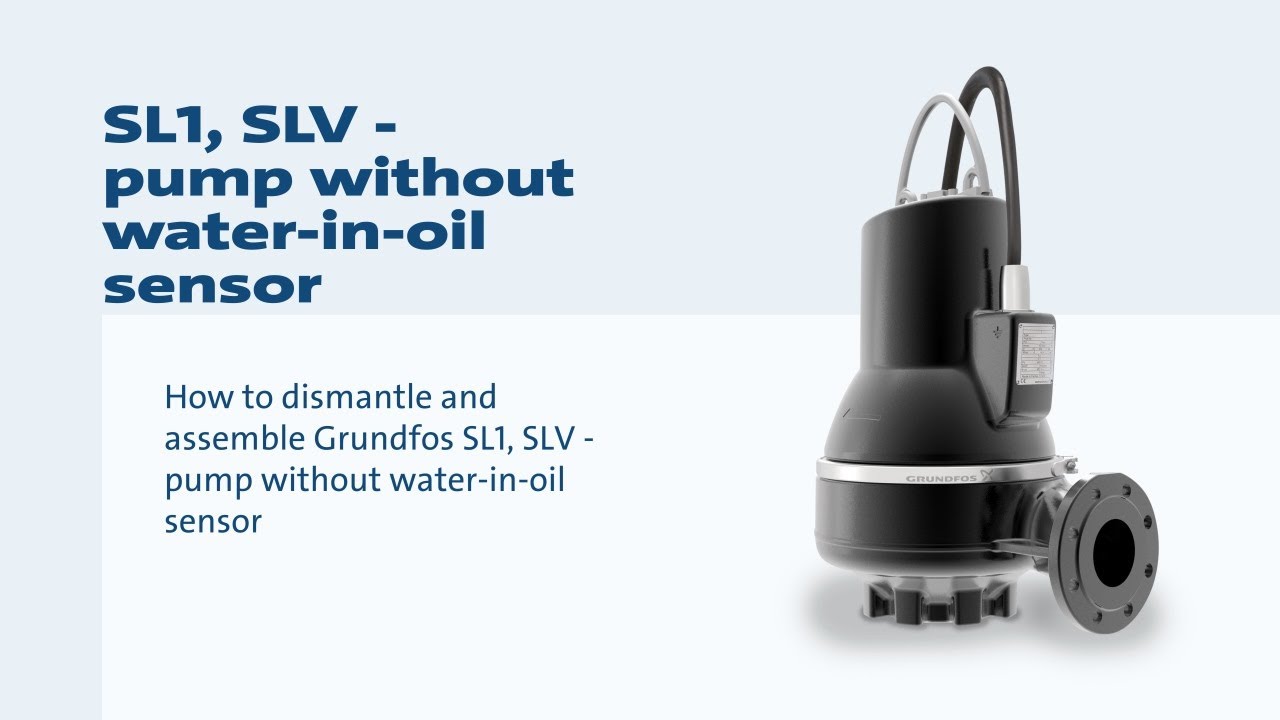

Как демонтировать и собрать Grundfos SL1, SLV — насос без датчика определения воды в масле

Описание: See how a Grundfos service specialist dismantles and assembles Grundfos SL1, SLV - pump without water-in-oil sensor and find out what the job requires and how it is performed.

Dismantling:
00:30 Removing the cable
00:57 Removing the pump housing
01:26 Removing the impeller
02:12 Draining the oil
04:06 Removing the shaft seal
05:30 Removing the shaft with bearings and rotor
07:29 Removing the bearings

Assembly:
08:28 Fitting the bearings
09:49 Fitting the shaft with bearings and rotor
12:40 Fitting the shaft seal
15:36 Filling with oil
16:38 Replacing the wear and seal rings
18:18 Fitting the impeller
19:06 Fitting the pump housing
19:40 Fitting the cable

Learn more about SL1 and SLV pumps, spare parts, service kits and additional services and solutions provided by Grundfos on https://product-selection.grundfos.co... (SL1) and https://product-selection.grundfos.co... (SV) and do not hesitate to contact us via http://www.grundfos.com/pleasecallus.

DISCLAIMER

This service video provides “how to” guidance for Grundfos products and is aimed only at skilled, trained personnel.

N.B. Any stricter local health and safety regulations and requirements take precedence over this guidance. The video and any information in it is provided on an “as is” basis and without any liability and/or warranty to the extent permitted by applicable law.

Grundfos reviews and updates the information provided on a regular basis. However, instructions may have changed since publication of this video and therefore please always check the latest Service Instructions and the Installation & Operating Instructions of the related product.

These documents can be found on https://product-selection.grundfos.co... (SL1) and https://product-selection.grundfos.co... (SV).

Recorded: December 2008
