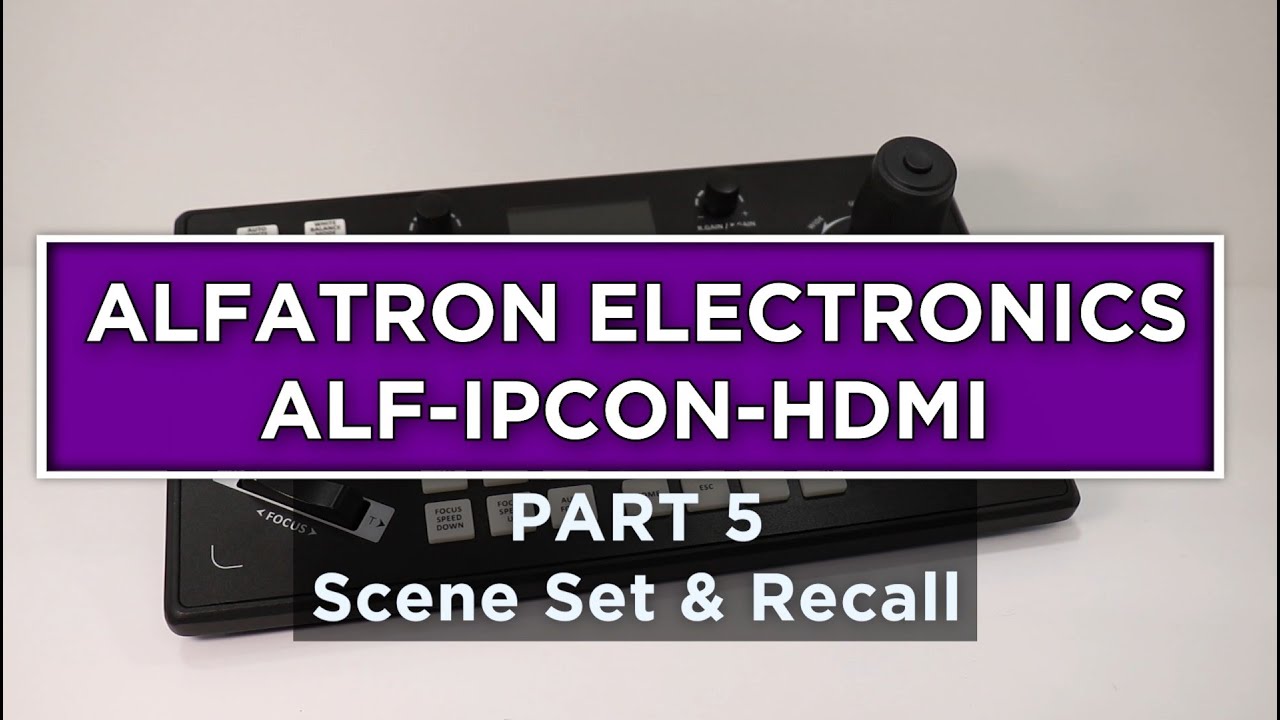

IPCON-HDMI Series: Part 5 - Scene Set Recall

Описание: In Part 5 we show you how to setup and recall Preset Scenes on the IPCON-HDMI.

The ALF-IPCON-HDMI can connect up to 255 cameras via either analog mode or network mode. It supports various control protocols, allowing each numbered camera to independently set its control protocol. Network protocols: Onvif; Visca over IP (UDP); Visca over IP (TCP); Sony Visca; NDI; and analog protocols: Visca; Pelco-D; Pelco-P. Additionally, the network interface supports PoE 802.3af standard power supply. The device features a four-axis joystick for precise control of the camera’s pan- tilt movements, enabling simultaneous motion across horizontal, vertical, and zoom functions. This product allows for independent and precise control of the camera’s zoom and focus, with eight-speed levels to freely adjust zoom/focus speed. It supports connection to a PC for web control, where device configurations can be imported/ exported, camera settings can be added or modified, and device upgrades can be performed.

The product supports HDMI video output. During video transmission control of compatible network cameras, the controller’s HDMI OUT interface connects to an HDMI cable for real-time output of the camera feed to a display device (1080P/30Fps), however, cameras utilizing analog protocols cannot output video via this method.

This product offers an intuitive set of front panel buttons and a display screen, supporting camera control through the front panel buttons.

Features:
Supports both network and analog control modes, with an independent IP address in network
Supports network protocols: Onvif; Visca over IP (UDP); Visca over IP (TCP); Sony Visca; NDI; and analog protocols: Visca; Pelco-D; Pelco-P.
Supports HDMI video output, allowing the controller to provide real-time output of the camera feed (1080P/30Fps) during camera
Supports a four-axis joystick for precise control of the camera’s pan-tilt, enabling simultaneous movement across horizontal, vertical, and zoom
Supports independent and precise control of the camera’s ZOOM and FOCUS, with eight-speed levels to freely adjust zoom and focus
Supports connecting the device to a PC for web control, allowing for importing and exporting device configurations, adding or modifying camera settings, and performing device upgrades and other extended
Supports PoE standard 802.3af power supply.
