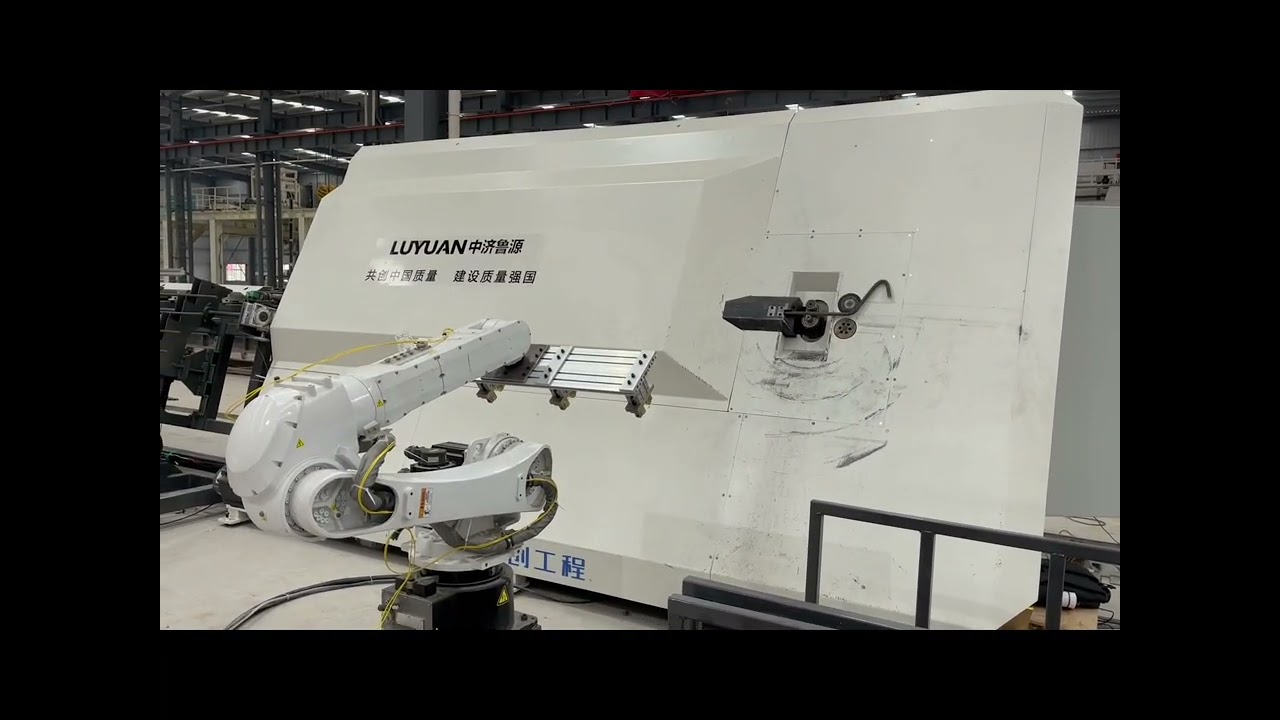

16mm wire rod bar integrated stirrup bending machine
Автор: LUYUAN ZHONGJI MACHINERY
Загружено: 2025-02-23
Просмотров: 38
Описание:
whatsapp business +8619953758802
wechat 17616509110
LYWG-16DT Steel wire and bar integrated bending machine
It creatively combines the European curve straightening technology, the rapid bending technology of bar and wire reinforcement and the cutting technology of fixed size to achieve a multi-purpose machine.
Parameters
Equipment Model：LYWG-16DT
Wire processing range Φ6-12
Straightening method of wire Curve straightening
Bar processing scope Φ14-16
Bar loading method Automatic
Maximum stirrup diagonal side length 1500mm
Maximum wire feed speed 100m/min
Maximum bar feed speed 70m/min
Maximum bending velocity 1100°/s
Length accuracy ±1mm
Angular accuracy ±1°
Equipment power (Production line) 50KW
Equipment power (Host machine) 38KW
Number of operators 1 Person
Production efficiency 1 tons/hour
Occupied area（Main machine） 4.4m×1.7m
Occupied area（Production line） 20m×4.5m
