Replace Playstation 4 PS4 ADP-200ER Power Supply With PC ATX Power Supply PSU

Описание: To replace Playstation 4 power supply with an old pc atx psu, just pull out old power supply. There will be 4 wires on the ADP-200ER power supply pinout and two posts. This may be different with different models. The pinouts are labelled on the inside of Playstation power supply.

4 wire pinout connecting motherboard to PSU:
The first and last wires labelled 5VSB and ACIN_DET should be twisted together and connected to the red 5 volt wire. The second wire labelled GND should be connected the black psu wire. The wire labeled ACDC_STBY can be ignored.

Large posts which snapped into bottom of Playstation power supply :

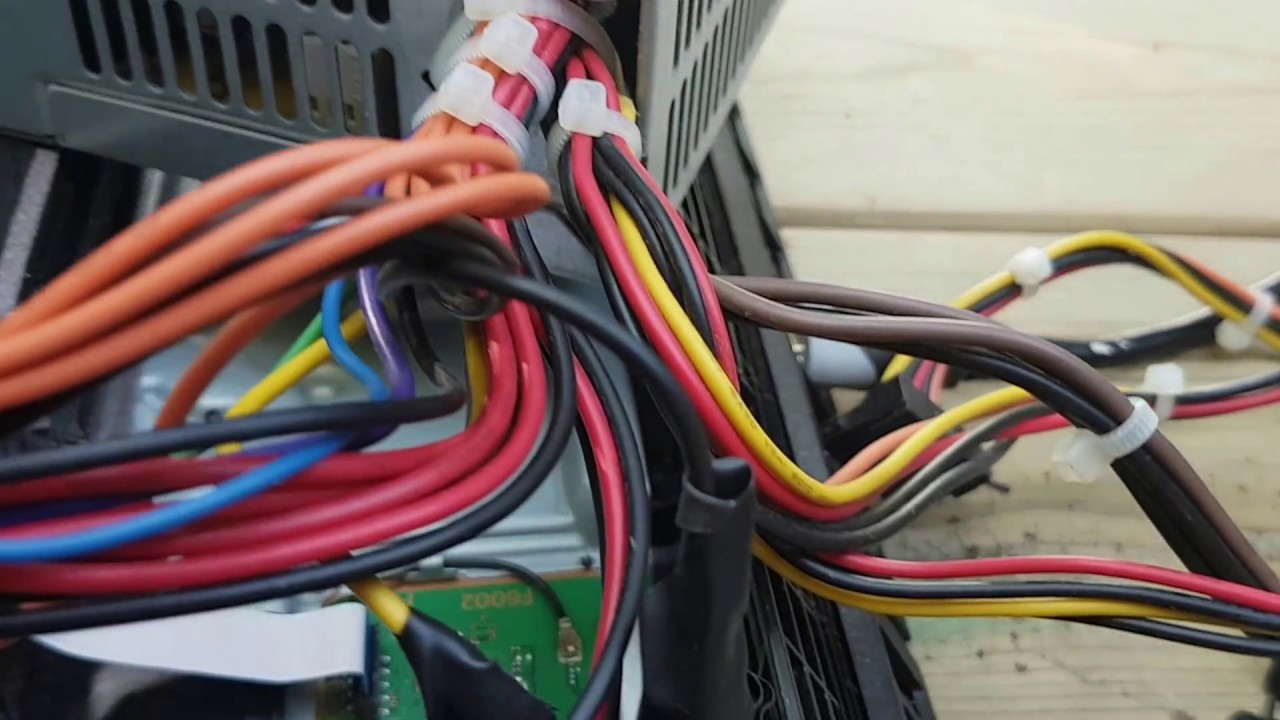

The yellow 12v wire should be connected to the inside post(also labeled on the inside of PS4 PSU) and another black wire can be connected to the outside post (also labeled on PS4 Psu)

The green wire on the PSU is the switch, so just connect it to another black wire to leave it always turned on, and either use the switch on the PSU itself, or a switch on a power bar or something.

Hope this saves some time researching, as it took us forever to figure this out!

Also of course I'm not responsible for your ps4 if something messes up and you brick it so follow these instructions at your own risk!
