FrSky R9 module installation (X-Lite Pro Remote, R9 MM-OTA Receiver, R9M Lite Pro Transmitter)
Автор: furulevi
Загружено: 2020-09-03
Просмотров: 3584
Описание:

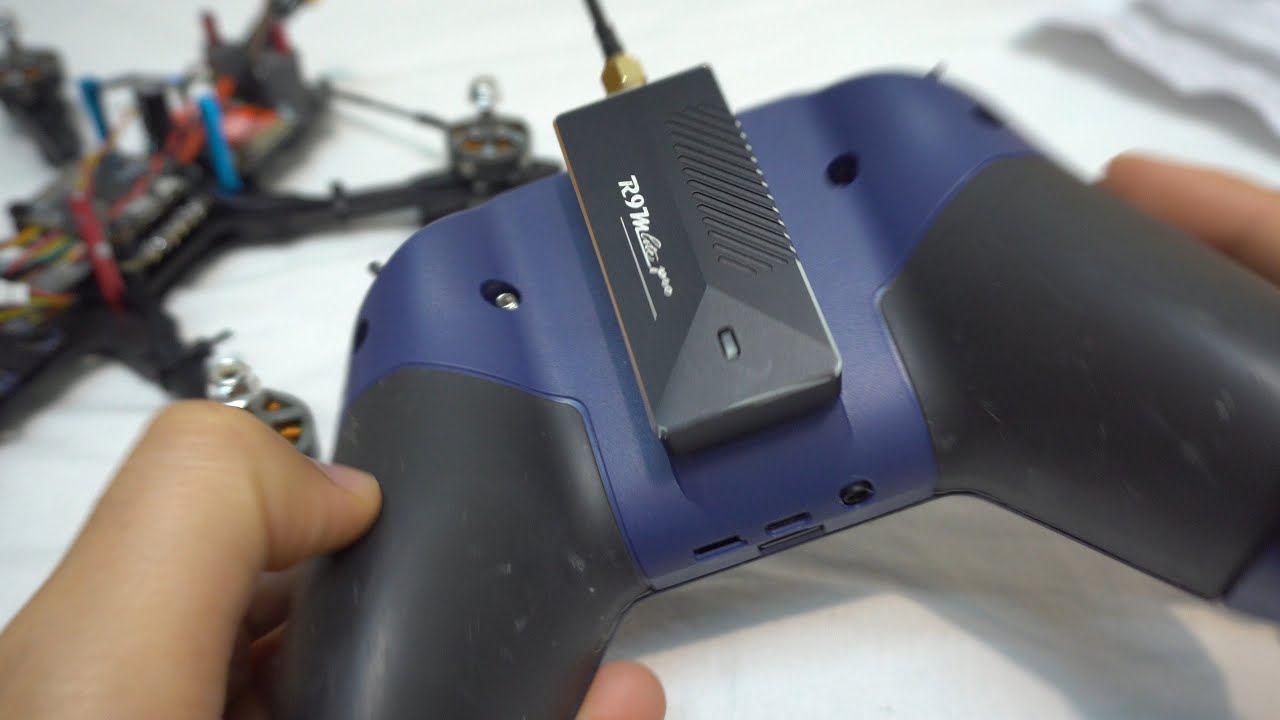

insert "R9M Lite Pro" module into Taranis X-Lite Pro radio
power ON Taranis X-Lite Pro
long press small joystick to the right
go to 2nd page (small joystick to the right)
at "External RF" set the Mode to R9MLP ACCESS
at "Internal RF" set the Mode to OFF
at Module, Reg, press down the small joystick
"Waiting" (beep, beep, beep sound)
Hold button of receiver and meanwhile power ON drone (continuous red, green LED on receiver)
go to "ENTER" and press down the small joystick, "Registration OK", Red Green LED should flash
Power OFF drone
At receiver 1 go to BND
Power ON drone
R9MINI-0, press down the small joystick
if antenna has blue line select 915 MHz, Bind successful
*if the radio is not binding to the receiver then update the firmware of both the transmitter and receiver using the same type of firmware (FCC, FLEX or LBT) and same frequency ► • Firmware update (FrSky R9 MM-OTA Receiver;...
