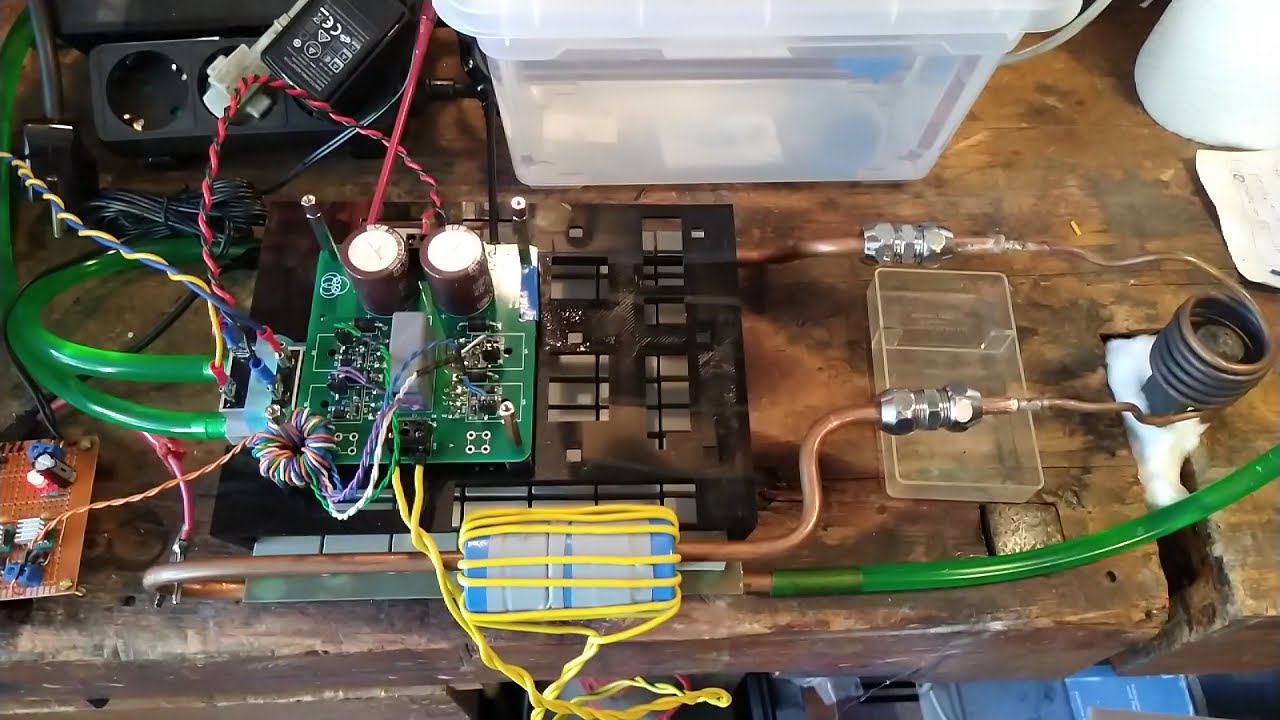

Full Bridge Induction Heater - first tests at 2.1kW
Автор: Dickes F
Загружено: 2022-06-24
Просмотров: 4946
Описание:
DE: Heute auf Englisch, mal als Experiment :)
At first sorry for my bad english, the video was unscripted.
Today I will show you the current state of my induction heater prototype.
I have been working on a universal H-Bridge PCB for a while. This will also be used in future Tesla coils and such.
Here are some additional specs:
Resonance capacitor: 8.4µF (84 x 0,1µF all parallel)
Maximum power draw about 2.1kW
Transformer material: N30 from TDK
The idea is to use the finished build for forging knives and tools as well as heat treatment.
It is planned to utilise a µC for controll of frequency and safety functions like over-current-detection in the H-Bridge circuit and over temperature shut-down.
