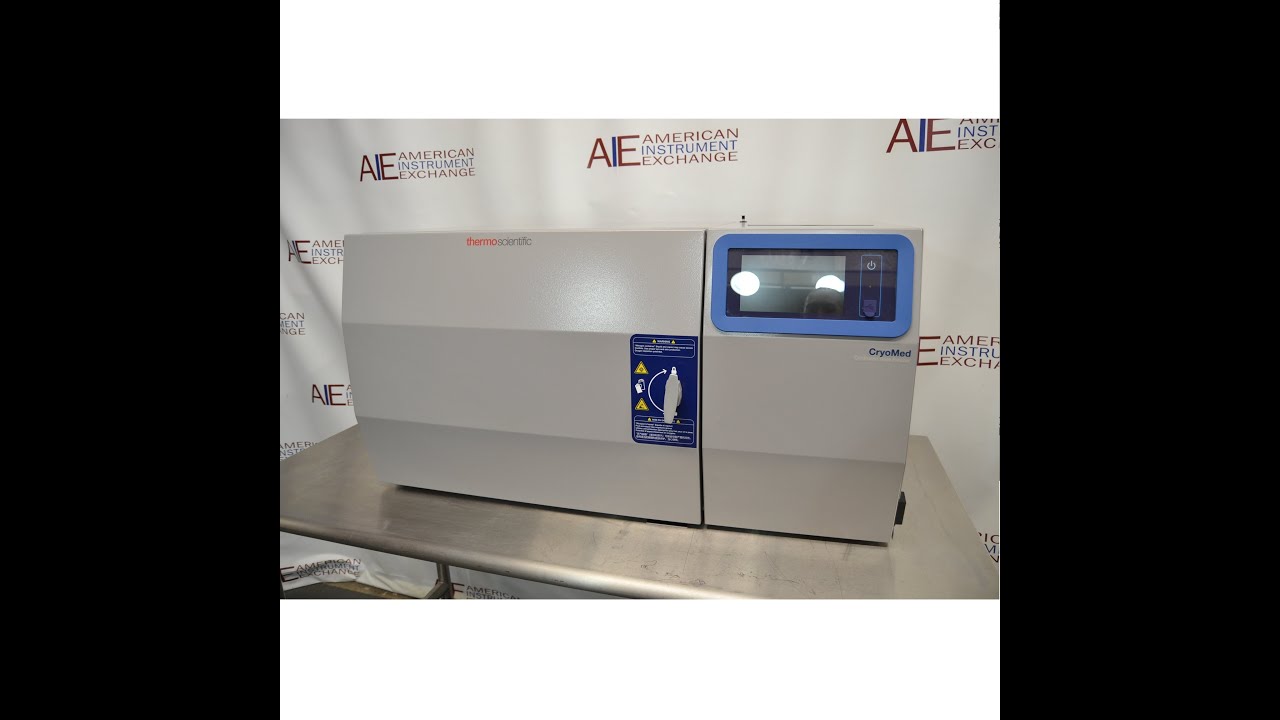

Thermo Scientific CryoMed Controlled Rate Freezer (1800J CRYOGEN)

Описание: Thermo Scientific CryoMed Controlled Rate Freezer
https://www.americaninstrument.com/

Thermo Scientific CryoMed Controlled-Rate Freezers (CRF) are designed with reliability, protection, and data traceability in mind for your sample preparation needs. The CryoMed model TSCM34MA provides a 1.2 cubic foot/34L capacity chamber and temperature range from -180°C to +50°C.

Thermo Scientific CryoMed TSCM34MA specifications
Front loading design
USB data export with on board data logging
Touchscreen user interface
Dual solenoid valve for LN2 injection balance
Includes 90-day warranty
Thermo Scientific CryoMed Controlled Rate Freezer features

For customers in research, cell and gene therapy, vaccine production, and biobanking, the CryoMed Controlled-Rate Freezer (CRF) provides precise, repeatable freezing results that protect samples from intracellular freezing. The CryoMed CRF features enhanced data traceability via a touch screen user interface and offers customizable freezing profiles while supporting 21 CFR part 11 and GMP needs.

The TSCM34MA offers real-time run monitoring for sample protection. The chamber and sample temperatures are monitored by Type T thermocouples, eliminating lag time and providing “real time” responsiveness. Standard alarms alert users of thermocouple failures, heater malfunction, high/low temperature limits, temperature tracking, power failure, and completion of run.

The dual solenoid valves are designed to balance LN2 injection volume for precise temperature control and accelerated freezing. Preventative maintenance indicator for LN2 solenoid replacement limits downtime and allows operations manager to plan for maintenance. Temperature control and uniformity are achieved via an air-handling and liquid nitrogen injection ring system.

Other features include an intuitive touchscreen display allows for easy set-up, operation, and review of a freezing run; six pre-set freezing profiles and space for up to 14 user-defined, “custom” freeze profiles; integrated touchscreen UI logs usage and events to support 21 CFR part 11 requirements; USB data export of .pdf file run logs support 21 CFR part 11.

User security and 3 levels of user accessibility; "run last” feature allows the same profile to be run consecutively with the touch of a button; PC interface software provides remote operation capabilities, run review, and custom profile creation.

Thermo CryoMed TSCM34MA additional specifications
Capacity (English) 1.2 cu. ft.
Capacity (Metric) 34 L
Temperature Range -180°C to +50°C
Cabinet Material Stainless Steel
Exterior Finish Powder-coated Steel
Certifications/Compliance cULus
Display Touchscreen User Interface
Warranty Warranty varies by region. Contact your local sales representative for more information
Model General Purpose without Printer
Sample Loading Front-loading
Dimensions (DxWxH) Exterior 24.3 x 43.3 x 21.7 in. (61 x 109.9 x 55.1 cm)
Dimensions (D x W x H) Interior 13 x 13 x 12 in. (33 x 33 x 30.5 cm)
Data Outputs USB data export
On-Board Datalogging Yes
PC Programmability PC Interface Software Supported
Connectivity Thermo Fisher Connect compatible
Amperage 12 A
Plug Type NEMA 5-15 P
Electrical Requirements 120 V, 60Hz
Vial Capacity <800
Weight (English) 174 lb.
Weight (Metric) 78.9 kg


Thermo Scientific CryoMed Controlled Rate Freezer Testing

This Thermo Scientific CryoMed Controlled Rate Freezer is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application we will do our best to simulate the conditions under which the equipment will be run.

If you have particular testing requirements or requests, please let us know and we’ll work with you to make sure these requirements are addressed during testing.

Pictures

The photos above are representative. The equipment shown is currently in storage in our warehouse. In addition to testing each machine we will clean all the equipment thoroughly prior to shipment.

We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
